180 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Options Module
Options Module

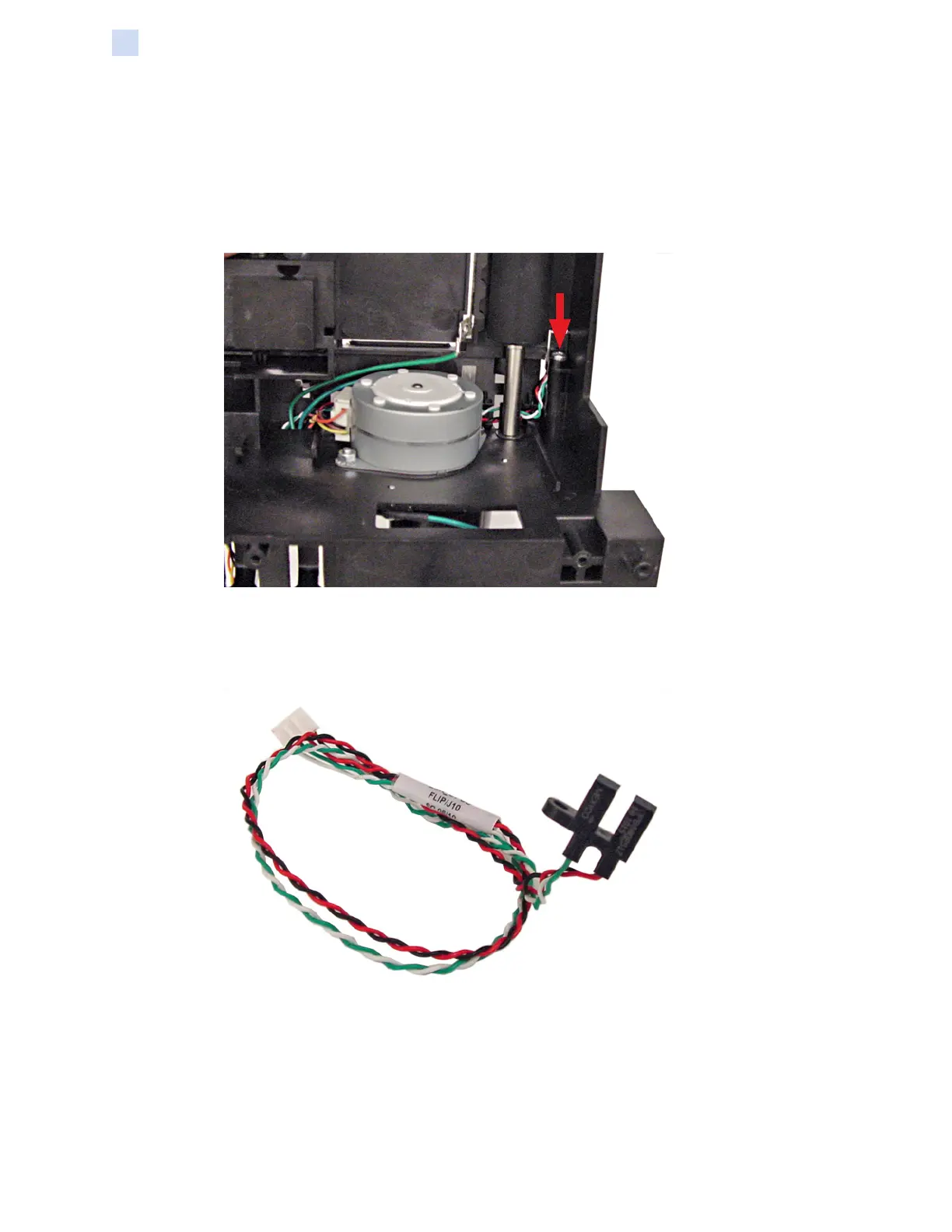

Card Sensor
Step 1. From the bottom of the Options Module: With an 8-inch tapered bit TORX
T10 driver, remove the screw holding the Card Sensor in place.
Step 2. Free the cable from the cable hooks, and then carefully pull the cable and
connector out of the Frame.
Step 3. Set the Card Sensor aside.
