Zebra ZXP 7 series Service Manual

240 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Molded Ribbon Spindle

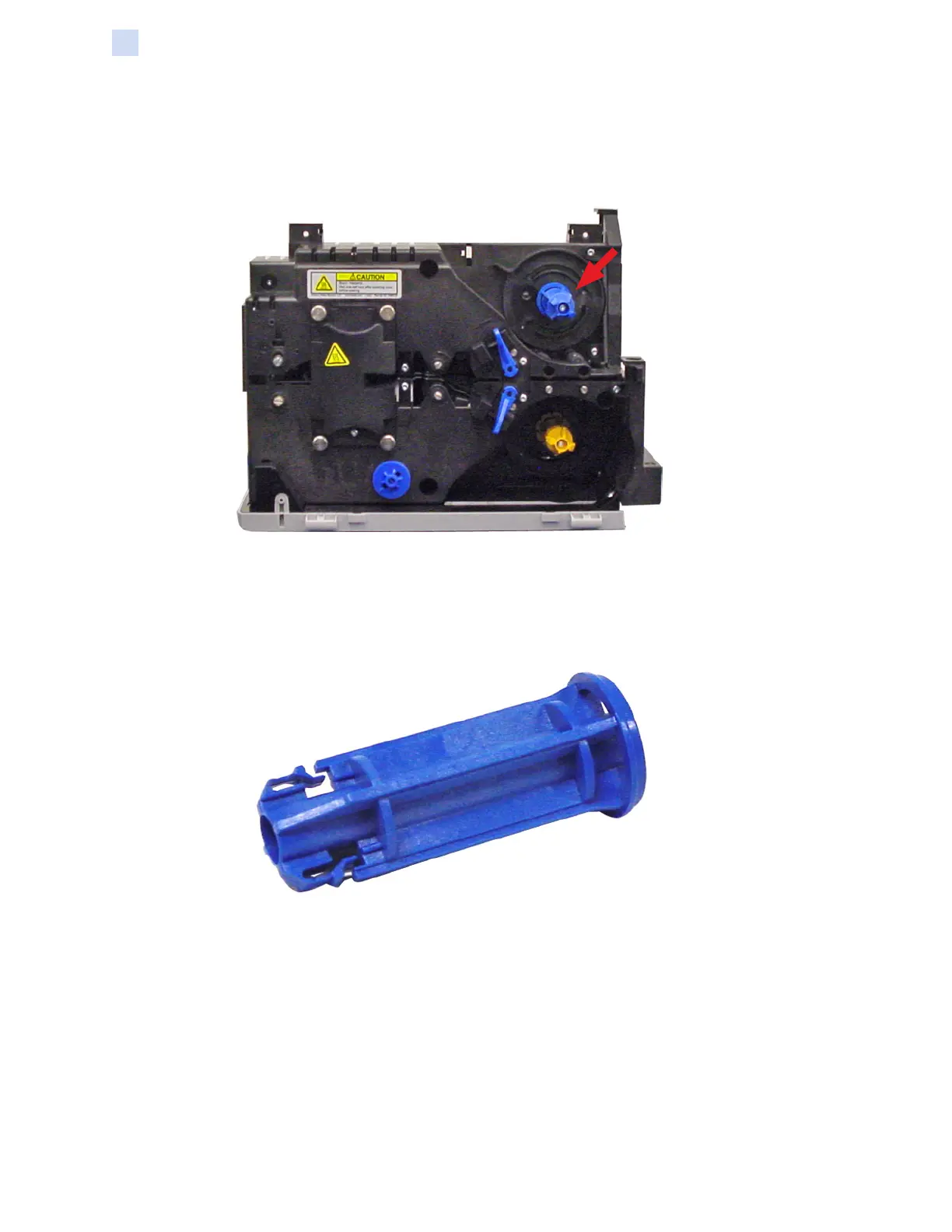

Molded Ribbon Spindle
Step 1. With a TORX T10 driver, remove the screw (arrow below) holding the Molded
Ribbon Spindle in place.
Step 2. Slide the Molded Ribbon Spindle o the spindle shaft.
Step 3. Set the Molded Ribbon Spindle aside.
