P1036102-007 ZXP Series 7 Card Printer Service Manual 255
Replacement Procedures for the Laminator
Procedures: Bottom Laminator Control Motor

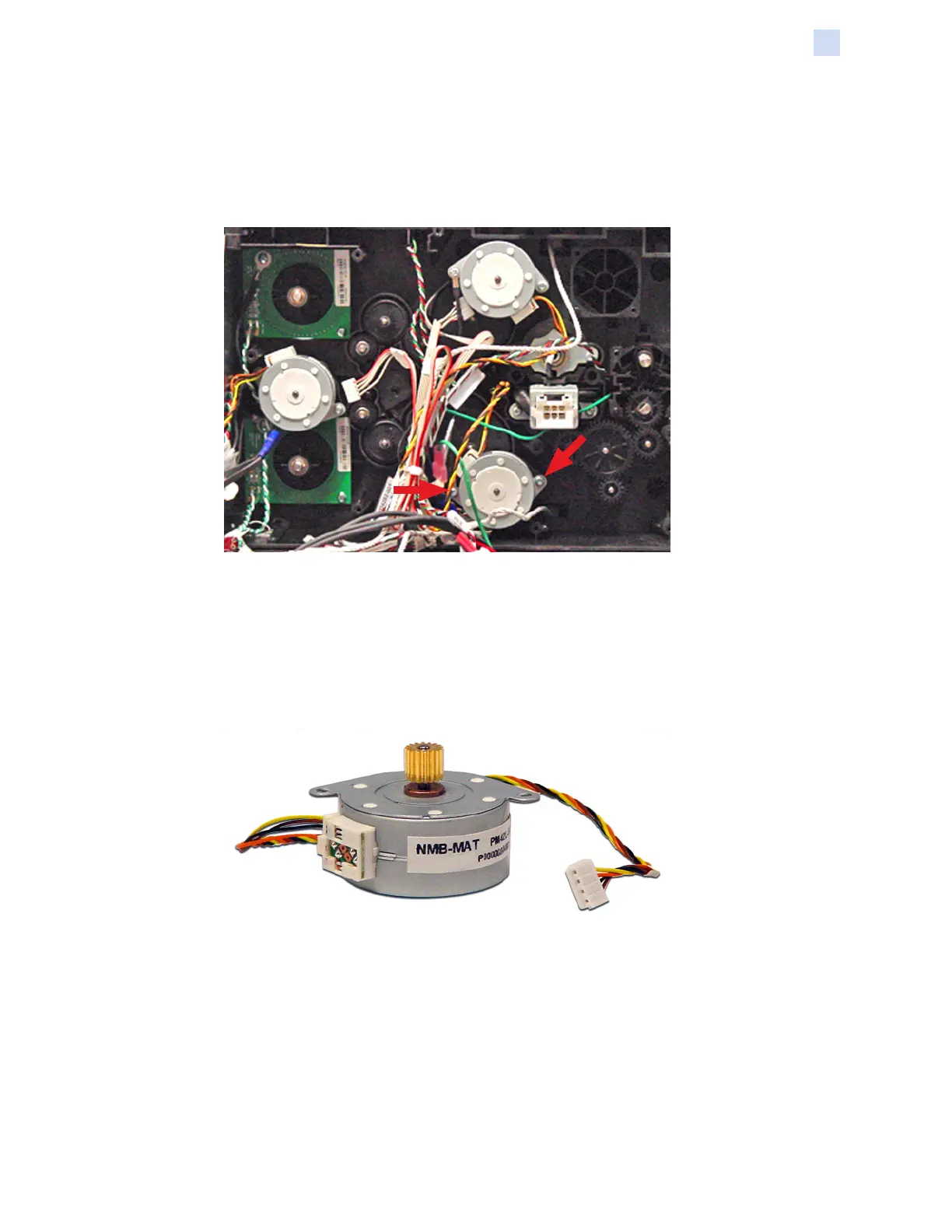

Bottom Laminator Control Motor
Step 1. With a TORX T10 driver, remove the two screws holding the Bottom
Laminator Control Motor in place. Note that the left-hand screw connects a
ground wire.
Step 2. If not already disconnected, disconnect the motor plug from J19.
Step 3. Cut the associated cable ties, and remove the Bottom Laminator Control
Motor.
