34 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Feeder Cartridge

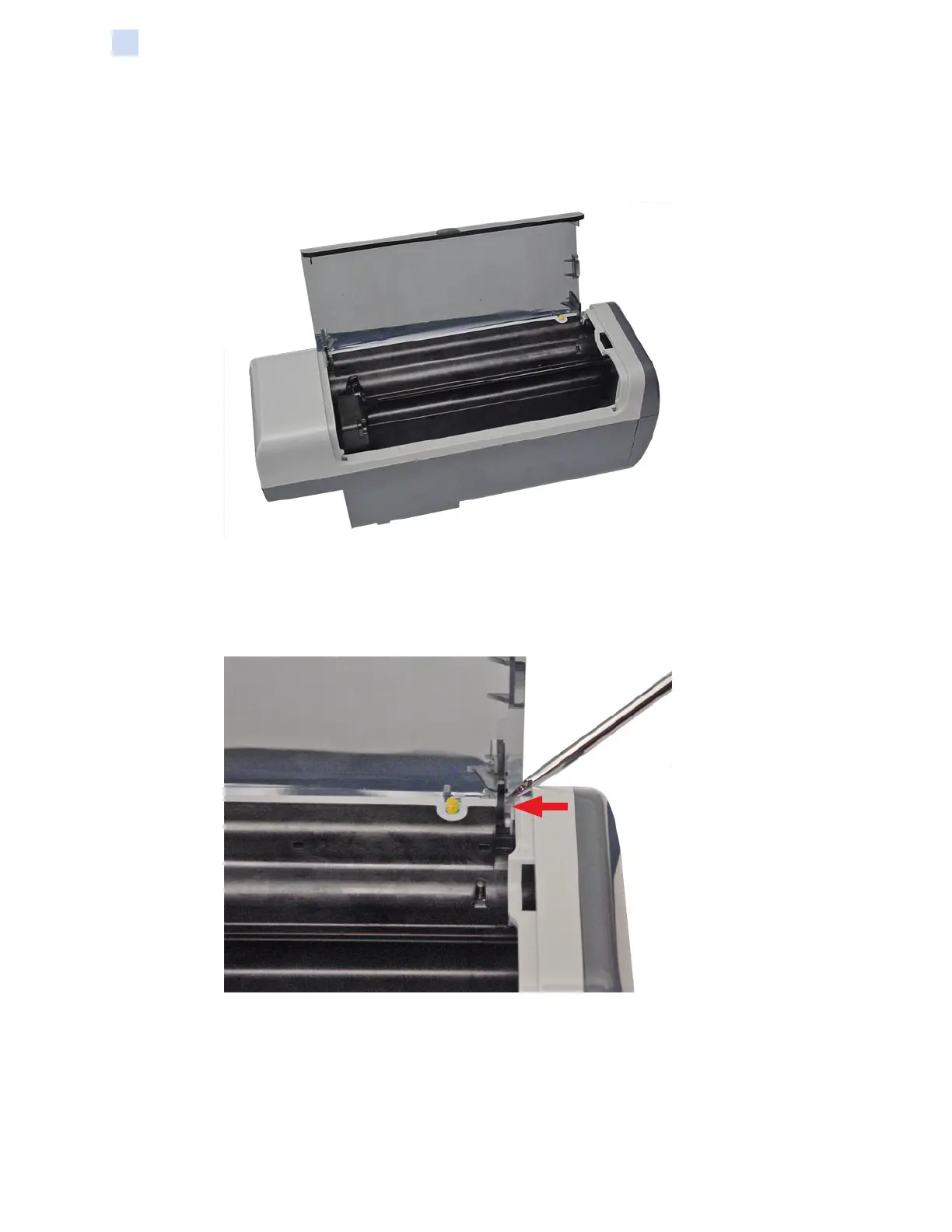

Feeder Cartridge
This is the replacement kit for the Standard Feeder Cartridge (i.e., the entire
assembly).
Feeder Cartridge Cover
Step 1. With a Flat-blade screwdriver, carefully press the pivot arm in (arrow below)
to free the tab and thereby releasing the Feeder Cartridge Cover.
To Next Page
