P1036102-007 ZXP Series 7 Card Printer Service Manual 145
Replacement Procedures for the Printer
Procedures: Ground Plate
Ground Plate

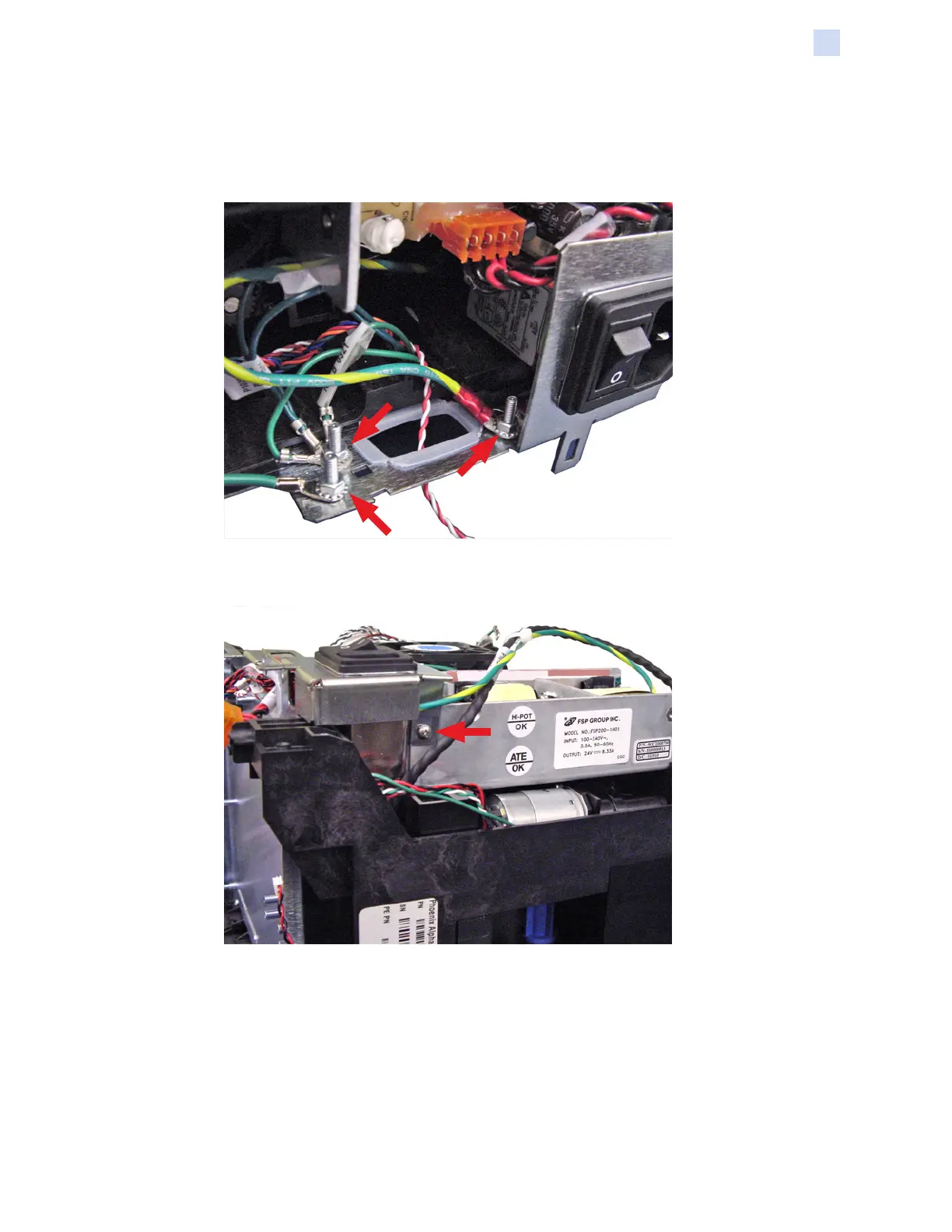

Step 1. With a 5.5-mm nut driver, remove the three nuts (arrows below) holding the
grounds to the Ground Plate; and remove the grounds.
Step 2. With a Phillips #1 screwdriver, remove the screw holding the Ground Plate to
the Power Supply.
