108
DRIVE OF AGRICULTURAL MACHINERY
FH13N005
REAR PTO SHAFT REVOLUTIONS PRESELECTION LEVER

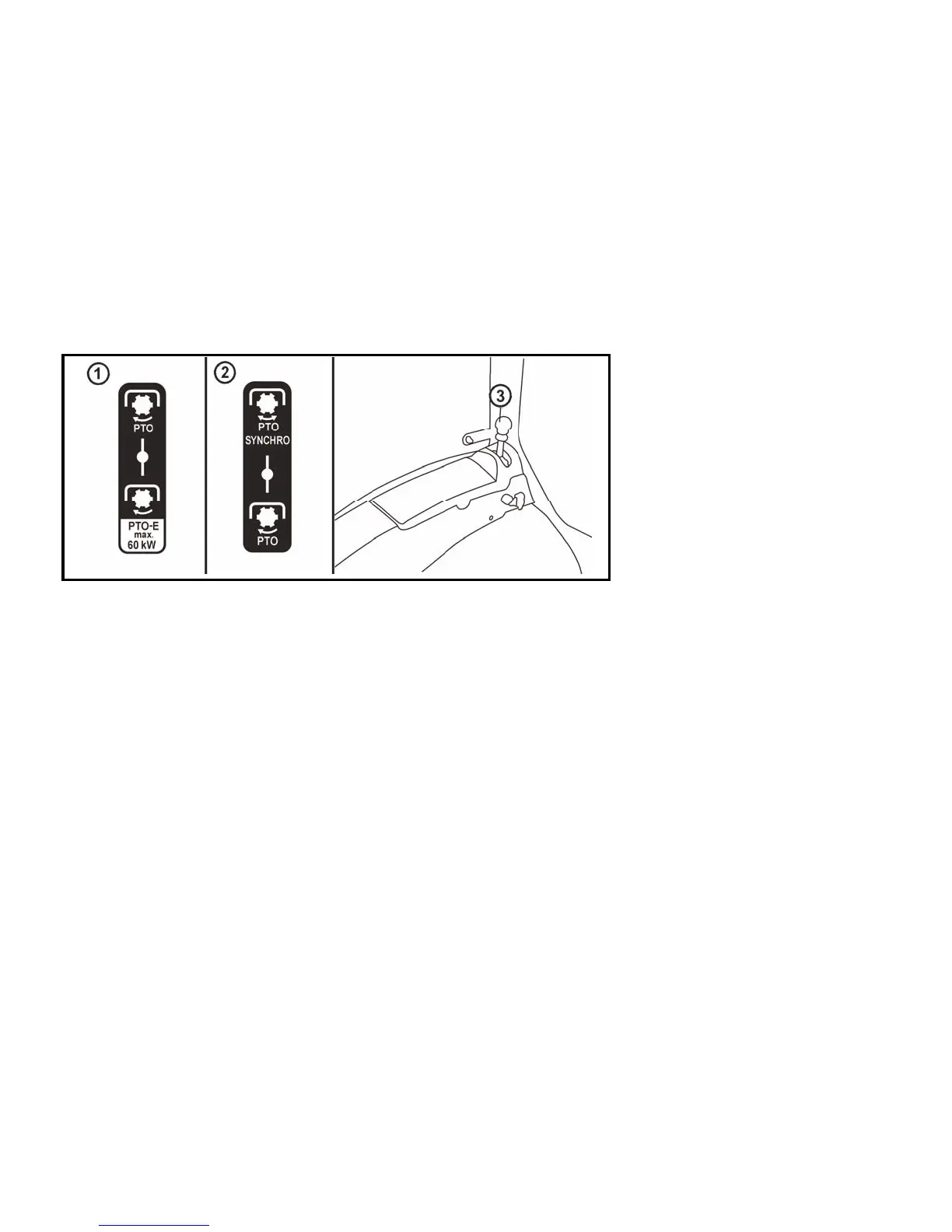

The tractor may be equipped with one of two systems of rear PTO shaft revolutions preselection. The system used in the tractor is
marked on the label placed by rear PTO shaft revolutions preselection lever.
1. Standard and economical independent revolutions of rear PTO shaft- label (1)
2. Dependent and independent revolutions of rear PTO shaft- label (2)
Rear PTO shaft revolutions preselection lever (3) is located on the right side of driver’s seat.
Independent rear PTO shaft revolutions- number of revolutions is dependent on the number of engine revolutions
Dependent rear PTO shaft revolutions – number and the direction of revolutions is dependent on the engaged gear and reversing
lever position.
