HYDRAULIC SYSTEM
FH12N048
HYDRAULIC DISTRIBUTOR OF THE OUTER HYDRAULIC CIRCUIT

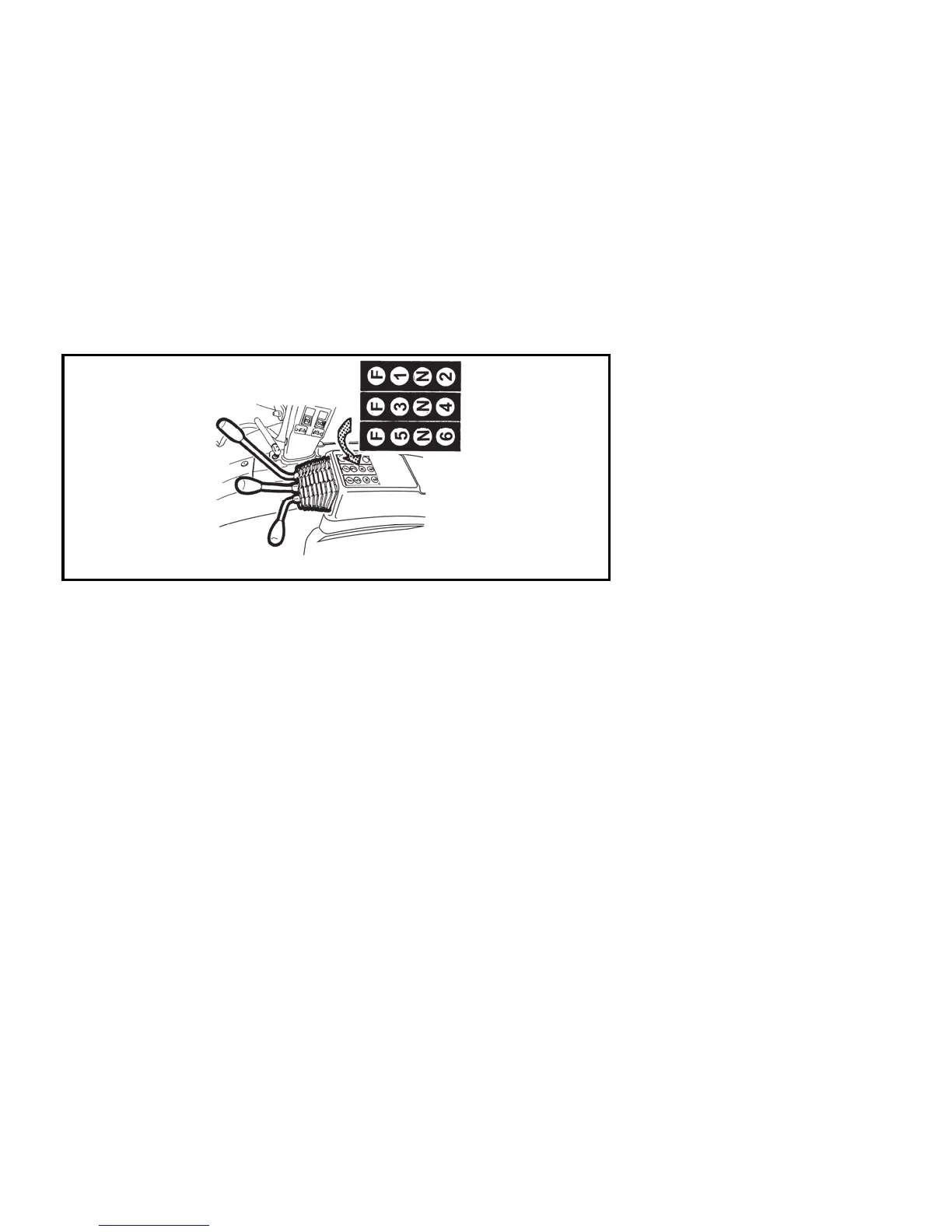

A three-section or two-section distributor with four-position sections may be installed
in the tractor. The control levers of the sections are installed in the cab on the fender
of the right rear wheel. The first (right) section of the distributor is equipped with lock-
ing in pressure positions with hydraulic securing. In the case of the two-section and
three-section distributor it is the section controlling quick-couplers “1” and “2”. Outlet
“4” of the two-section distributor and “4” and “6” of the three-section one is additional-
ly equipped with a check valve - used for the connection of a working branch of the
machine with an increased requirement for leakproofness - minimum lowering of the
implement e.g. during transport.
