SELECTION SWITCH OF REAR PTO CLUTCH REVOLUTIONS (P.T.O.)

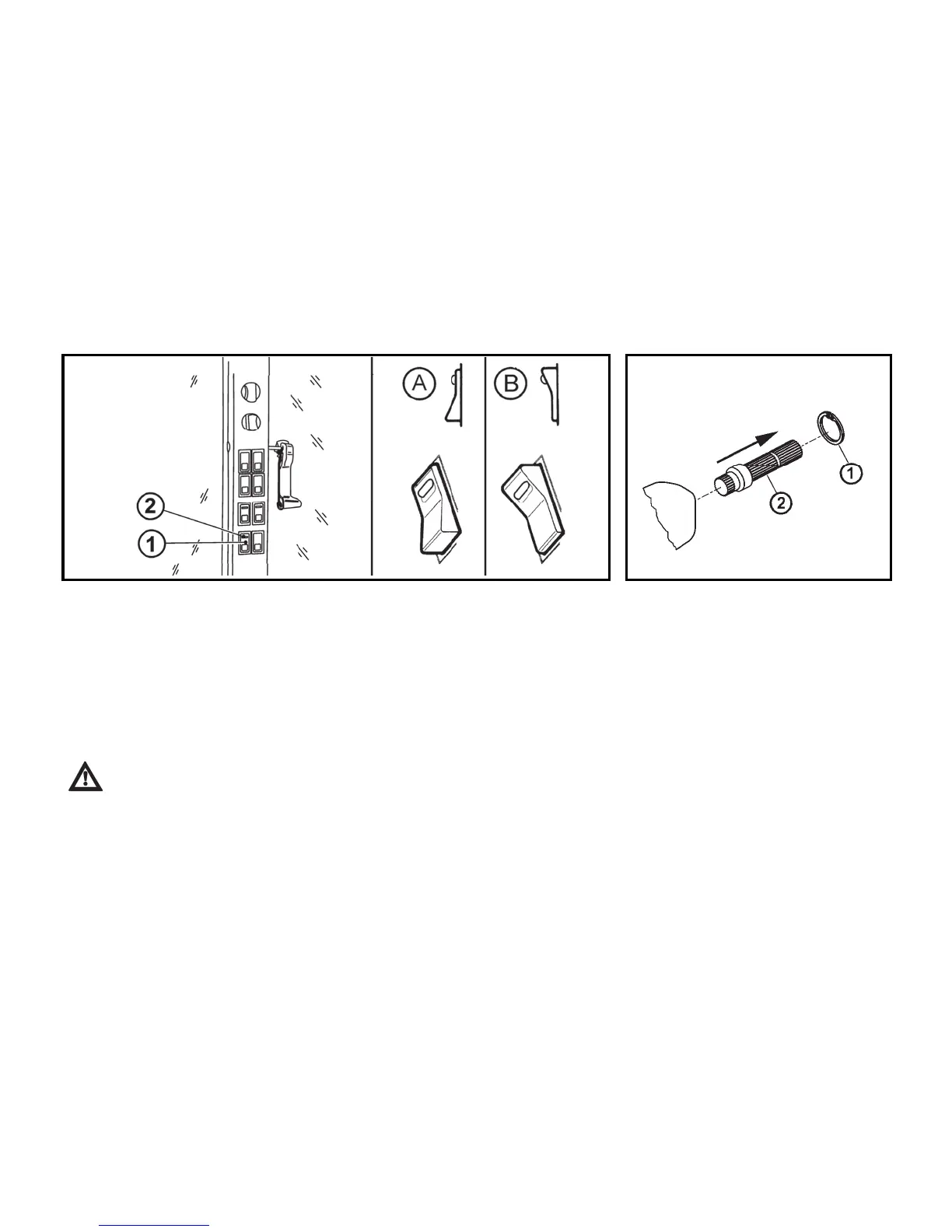

Shifting rear PTO shaft revolutions is done by a switch (1) placed on the right column
of the cabin. The switch is equipped with a mechanical lock (2) against unwanted
switch. When switching the switch, depress the lock in downward direction.
A -
540 rpm
B -
1000 rpm
The change of PTO shaft revolutions - 540 and 1000 per to be done only
with PTO shaft at halt!
Check that the revolutions of PTO shaft are set accordingly with regard for the
connected tools!
REPLACEABLE END POINTS OF
REAR PTO SHAFT
The tractor is equipped with six or twen-
ty-one splined replaceable end point of
rear PTO shaft.
Replacement procedure:
1. Use safety ring pliers to demount a
safety ring (1)
2. Remove replaceable end point by
pulling in the direction of an arrow
(2)
3. Mount the end point in an opposite
way, pay increased attention to the
mounting of the safety ring (1)
