100
TRANSPORTATION
D201 D202 E304

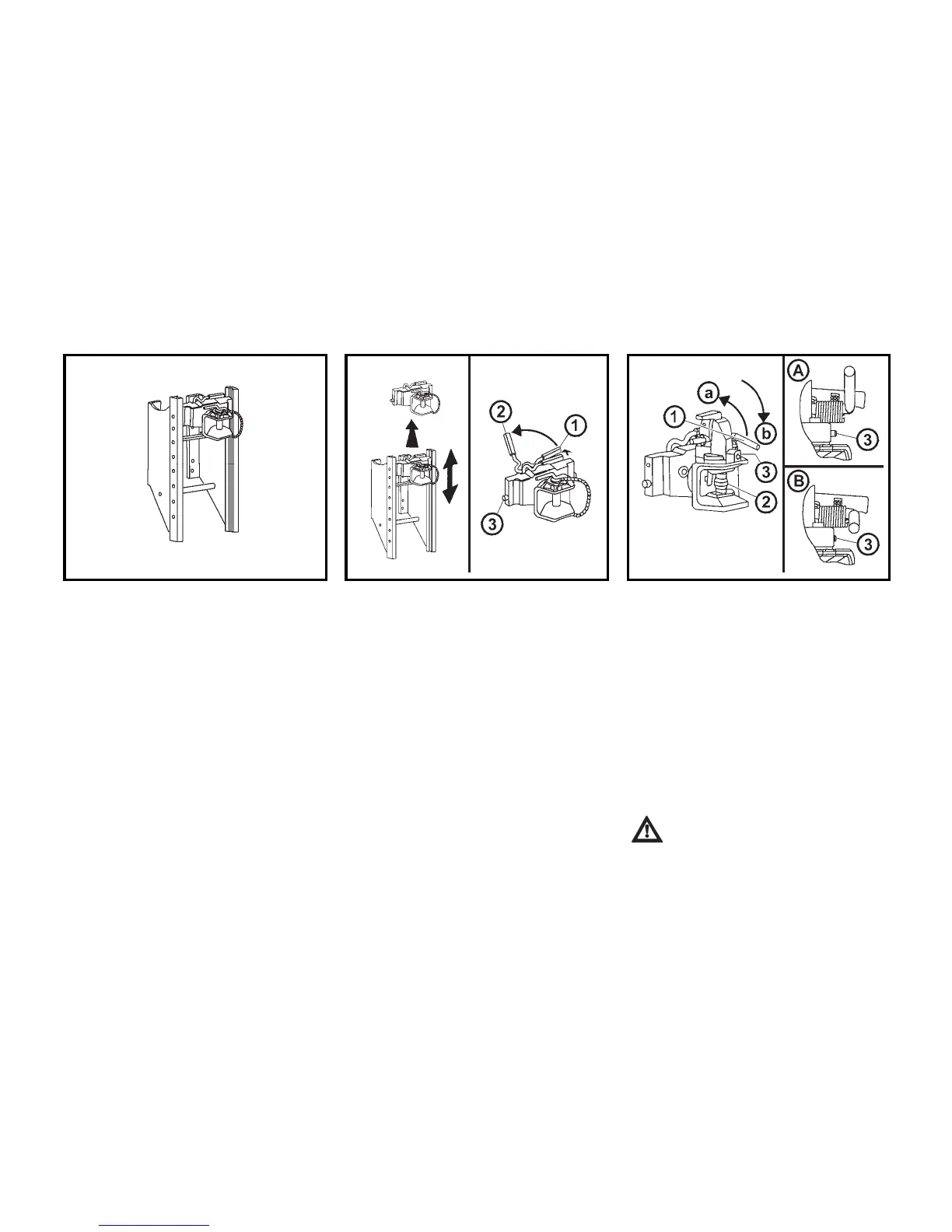

CBM STAGE QUICK-ADJUSTING
HITCH
It is designed for attachment of double-
axle trailers or lighter single-axle semi-
trailers. The guiding mouth is height ad-
justable. During work with various im-
plements it may be necessary to adjust
the height of the hitch or to disassemble
the entire hitch.
HEIGHT ADJUSTMENT AND
DISASSEMBLY OF THE CBM STAGE
HITCH
By moving the control lever in the arrow
direction to position (1) you will release
the lever and by moving it subsequently
to position (2) you will retract the locking
pins (3). Now, the stage hitch is released
and you can adjust its height or disas-
semble it.
When you release the lever from position
(2), the locking pins (3) will extend and
the lever will automatically return to the
initial position.
AUTOMATIC MOUTH OF THE CBM
STAGE HITCH
When the lever (1) is moved in the direc-
tion of the arrow (a), the pin (2) is retracted
to the upper position, which is signalled by
the extended indicator (3), see fig. (A).
When the mouth gets onto the shaft lug,
the pin will automatically slide into the lug
of the connected trailer. You can lower the
hitch pin (2) manually by moving the lever
(1) in the arrow (b) direction. The insertion
of the pin is signalled by the retracted indi-
cator (3), see fig. (B).
After the attachment of the trailer
you must always check whether
the indicator (3) is retracted in ac-
cordance with fig. (B).
