ELECTRO-HYDRAULIC SYSTEM
F_02_98 FH12N001 F_02_65
USING THE REAR CONTROL
The rear control is used to connect and
disconnect implements. The lifting
switching lever (1) on the EHR-B electro-
hydraulic control panel must be in posi-
tion (b) or (c). The designation symbols
of buttons on both the tractor fenders
correspond to the movement direction of
the three-point hitch after their pressing.
The movement only lasts as long as the
button is held.
Every use of the rear control causes
blocking of the control system and the
“Blocking cancellation” must be repeated
- see page 130.

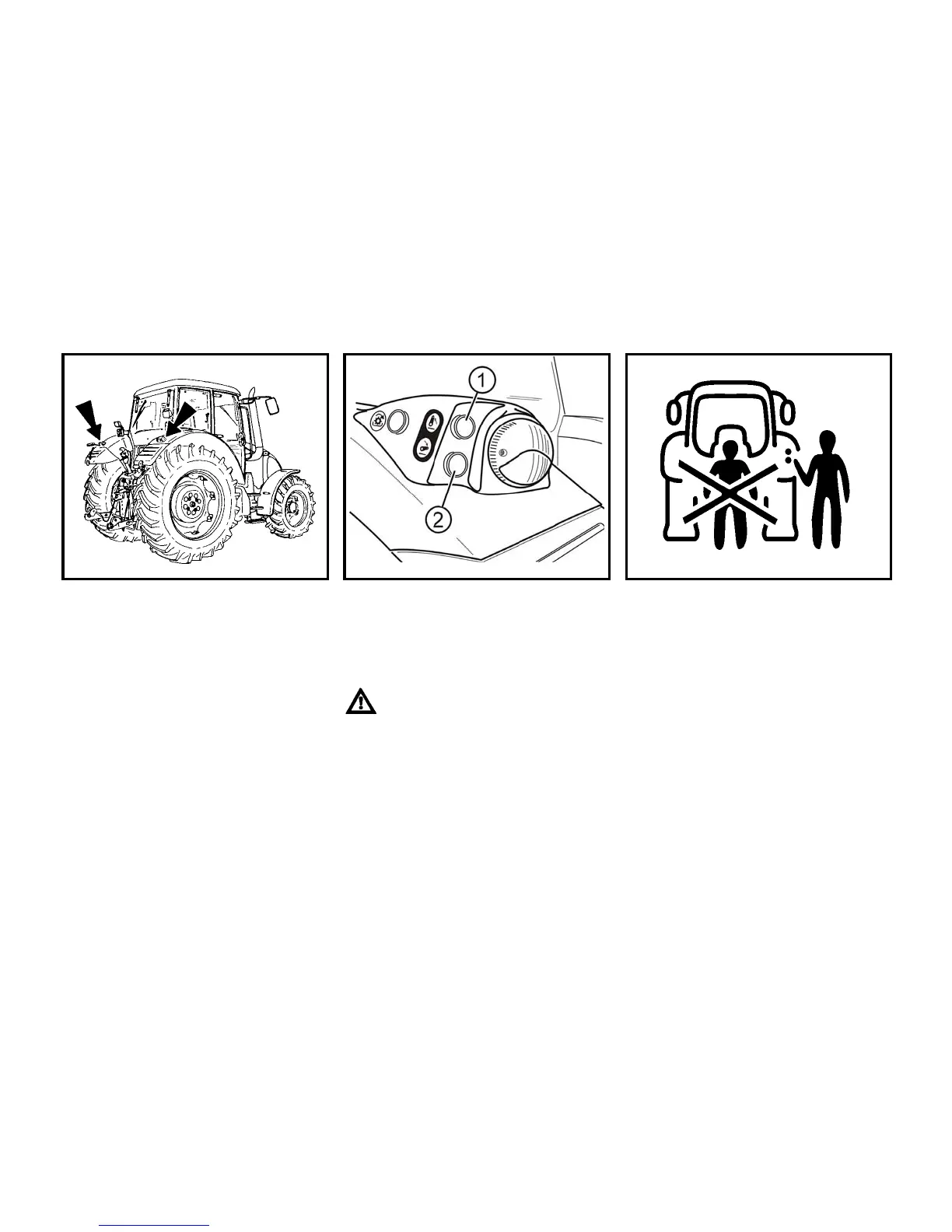

EXTERNAL CONTROL BUTTONS OF THE ELECTRO-HYDRAULIC SYSTEM
1. Lifting
2. Lowering
The movement only lasts as long as the buttons are held.
External hydraulic control buttons are functional also without previous activa-
tion of electrohydraulics even in case of electrohydraulics blockage for the
reason of possible failure.
Control the arms of the rear three-point hitch by external electrohydrau-
lics buttons only at the lower half of arms lift.
When handling the three-point hitch with the external control buttons the op-
erator must stand out of reach of the connected implement to avoid being
caught or injured by the implement.
