ACQUAINTANCE WITH THE TRACTOR
F13HBN001

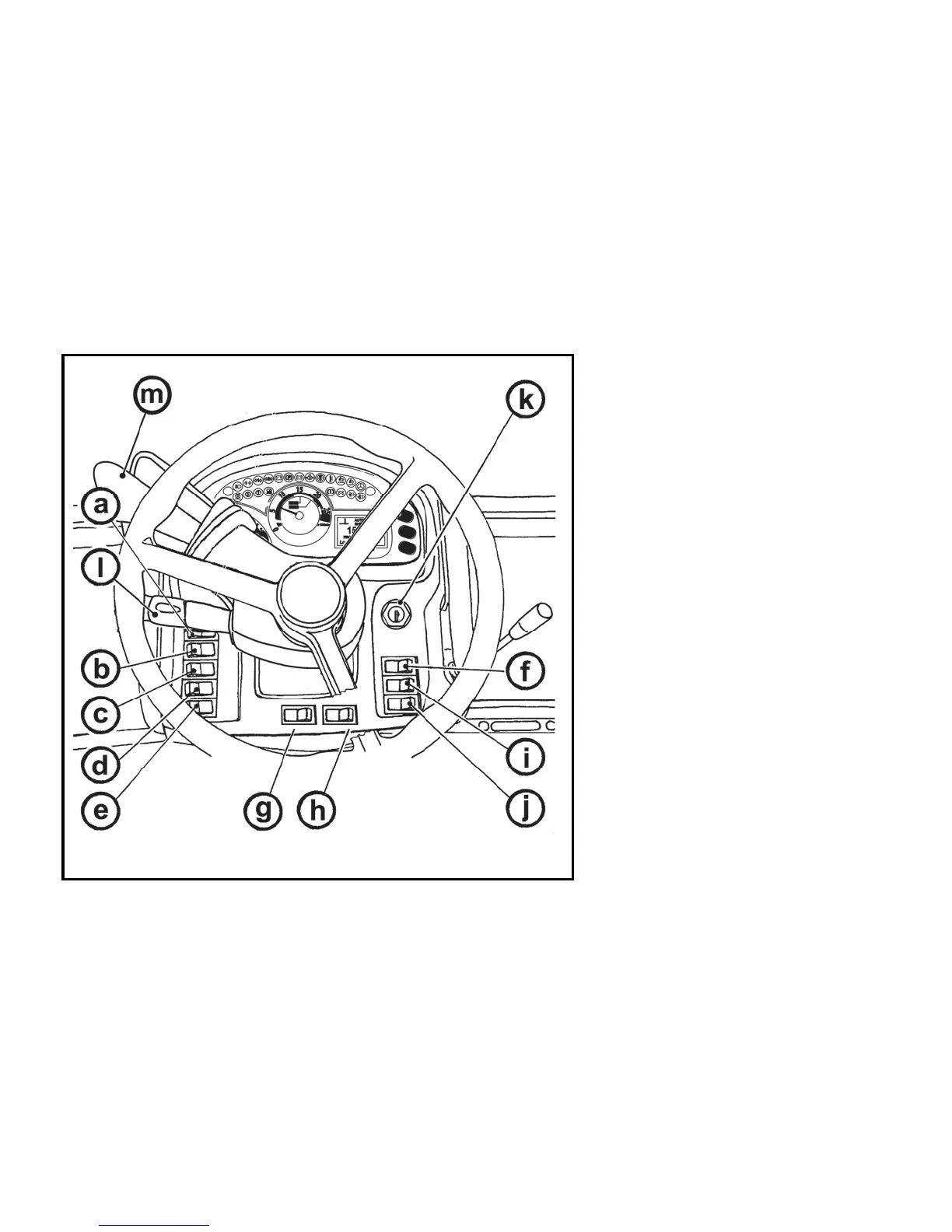

SWITCHES AND LEVERS
a - Lights switch (off, parking, head)
b - Lower beam lights in the grill of the tractor
and working lights in the cabin of the tractor
switch
c - Fog light switch (off - on). Fog light function
is signalized by a lit symbol on the switch.
d - Working lamp switch (off - on). Working
lamp function is signalized by a lit symbol
on a switch.
e - Warning lights switch
f - Front drive axle button. Engaged front
drive axle is signalized by lit symbol on a
switch.
g - Beacon switch (off - on)
h - Working lights in the grill of the bonnet
switch (off - on)
i - Preselection of torque multiplier switch
j - Differential lock button
k - Switch box
l - Direction lights, lower beam head lights,
head lights and horn switches acoustic and
light
m - Reversing lever (forward, neutral, back-
ward)
