DRIVE OF AGRICULTURAL MACHINERY
F_02_64 FH13N019 FH12N009
FRONT PTO SHAFT
Front PTO shaft is equipped with a solid
six or twenty-one splined end point and it
comes only in design of 1000 revolu-
tions.

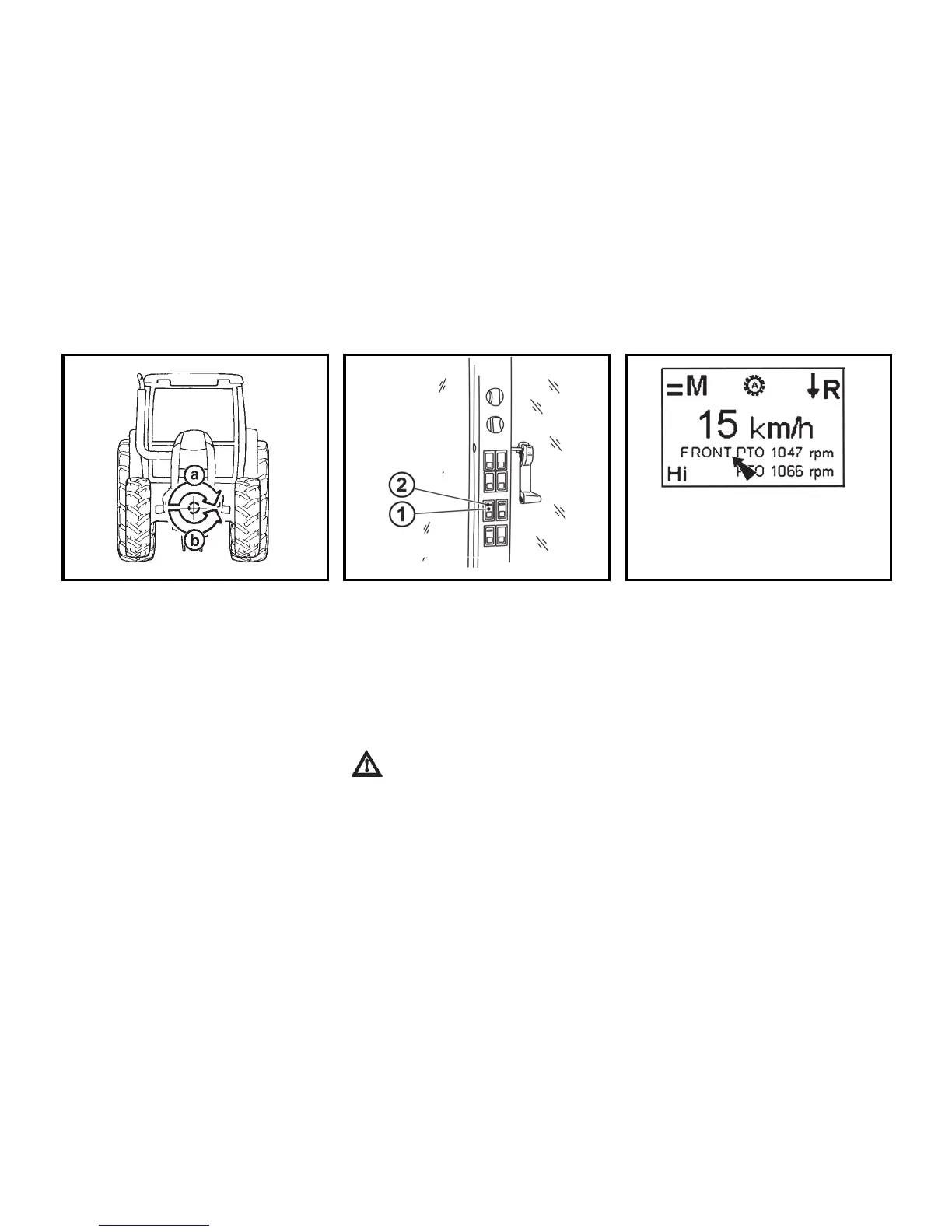

Tractor may be equipped with front PTO
shaft with varied direction of spinning:
a -
In compliance with the direction
of engine revolutions (standard)
b -
Against the direction of engine
revolutions ( on request)
FRONT PTO SHAFT CONTROL
Engagement and disengagement of front PTO shaft is done by a switch (1) placed on
the right column of the cabin. The switch is equipped with a mechanical lock (2)
against unwanted switch. When switching the switch depress the lock in the down-
ward direction.
Front PTO shaft is set into activity by switch of a switch.
The engagement of front PTO shaft is signalized by displaying the number of revolu-
tions of front PTO shaft on the display of dashboard.
If the aggregated machine permits, engage front PTO shaft with min.
engine revolutions of 1500 rpm.
