173
ELECTRIC INSTALLATION

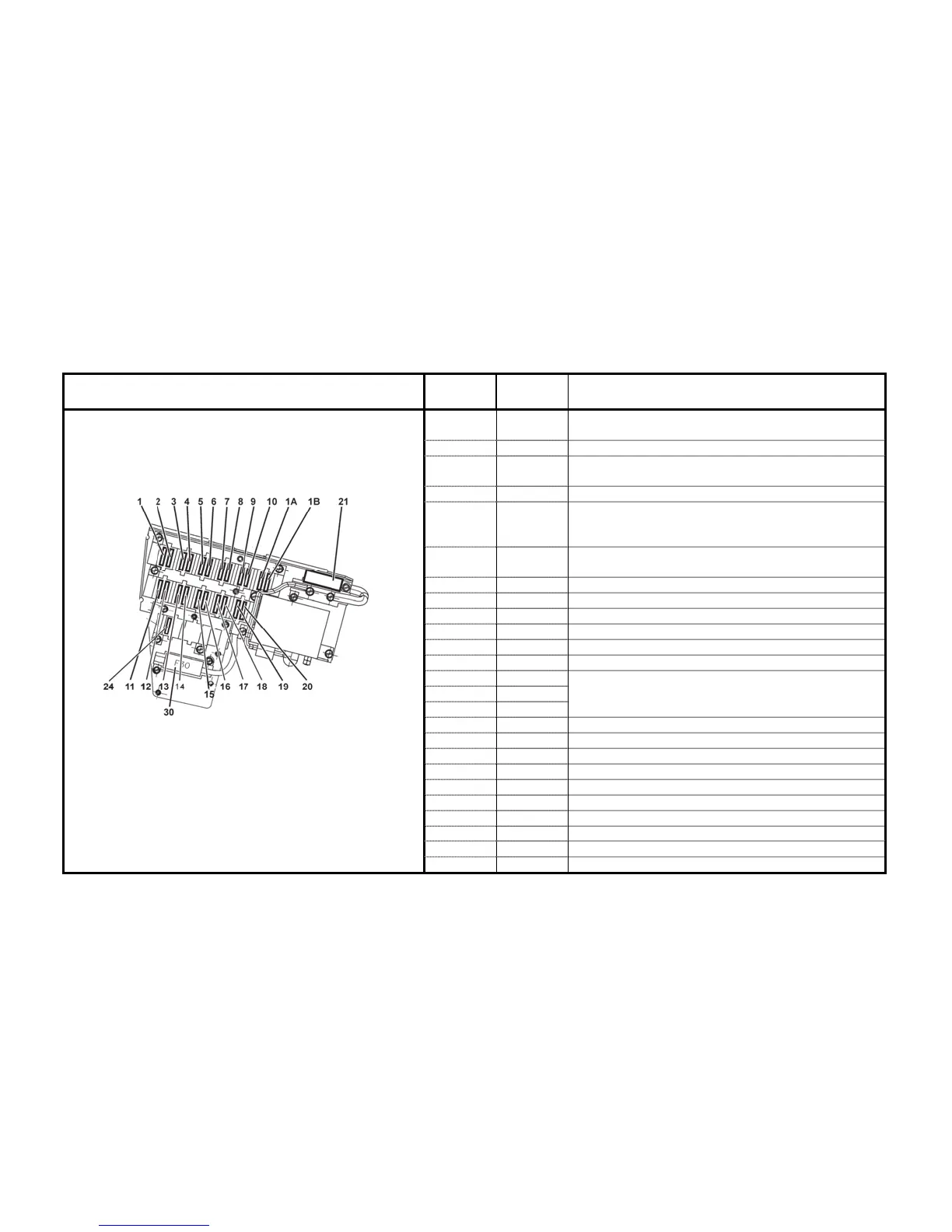

PLACEMENT OF FUSES IN FUSE BOX
Positions of fuses in the fuse box Pos. Fuse
size
Protected system
F13HBN003
1 15A Warning lights chopper
Brake lights
2 15A horn, beacon
3 15A Dashboard feeding, EHR control and engine ignition
4 15A Lower beam headlights with a switch
5 15A Left side lights, dashboard illumination, licence label illu-
mination
6 15A Right side lights, rear working light with a control
7 15A Right dipped lights, fog headlamp with a control
8 7,5A Left dipped lights, lights control in a grill/roof of tractor
9 15A Working lights in bonnet grill
10 3A Front PTO shaft
1A 15A Diesel particle filter, CAN-bus socket
1B 20A brake relay control, engine stop
11 15A Front and rear windshield wiper, windshield washer
12 20A Radio, dome lamp
13 15A Recirculation
14 7,5A Air-condition (compressor clutch)
15 15A Mirror heater
16 15A Rear glass heater
17 15A Driver´s seat compressor
18 20A Three-pin socket
19 15A Front working headlight in the roof
20 15A Rear working headlights in the roof
21 80A Ignition
24 15A ECU gear box feeding
30 30A Heating
