38
ACQUAINTANCE WITH THE TRACTOR
F13BN009 F_02_16 F_02_17a

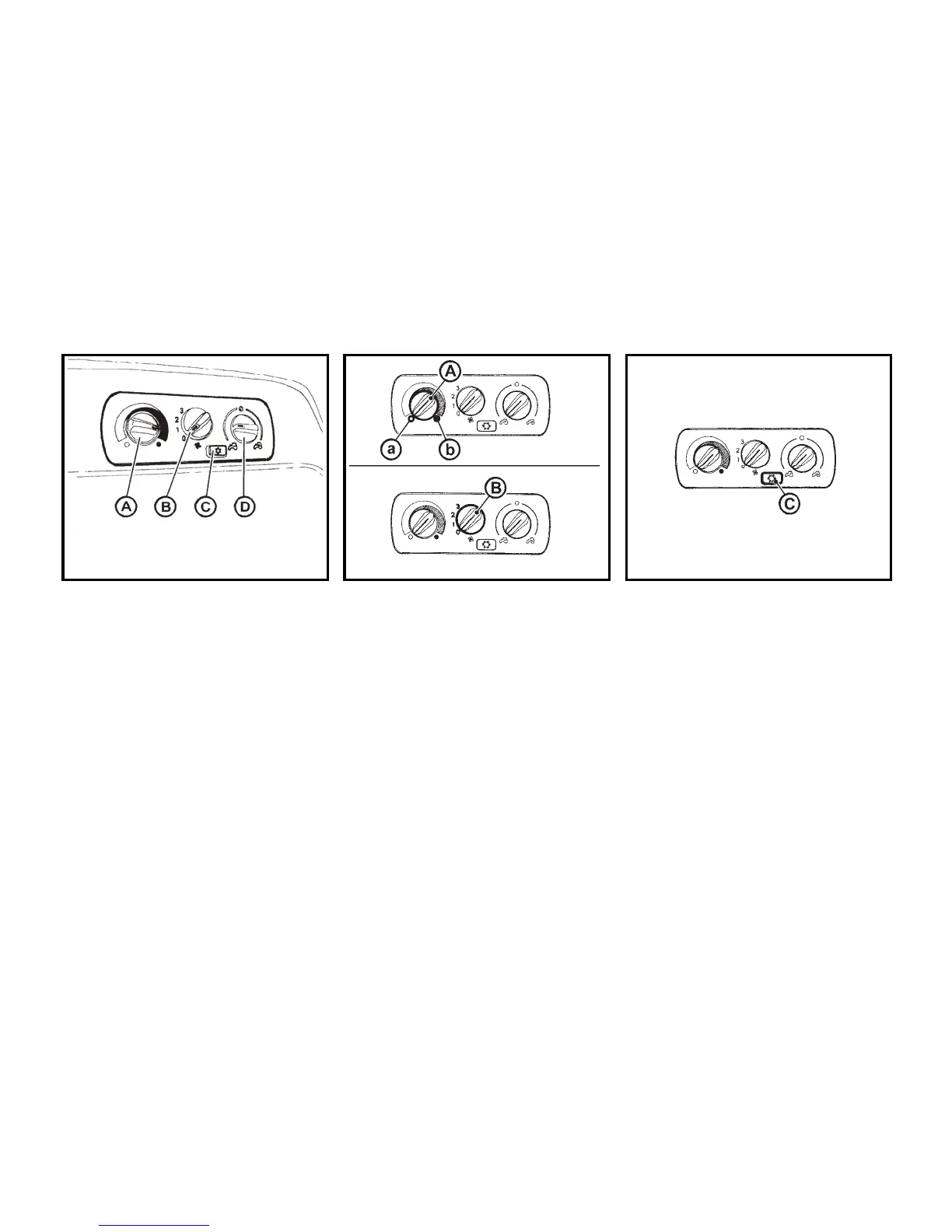

HEATING CONTROL PANEL, AIR-
CONDITION
A - heating valve control
B - ventilator control
C - air-condition switch
D - air circulation in the air of cabin lever
HEATING VALVE CONTROL (A)
a - heating valve closed
b - heating valve opened
VENTILATOR CONTROL (B)
1 - ventilator off
2 - slowly run of ventilator
3 - medium run of ventilator
4 - maximum run of ventilator
SWITCH AIR-CONDITION (C)
Do engagement and disengagement of
air-condition system function by switch-
ing the switch with a symbol of snow
flake (C).
You will set the air-condition system go-
ing by pressing the switch (the symbol of
snow flake lights up).
You will disengage the air-condition sys-
tem by repeated press of switch (snow
flake symbol switches off).
