Zetor FORTERRA HSX 120 User Manual

145
HITCHES

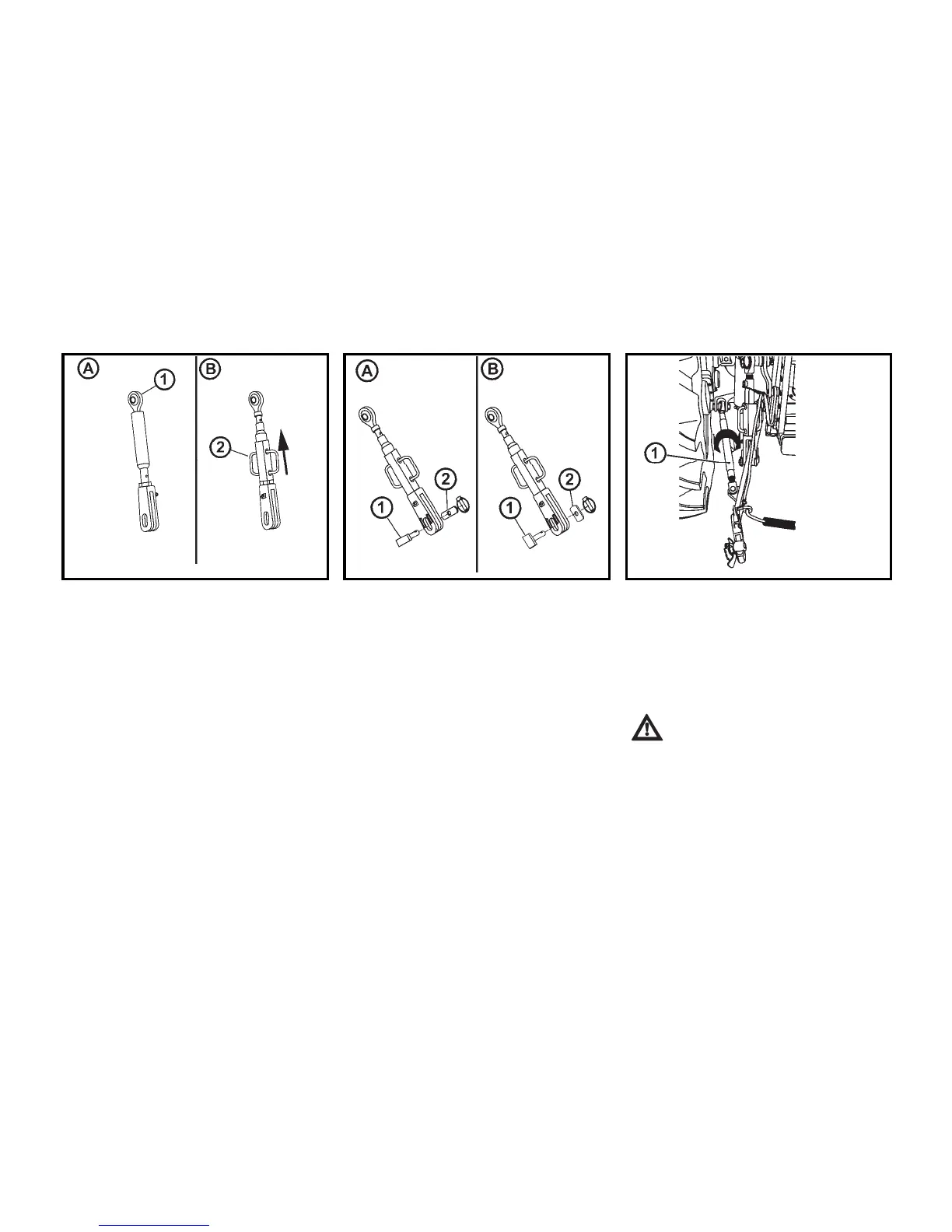

E453 E454 E455
HEIGHT ADJUSTMENT OF THE
LIFTING DRAW-BARS
Lifting draw-bar - see fig. (A):
After disconnecting the upper end of the
lifting draw-bar from the pin of the hydrau-
lic arm make the adjustment by turning
the lug (1).
Lifting draw-bar - see fig. (B):
Extend the capstan (2) in the arrow di-
rection and make the adjustment by turn-
ing the capstan.
Depending on the equipment of the trac-
tor both the draw-bars may be designed
as in fig. (B).
FIXED AND FREE POSITION OF THE
LOWER HYDRAULIC DRAW-BARS
Fixed position of the lower hydraulic
draw-bars (A):
The pin head (1) and washer (2) are in-
stalled horizontally.
Free position of the lower hydraulic
draw-bars (B):
The pin head (1) and washer (2) are in-
stalled vertically.
The free position enables free connec-
tion of the tractor and implement. In this
case both the draw-bar ends may move
freely against each other as regards their
height.
LIMITING DRAW-BARS
The limiting draw-bars - stabilizers (1)
limit or completely prevent lateral swing-
ing of the lower draw-bars.
The adjustment of the left and right limit-
ing draw-bar is performed by turning of
the draw-bar pipe, see arrow.
Both the limiting draw-bars must
always be installed on the tractor.
