146
HITCHES
E459 E460

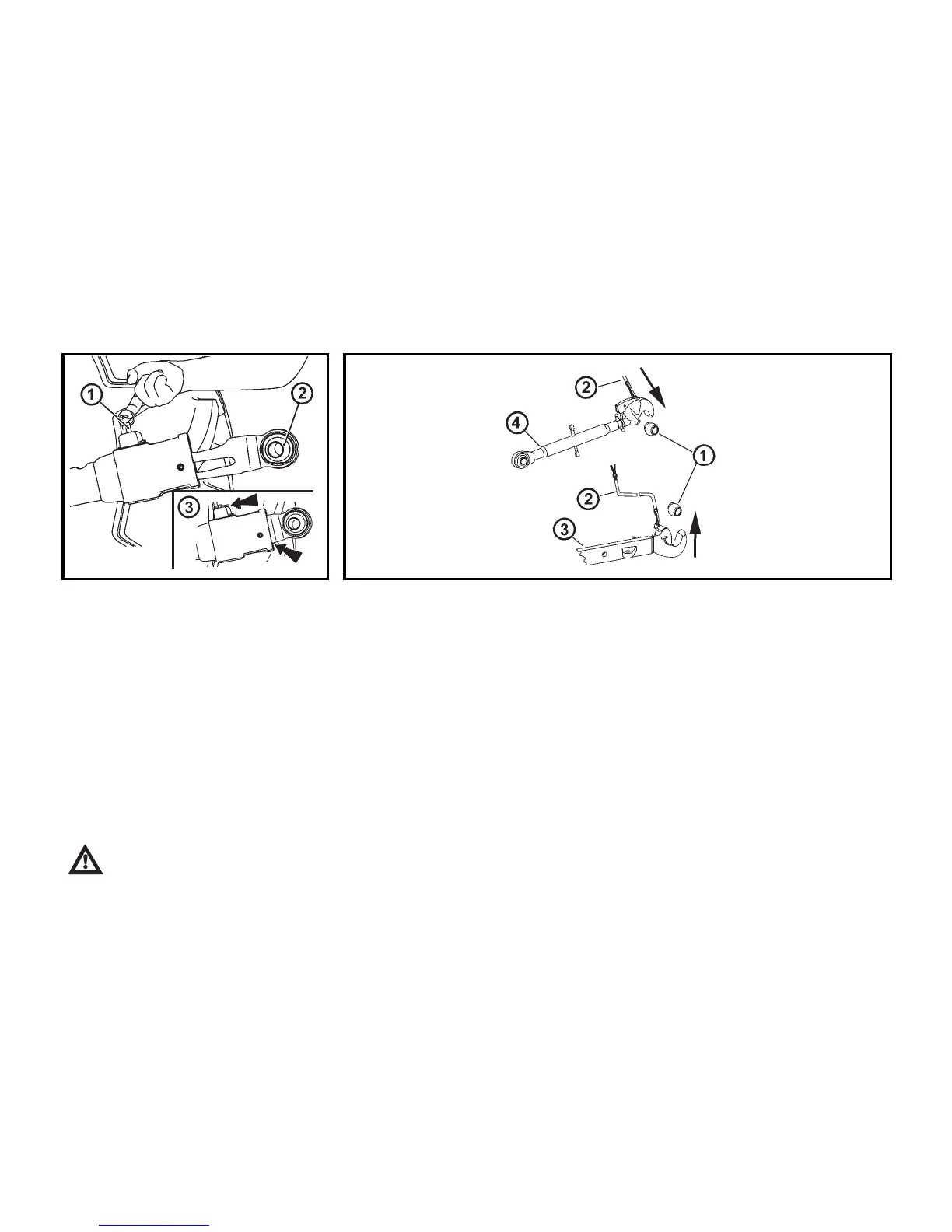

LOWER DRAW-BARS WITH
EXTENSIBLE END PIECES
The lower draw-bars of the hitch are
equipped with semi-automatic extensible
CBM end pieces. They facilitate attaching
of implements to the tractor. After removing
of securing pegs (1) extend the end pieces
(2). The extended end pieces are attached
to the fixing pins of the carried implement.
After attaching the carried implement re-
lease the hydraulic arms. By lowering and
the tractor reversing the end pieces (2) will
slide into the draw-bars and will be auto-
matically secured in the working position by
the securing pegs (1).
Always check the position of the
extensible end pieces and the se-
curing pegs, see fig. (3).
LOWER DRAW-BARS WITH CBM HOOKS
The lower (3) and upper (4) draw-bars of the hitch are equipped with CBM hooks.
First, suspension CBM balls (1) must be fitted to the implement and the limiting draw-
bars must be used to set the distance between the lower draw-bars of the hitch (3).
After reversing and subsequent lifting of the three-point hitch its lower draw-bars (3)
are connected to the implement and then the driver connects the upper draw-bar (4)
of the three-point hitch from the cab.
When disconnecting the implement release the hooks, with the control wires (2) lift
the upper draw-bar (4) and by lowering the three-point hitch disconnect the lower
draw-bars (3).
