36
ACQUAINTANCE WITH THE TRACTOR
FH12N026

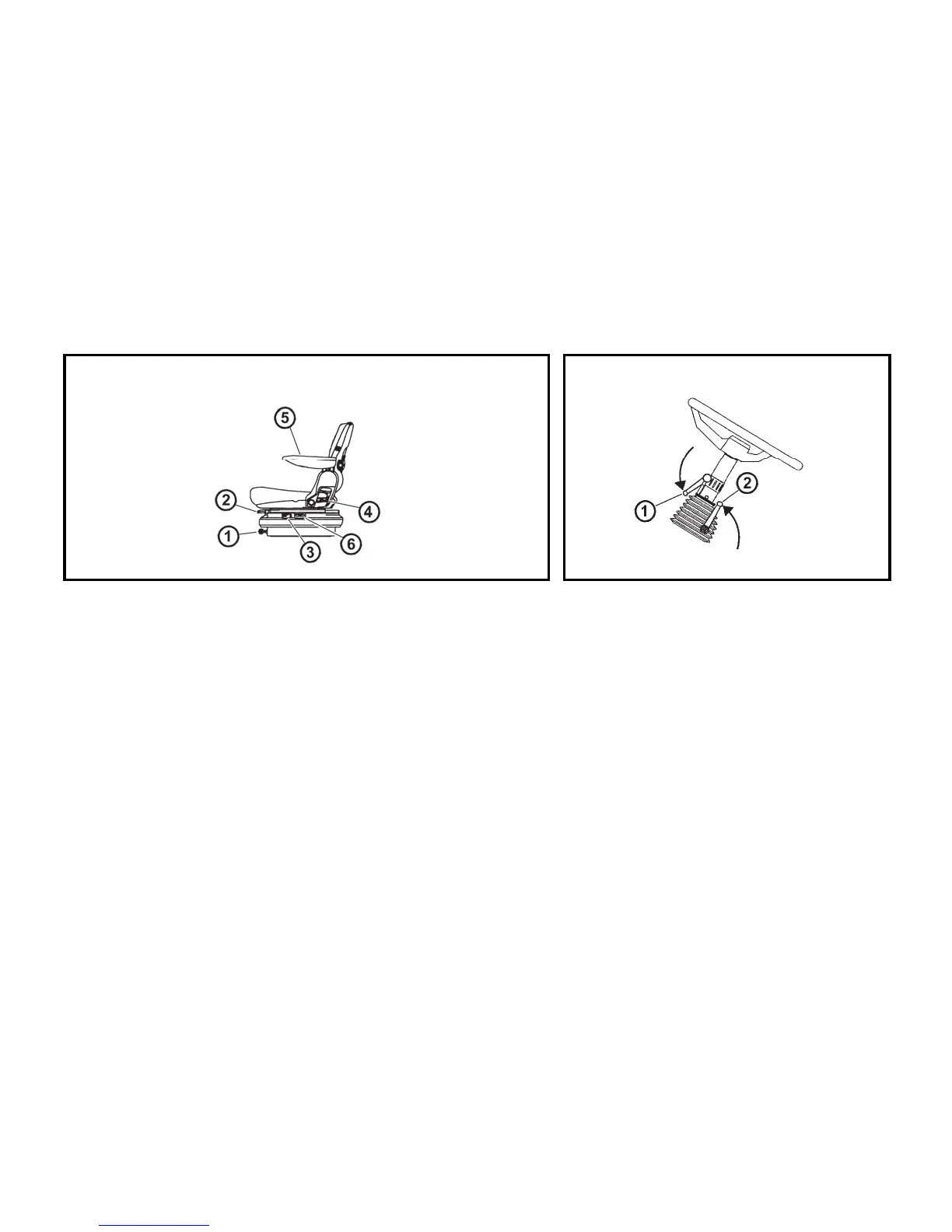

DRIVER´S SEAT
1- The control of setting the seat suspension according to the driver´s
weight (setting by rotation, in the direction according to pictogram on
the boot of the seat)
2- Longitudinal setting of the seat lever
3- Seat vibrations absorption control (by tilt over of the control forward,
floating position of the seat is engaged)
4- Setting the angle of rest control
5- Tilting elbow rest
6- Pneumatic suspension of seat setting control (by pulling in the direction
upward, the rigidity of the suspension increases, by pulling in downward
direction, it decreases)
DRIVER´S SEAT WITH MECHANICAL SUSPENSION
Control according to points 1, 2, 3, 4 and 5
Point 2, lever is placed on the right
DRIVER´S SEAT WITH PNEUMATIC SUSPENSION
Control according to points 2, 3, 4, 5 and 6
Point 2, lever is placed on the left
TILTING AND PROTRUSION OF STEERING
WHEEL
Tilting column of steering wheel enables variable
setting of position of the steering wheel both in
terms of angle and height.
Height setting of steering wheel
The setting is done by protrusion or retracting the
steering wheel after unlocking arrestment by turn-
ing a lever (1) in the direction of an arrow. After
setting the steering wheel, lock the lever (1) by
tightening in the direction of an arrow.
Angle setting of steering wheel
Setting is done by tilting the steering wheel after
unlocking the lock by turning the lever (2) in the di-
rection of the arrow. After setting the steering
wheel, secure the lever (2) by retightening against
the direction of the arrow.
