MAINTENANCE INSTRUCTIONS
FH12N078 F11N038 FH12N055
AFTER DRAINING OIL
1. Clean the magnet (it is part of the lid)
and the strainer element of the suction-
ing filter (2)
2. After cleaning screw all the drain
screws back on.
3. Fill oil, start the engine and let it run
for approx. 2 minutes
4. After stopping of the engine and sta-
bilization of the oil level in the gear-
box check its quantity and fill up oil to
the upper edge of the dipstick tab or
if increased filling is necessary, to the
lower or upper mark of the dipstick.

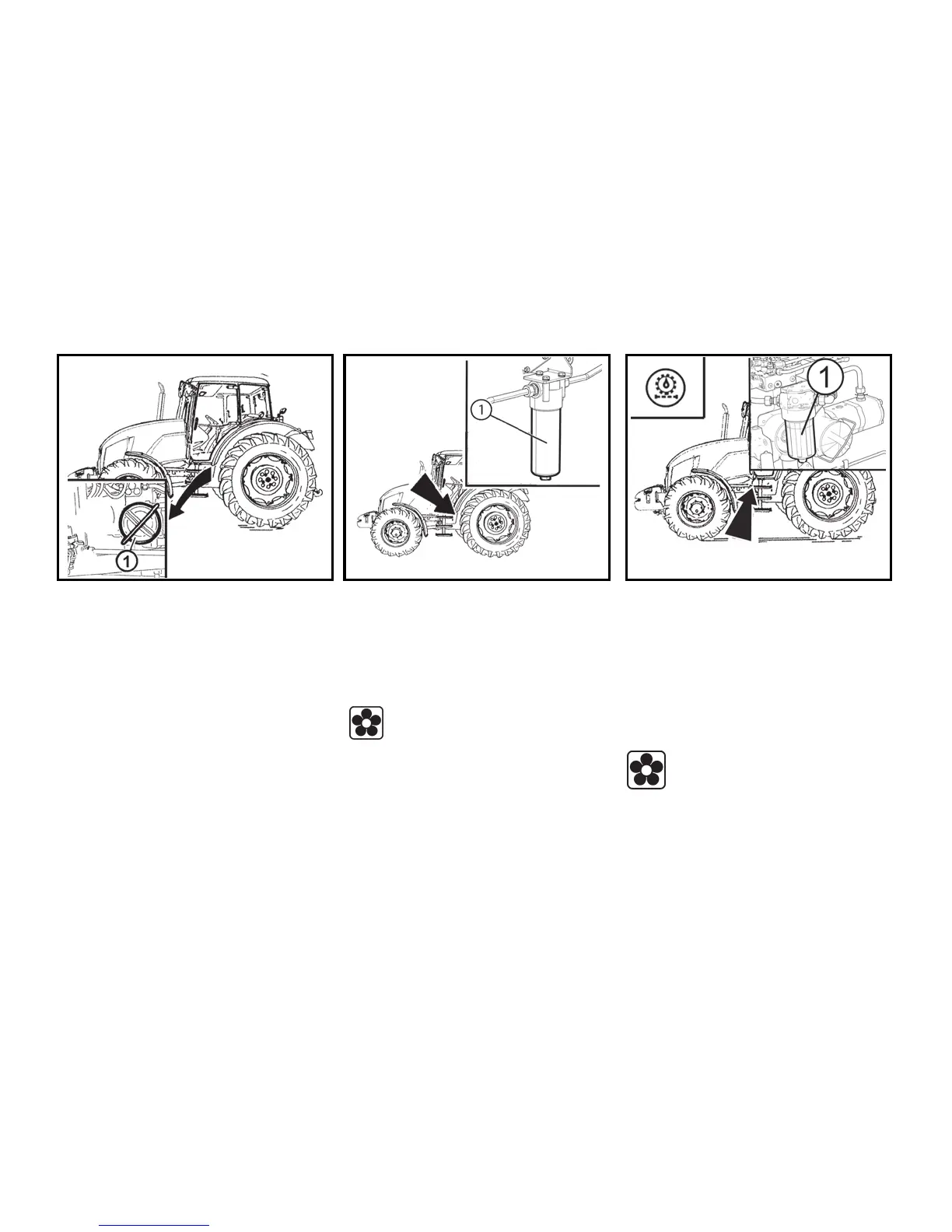

REPLACEMENT OF THE
TRANSMISSION OIL CLEANER
ELEMENT WITH HYDRAULIC PUMP
SUCTION FILTER
The oil cleaner is placed on the left side
of the gearbox.
Before replacing the oil cleaner
element, place a suitable vessel
for dripping oil under the tractor.
1. Unscrew the body of the cleaner (1)
2. Replace the filtration element
3. Reassemble the body of the cleaner
INSERTION PIECE REPLACEMENT OF
THE OIL CLEANER WITH DELIVERY
FILTER OF THE GEARBOX
SWITCHBOARD
Oil cleaner is placed on the left side of
the gearbox.
The cleaner clogging is signalized by a
control on dashboard lighting up.
Before replacing the insertion of
the oil cleaner, place a suitable
vessel under the tractor for catch-
ing the dripping oil.
1. Unscrew the body of the cleaner (1)
2. Replace the insertion filter
3. Do the back assembly of the body of
the cleaner
