MAINTENANCE INSTRUCTIONS
FH12N016 FH12N015
CHECKING THE OIL IN GEARBOX
The height of oil in gear box set is checked by oil level indicator
which is placed at the right rear part of the gearbox behind the
right hydraulic roller.
A - Standard oil filling
Carry out the check always with the engine stopped.
CHECK AND REPLACEMENT OF OIL IN GEAR BOX

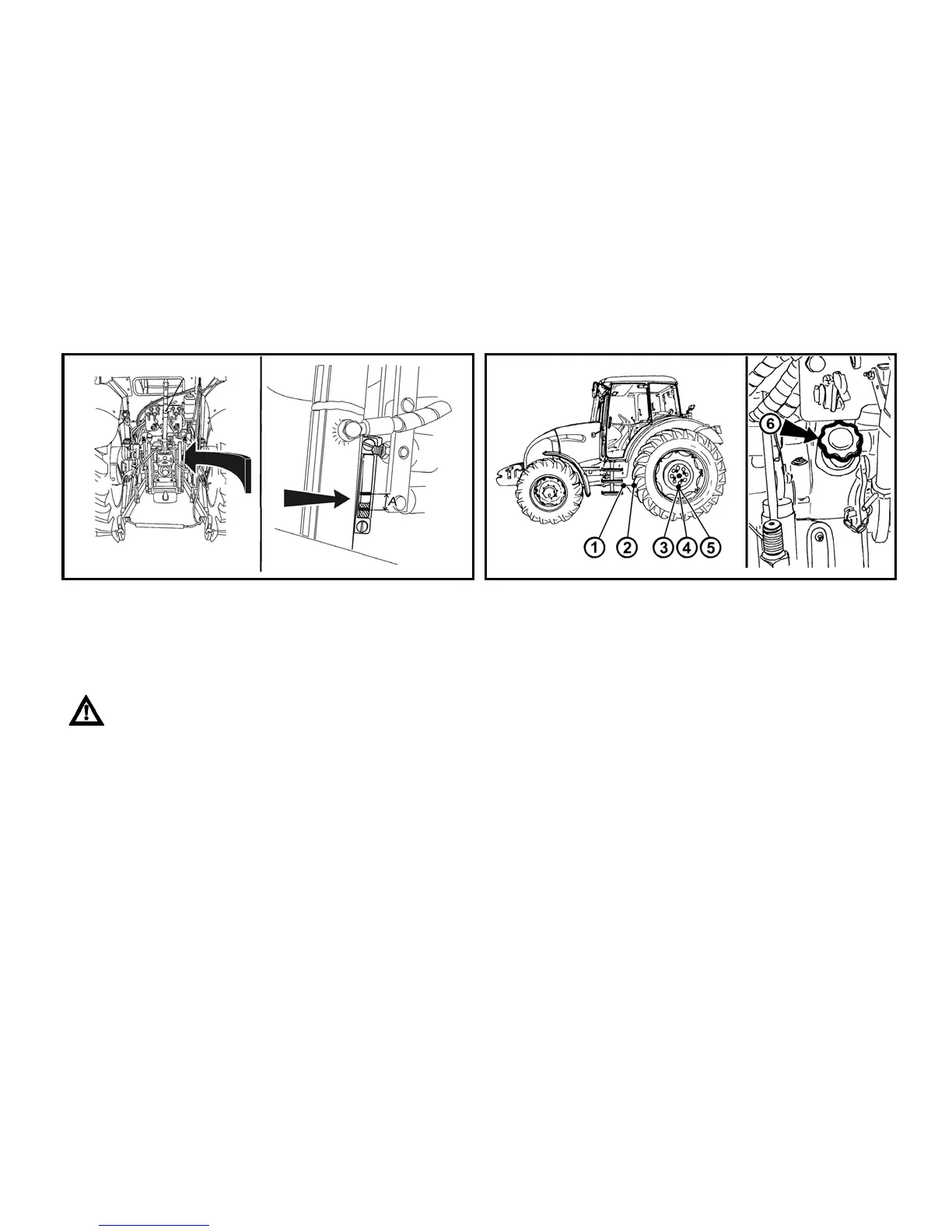

DRAINING AND CHECKING HOLES
1. drain plug of oil from clutch box
2. drain plug of oil from gearbox
3. drain plug of oil from final drive housing
4. drain plug of oil from final drive housing box
5. drain plug of oil from final house driving box
6. Pouring opening for gear oil is placed in hydraulic mecha-
nism housing. Accessible from the rear part of the tractor
