162
BALLAST WEIGHTS
F_02_109 F226
VALVE FOR FILLING TYRE TUBES
WITH LIQUID
All the tubes of the rear wheels are
equipped with a valve that makes it pos-
sible to fill the tubes with liquid with the
use of an adapter.
Filling the tubes of the front tyres
and double mounting of the rear
wheels with liquid is not permit-
ted.

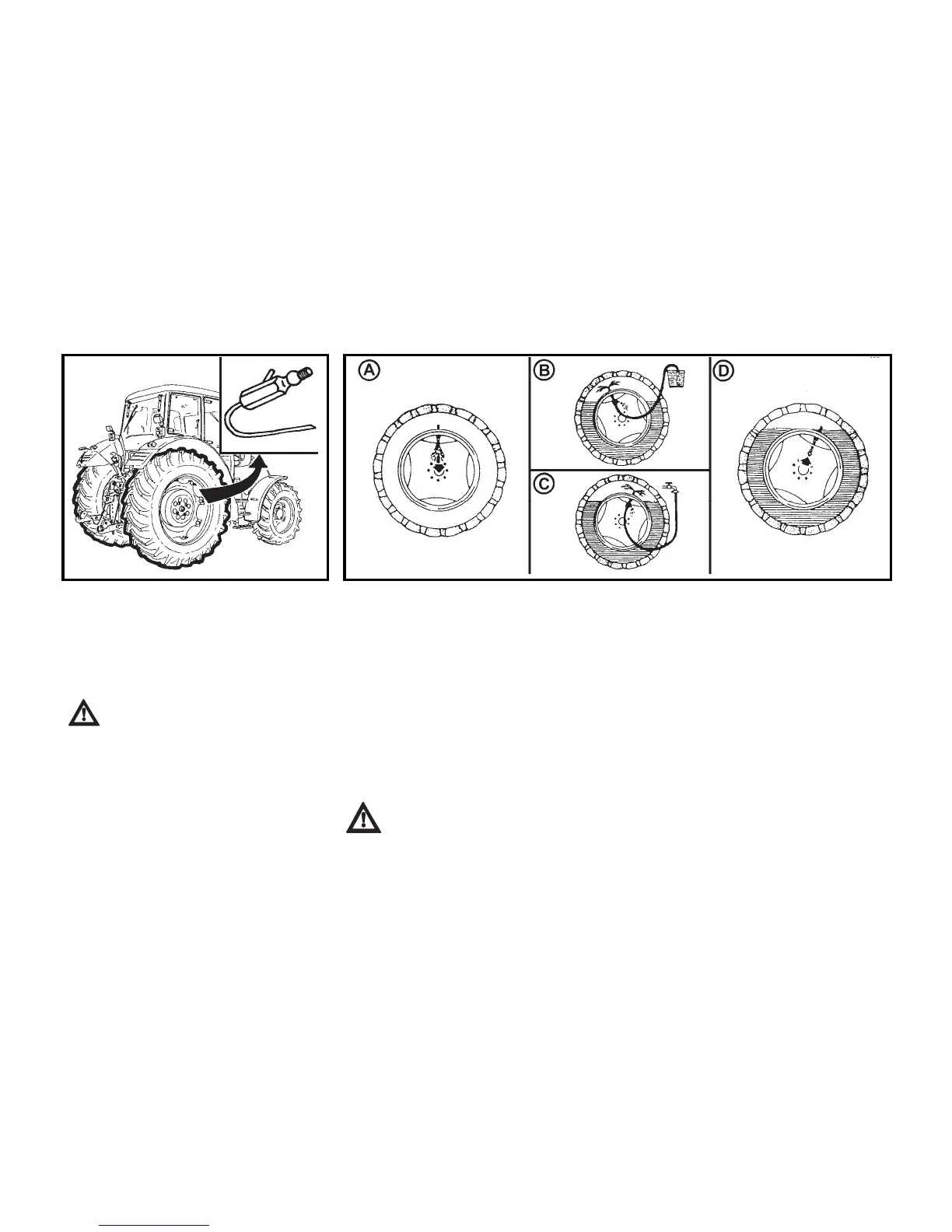

PROCEDURE OF FILLING THE TYRES WITH LIQUID
1. Unload the tyre by lifting the tractor and turn it with the valve upwards (A).
2. Deflate the tyre and unscrew the valve insert.
3. Screw the adapter for water filling on and attach the liquid supply hose to it.
4. Fill the tyre with the prescribed quantity of liquid.
5. For the filling you can use a gravity tank (B) or you can fill the tyre under pressure
(C).
6. Remove the hose and unscrew the adapter for water filling.
7. Screw on the valve insert and inflate the tyre to the prescribed pressure.
8. After inflating screw the protective cap on the valve.
9. Fill the other tyre in the same way.
Water must not freeze in a tyre!
