175
ELECTRIC INSTALLATION
F11N034

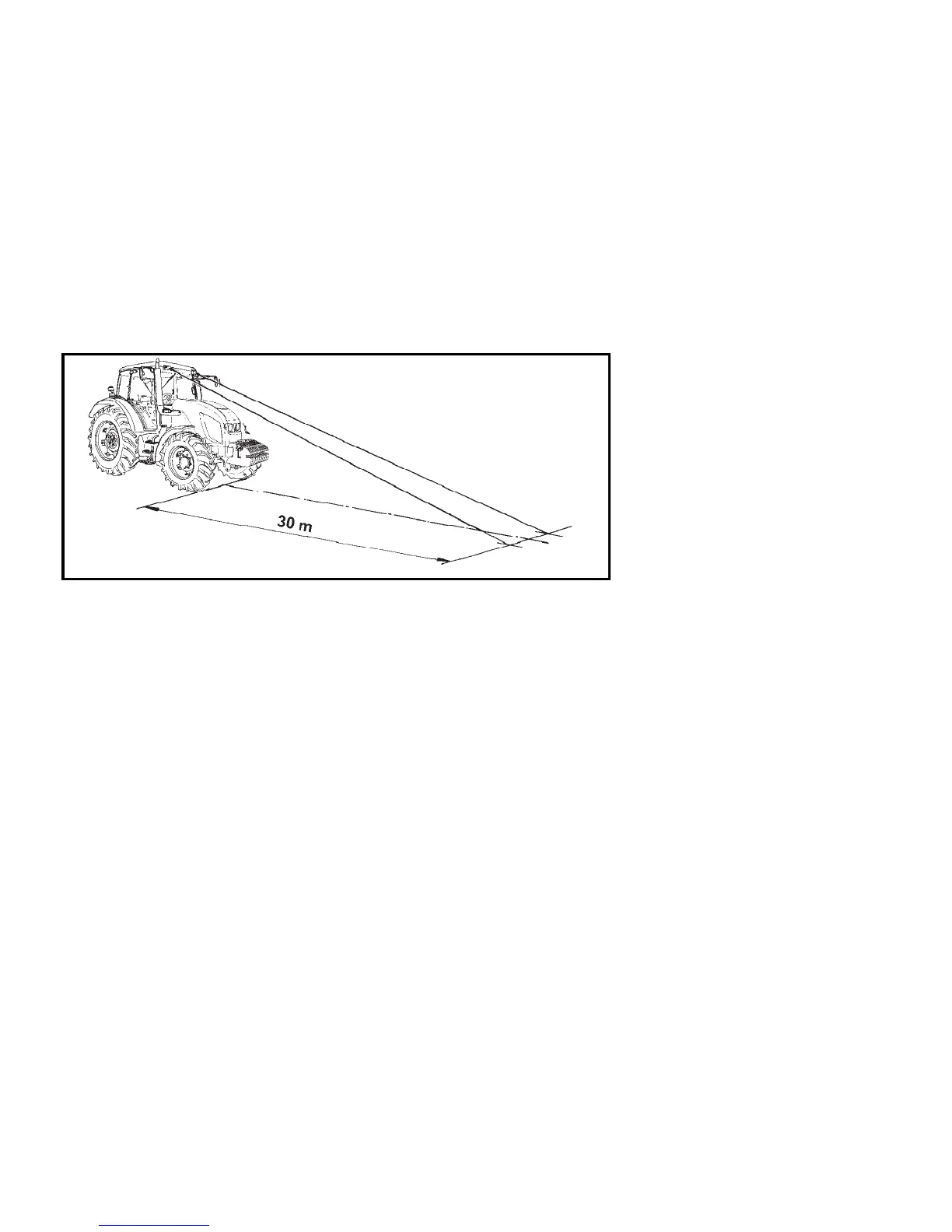

CHECKING THE ADJUSTMENT OF THE CAB ROOF HEADLIGHTS
In the vertical direction there must not be any point of illuminated area lying on the
road surface plane to the left from the longitudinal vertical plane passing through the
headlight centre further than 30 m from the front outline of the tractor.
In the horizontal direction the light beams must be parallel with the longitudinal axis of
symmetry of the tractor.
Check the adjustment of the headlights at the shipping weight of the tractor. The
front roof headlights may only be used when driving on public roads when the tractor
carries a frontally attached machine or implement covering the main headlights (in
the tractor grill).
