DRIVE OF AGRICULTURAL MACHINERY
FH13N006
STANDARD AND ECONOMICAL INDEPENDENT REVOLUTIONS OF REAR PTO SHAFT
The system used in the tractor is marked on the label placed by rear PTO shaft revolutions preselection lever.
This system has only independent revolutions of rear PTO shaft.

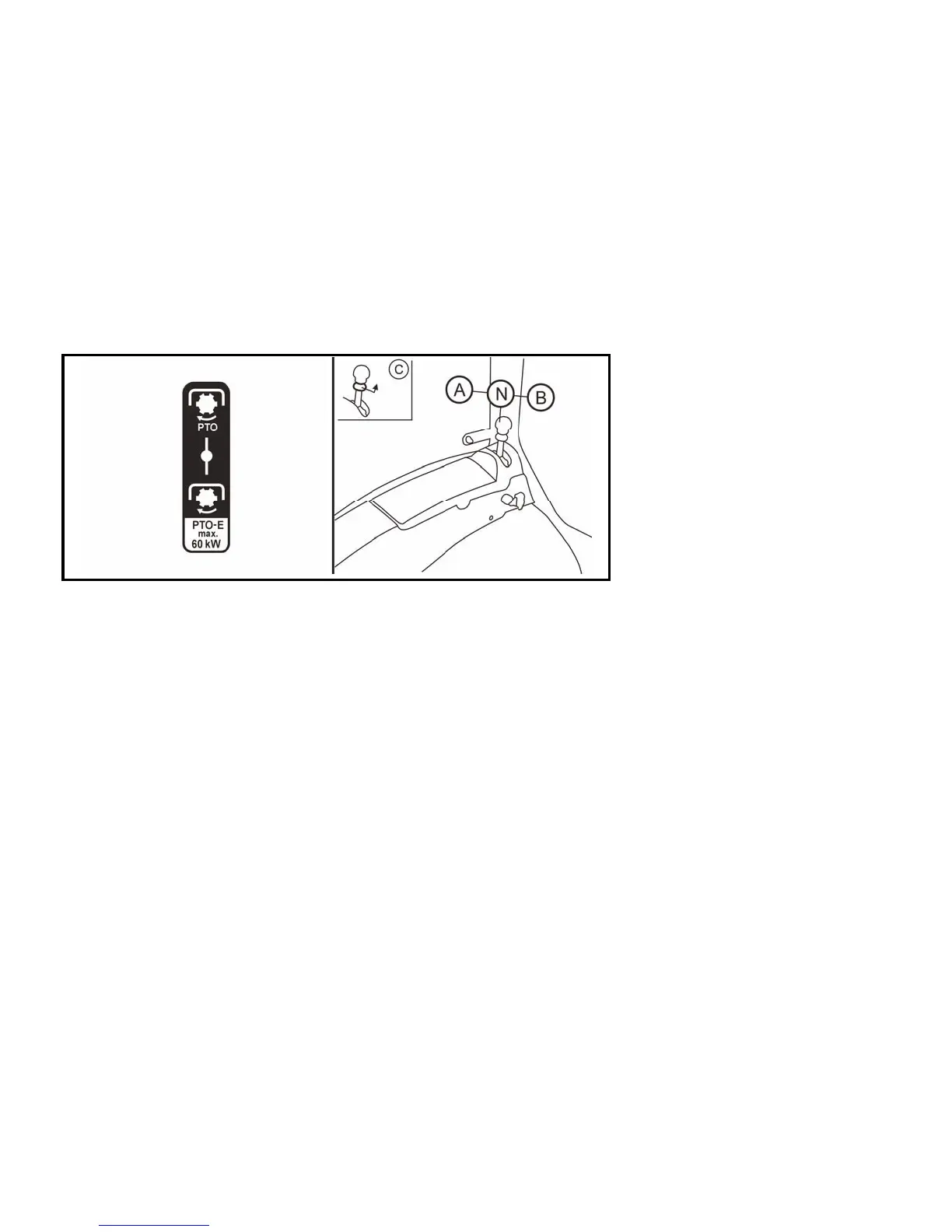

A -
Standard PTO shaft revolutions engaged
N -
Neutral position (rear PTO shaft end-point can be spun freely)
B -
Economical revolutions of PTO shaft engaged
With engaged standard PTO shaft revolutions (A), one can engage 540 or 1000 revolutions of rear PTO shaft on the right side of
the cab column by the revolutions selection switch.
With engaged economical PTO shaft revolutions (B), the switch of rear PTO shaft revolutions preselection on the right column of
the cab can be used to engage 540E or 1000E rear PTO shaft revolutions.
The lever is placed on the right side of driver’s seat. After shifting the lever, it is necessary to lift collar in the direction of the arrow
(C).
