144
HITCHES

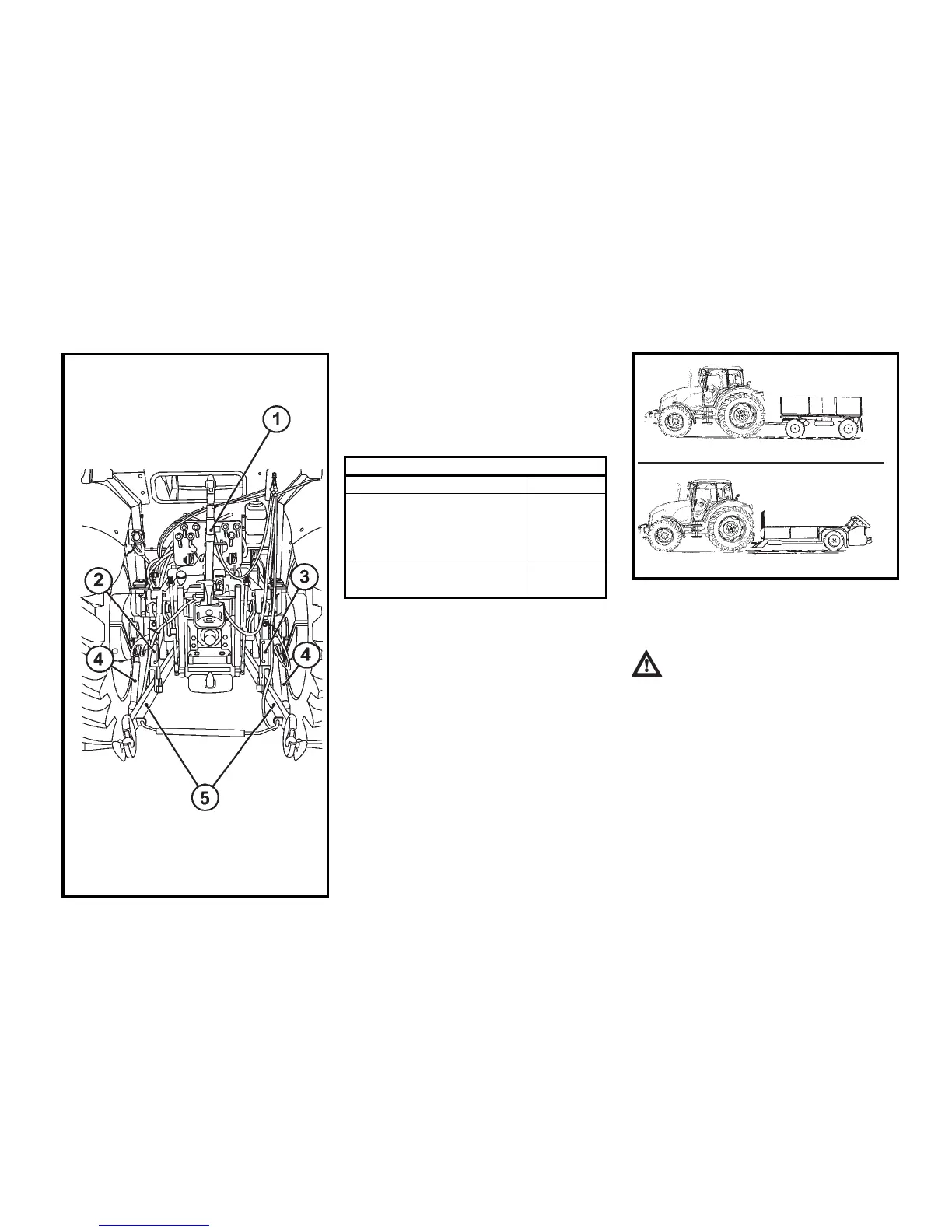

REAR THREE-POINT HITCH
It is intended for attaching carried or
semi-carried agricultural machines and
implements with hitching points of ISO
category II.
Category II.
Hitch axis length 870 mm
of openings of connect-
ing balls of the lower
draw-bars according to
ISO
28 mm
of the upper draw-bar
opening
25 mm
1. Upper draw-bar
2. Left lifting draw-bar
3. Right lifting draw-bar
4. Limiting draw-bars
5. Lower draw-bars
SAFETY PRINCIPLES OF WORKING
WITH THE THREE-POINT HITCH
Persons that are not authorized to work
with the attached implement must not
stand between the tractor and the
hitched machine (implement) - (A). Do
not park the tractor with an attached im-
plement in the lifted position (B). During
a drive without an implement the lower
11N032
draw-bars (5) must be connected with
springs and the upper draw-bar (1) must
be inserted into the spring suspension!
During transport of implements the
limiting draw-bars (4) of the lower
draw-bars must be adjusted in
such a way to avoid unwanted lat-
eral movement of the implement!
E451
