148
HITCHES
E461 FH12N065 X463

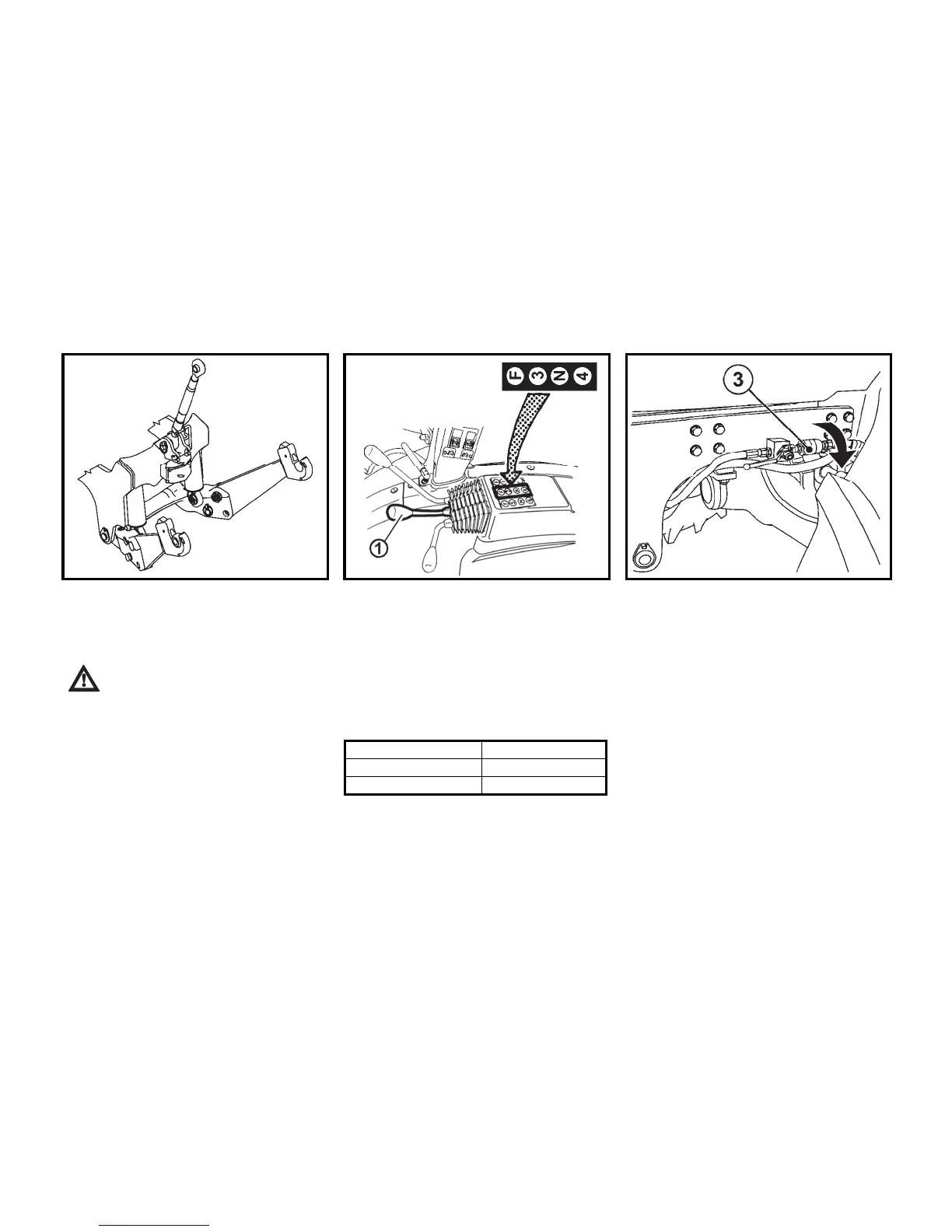

FRONT THREE-POINT HITCH
It is designed for attachment of frontally
carried agricultural machines and imple-
ments in accordance with ISO 8759-2.
During transport of a carried im-
plement the hitch must always be
hydraulically locked in the lifted
position with valves that are in-
stalled on the left side of the trac-
tor over the front axle.
This hydraulic lock is recommended
even in case no machine is attached to
the three-point hitch.
FRONT THREE-POINT HITCH
CONTROL
The hitch is equipped with two hydraulic
cylinders that are supplied with oil from
the integrated hydraulic distributor. The
lifting and lowering is controlled by the
control lever of the integrated distributor
(1).
Position 3
Lifting
Position 4
Lowering
Position N
Hitch lock
ADJUSTING THE LOWERING RATE
OF THE FRONT THREE-POINT HITCH
Before the start of work with an imple-
ment attached to the front three-point
hitch it is recommended to adjust the
time necessary to lower the implement
from the highest to the lowest position to
1 - 1.5 s by setting the throttle valve. By
turning the valve body to the left (in the
arrow direction) you will increase the
lowering speed. During the adjustment
the valve levers of the front hitch must be
directed horizontally.
