114
DRIVE OF AGRICULTURAL MACHINERY
FH13N015
REAR PTO SWITCH
Rear PTO shaft clutch is engaged by switch of rear PTO shaft. After engagement of the switch the shaft spins.

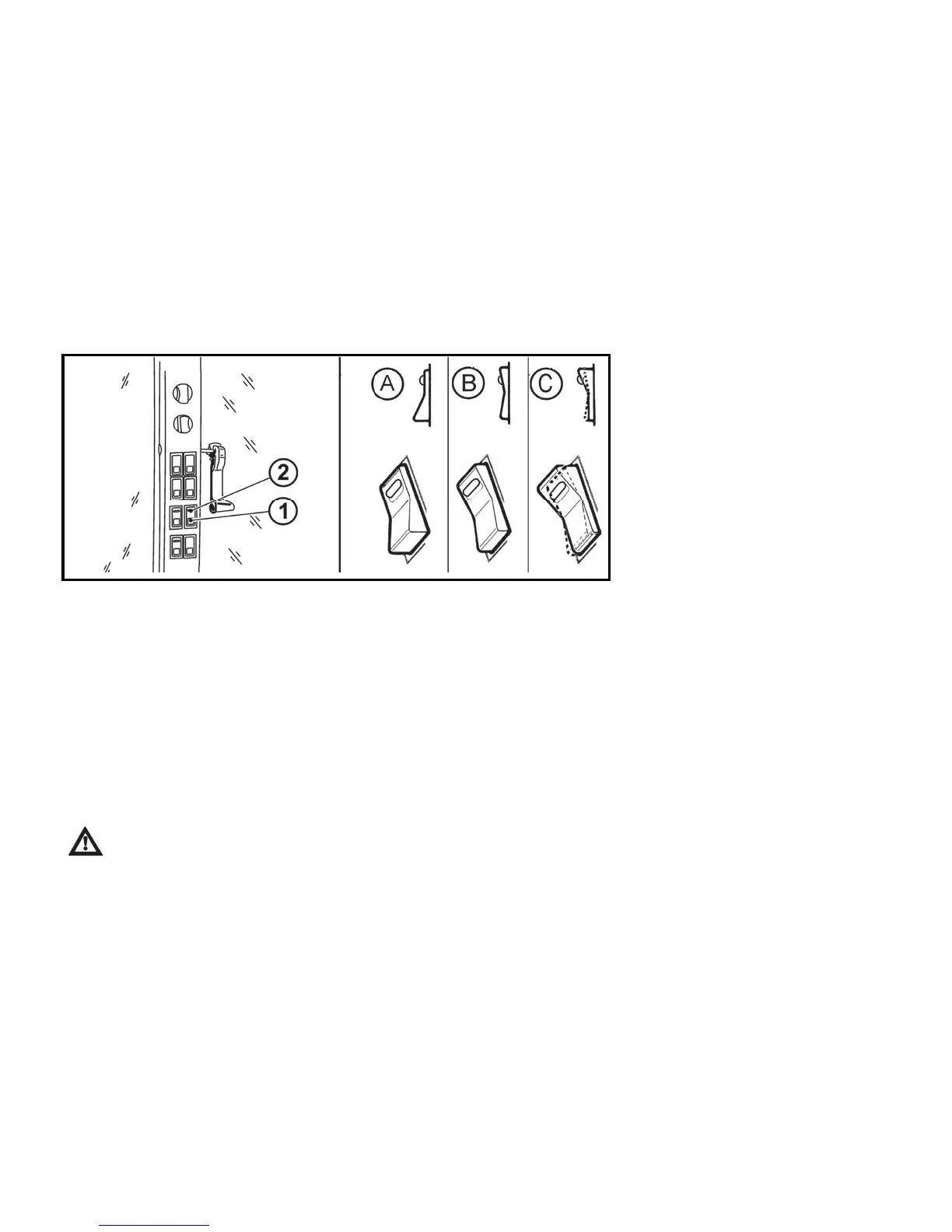

The engagement of the rear PTO clutch is done by a switch (1) placed on the right column of the cabin. The switch is equipped
with a mechanical lock (2) against unwanted switch. When switching the switch, depress the lock in downward direction.
After switching the switch (1) from (A) position to (B) position rear PTO shaft clutch is engaged and the shaft spins.
After switching the switch (1) from (B) position to (A) position rear PTO shaft clutch is engaged and the shaft stops.
By a subsequent switch of switch (1) from (B) position to (C) position lasting at least three seconds automatic disengagement of
PTO shaft clutch is engaged. After releasing the pressure the switch (1) returns to (B) positions.
By another depression of the switch (1) from (B) position to (C) position this function is disengaged.
A -
rear PTO shaft clutch disengaged
B -
rear PTO shaft clutch engaged
C -
Automatic disengagement of PTO shaft clutch
Check that the PTO shaft revolutions are set properly with regard for the connected tools!
