WHEEL TRACK CHANGE

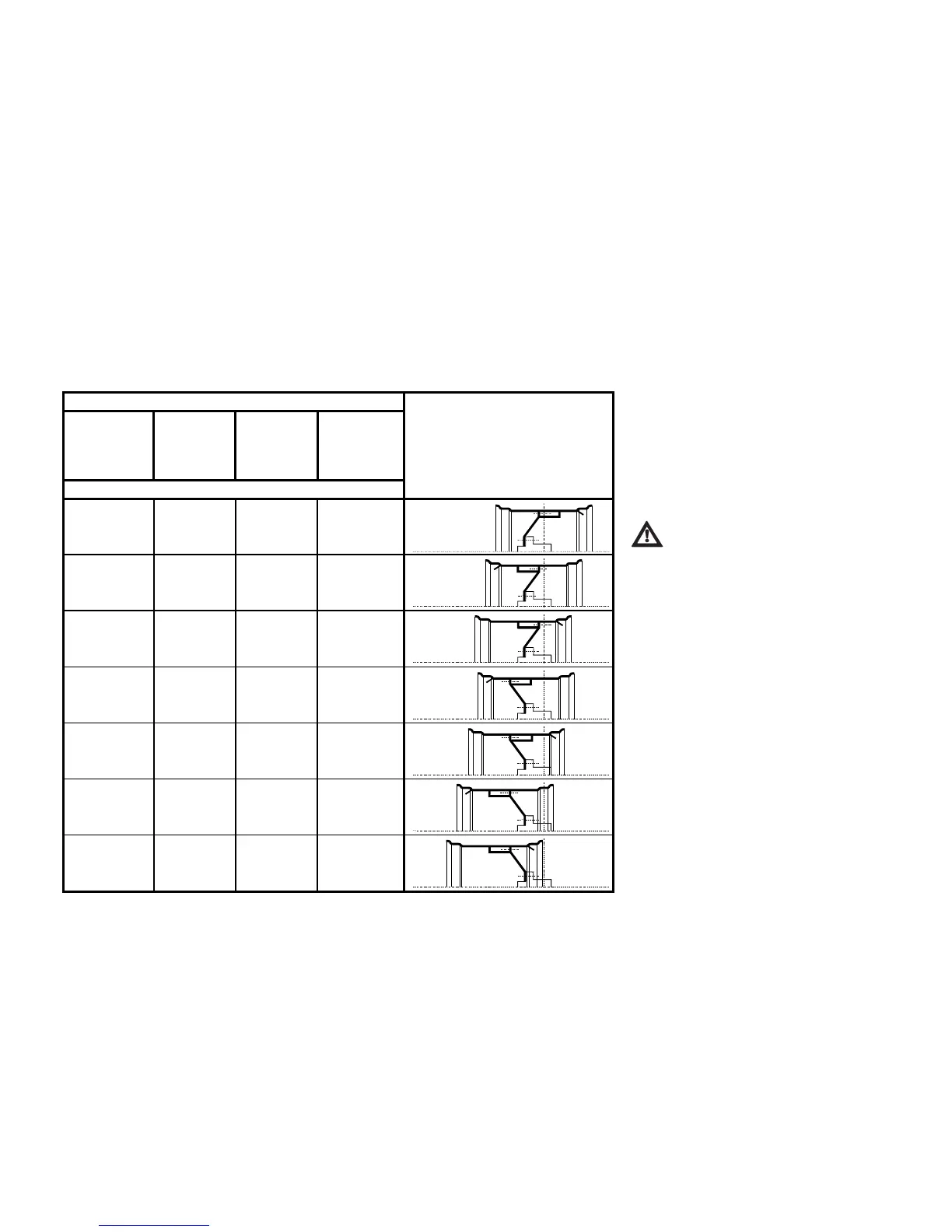

POSSIBLE ADJUSTABLE TRACKS OF THE FRONT WHEELS OF THE FRONT
DRIVING AXLE OF THE TRACTORS
Used tyres
Rim position
12.4-24 13.6R24 12.4-28 14.9-24
12.4R24 380/70R24 14.9R24
320/85R24 340/85R24 420/70R24
380/85R24
Front wheel tracks in mm
1630 - - -
1685 1770 1770
1780 1695 1770 -
1840 1920 1850 1920
1930 1850 1920 1850
1985 2070 1955 2070
2080 1955 2070 1955
Note: Use of different tyre dimensions
with individual tractor types - see chapter
Main technical parameters.
Tighten the front wheel nuts with the
torque of 250 - 290 Nm.
Tighten the nuts connecting the wheel
bead with the wheel disc with the torque
of 200 - 220 Nm.
You can change the wheel track by ch-
anging the position of the rim and disc.
First, secure the tractor against
moving, lift the axle with a lifting
jack and support it.
Loosen the nuts of the screws
connecting the disc with the rim and
remove the screws.
Change the track by setting the rim in
the required position.
Re-install the screws with washers and
secure them with nuts. Tighten the
nuts with the torque of 230 - 250 Nm.
After every loosening of a bead
connection tighten the screws to the
prescribed value.
After driving 100 m with the tractor
without load re-tighten the connections
with the prescribed torque.
After loading the tractor re-tighten the
connections after 3 hours of work.
After 10 hours of work check the
tightening of the nuts of discs and
wheel rims again.
