59
ACQUAINTANCE WITH THE TRACTOR
FH12N040 FH13N011 FH12N022

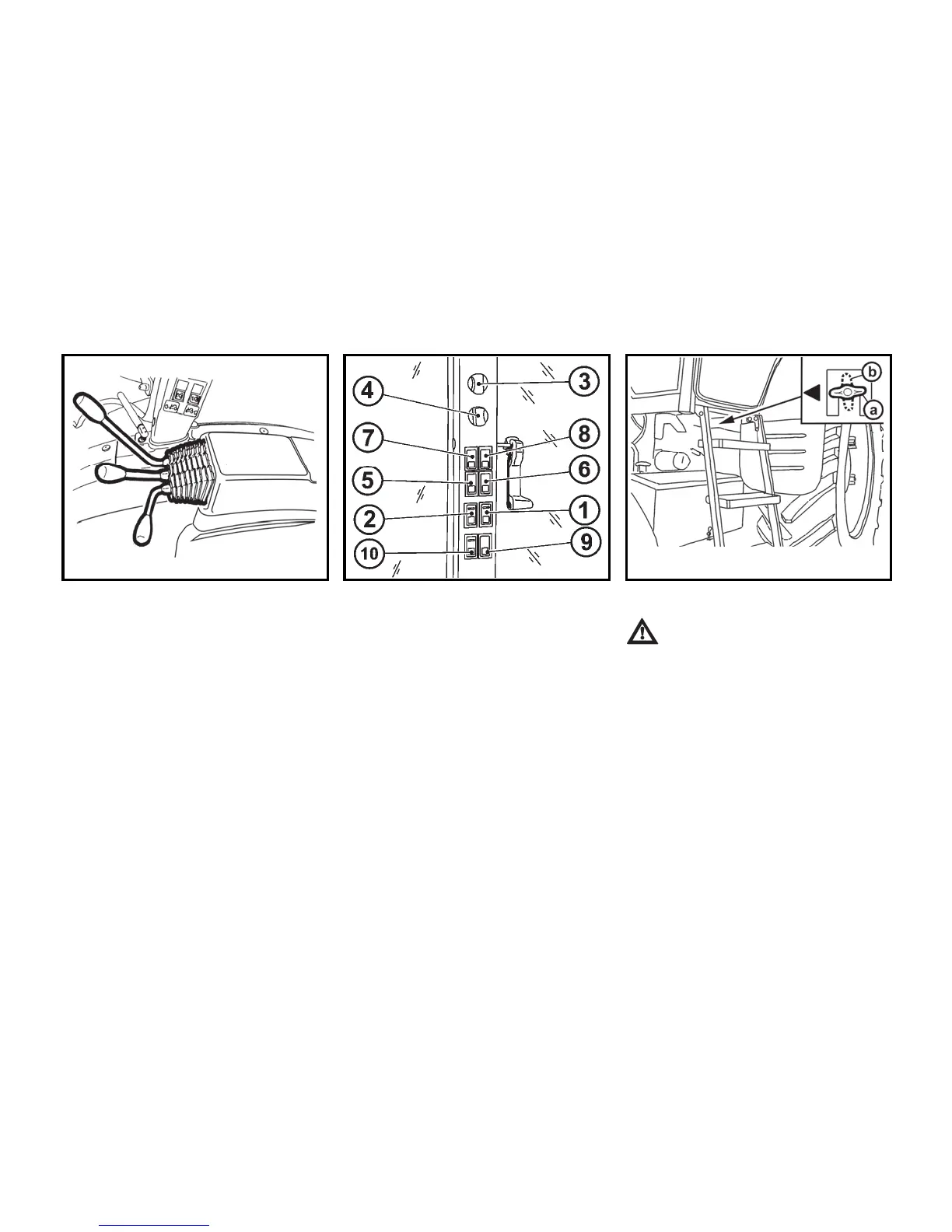

AUXILIARY HYDRAULIC SWITCHBOX
CONTROL (EXTERNAL HYDRAULIC
CIRCUIT)
Is placed in the upper part of right mud-
guard.
A detailed description of control and
function of integrated hydraulic switch-
board (of external hydraulic circuit) fol-
lows in “Hydraulic equipment” chapter of
this instructions manual.
CONTROL PANEL ON THE RIGHT
COLUMN OF THE CABIN
1 - rear PTO shaft engagement
2 - front PTO shaft engagement
3 - two-position switch of front wiper and
front windshield washer control
4 - rear wiper switch
5 - switch of front working lights on the
roof of the cabin
6 - switch of rear working lights on the
roof of the cabin
7 - rear mirrors heating *switch
8 - rear window heating *switch
9 - rear PTO shaft start rate. Three levels
can be selected according to connect-
ed tools:
10 - rear PTO shaft revolutions switch
(540 or 540E/1000)
BATTERY DISCONNECTOR
Disconnect the battery immediate-
ly by battery disconnector which is
placed on the right side of the
tractor with long-term standstill,
repairs or accident.
a - battery connected
b - battery disconnected
