115
DRIVE OF AGRICULTURAL MACHINERY
F13BN018 FH13N016 FH12N008

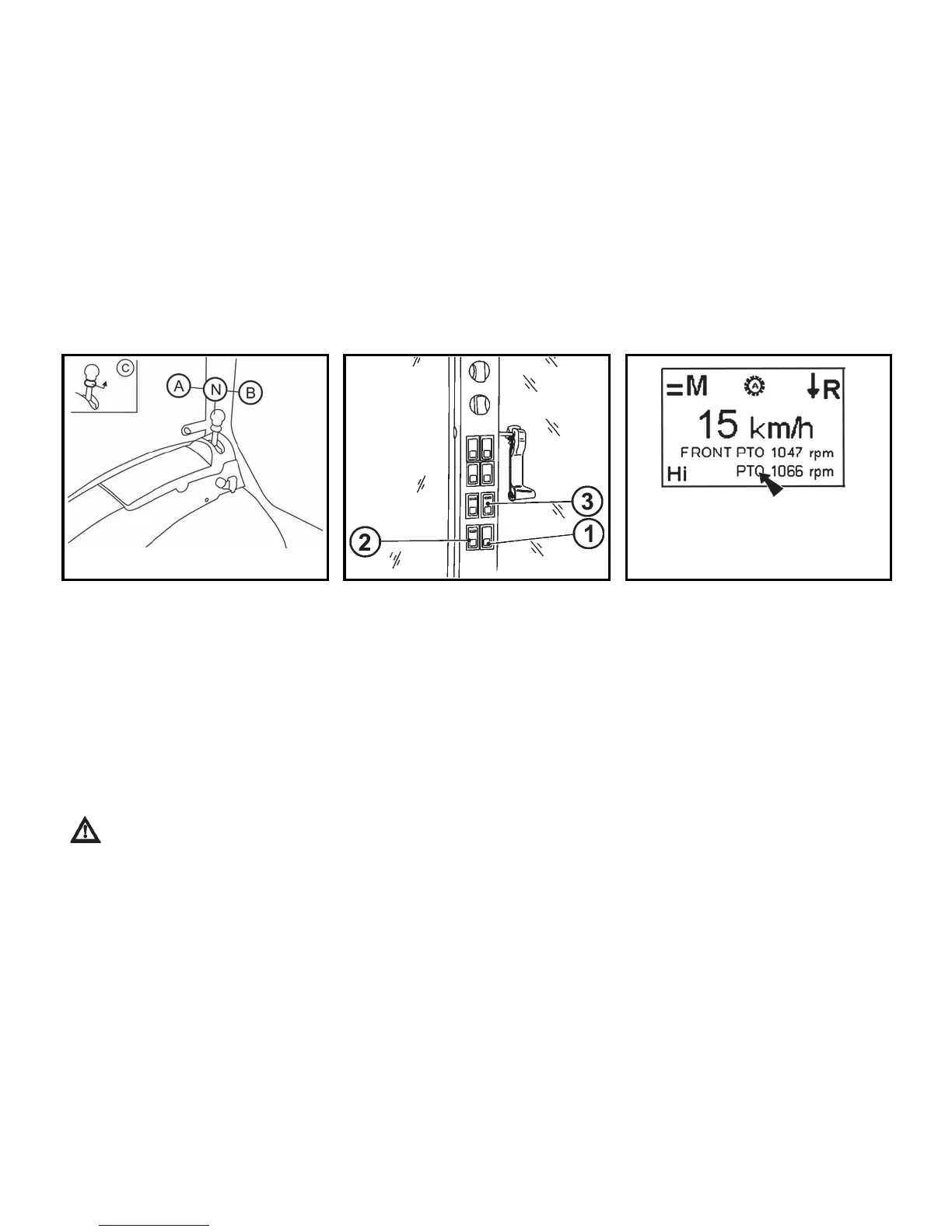

ENGAGING REAR PTO SHAFT - INDEPENDENT REVOLUTIONS
The number of PTO shaft revolutions is dependent on the number of engine revolutions
With engine running:
1. Select applicable operation mode PTO shaft revolutions preselection lever.
2. Select applicable mode of rear PTO shaft clutch starting with regard for the aggregated machine by a switch of rate preselection
for starting rear PTO shaft (1).
3. Select applicable revolutions by switch of selection of rear PTO shaft (2) revolutions
4. Rear PTO shaft is set into operation by switching the switch of rear PTO shaft (3)
Engagement of rear PTO shaft is signalized by the display of the number of rear PTO shaft revolutions on the display of the
dashboard.
If the aggregated machine allows it, engage the rear PTO shaft with minimum revolutions of 1500 rpm.
