Zetor FORTERRA HSX 120 User Manual

149
HITCHES
X464 E466 FH12N066

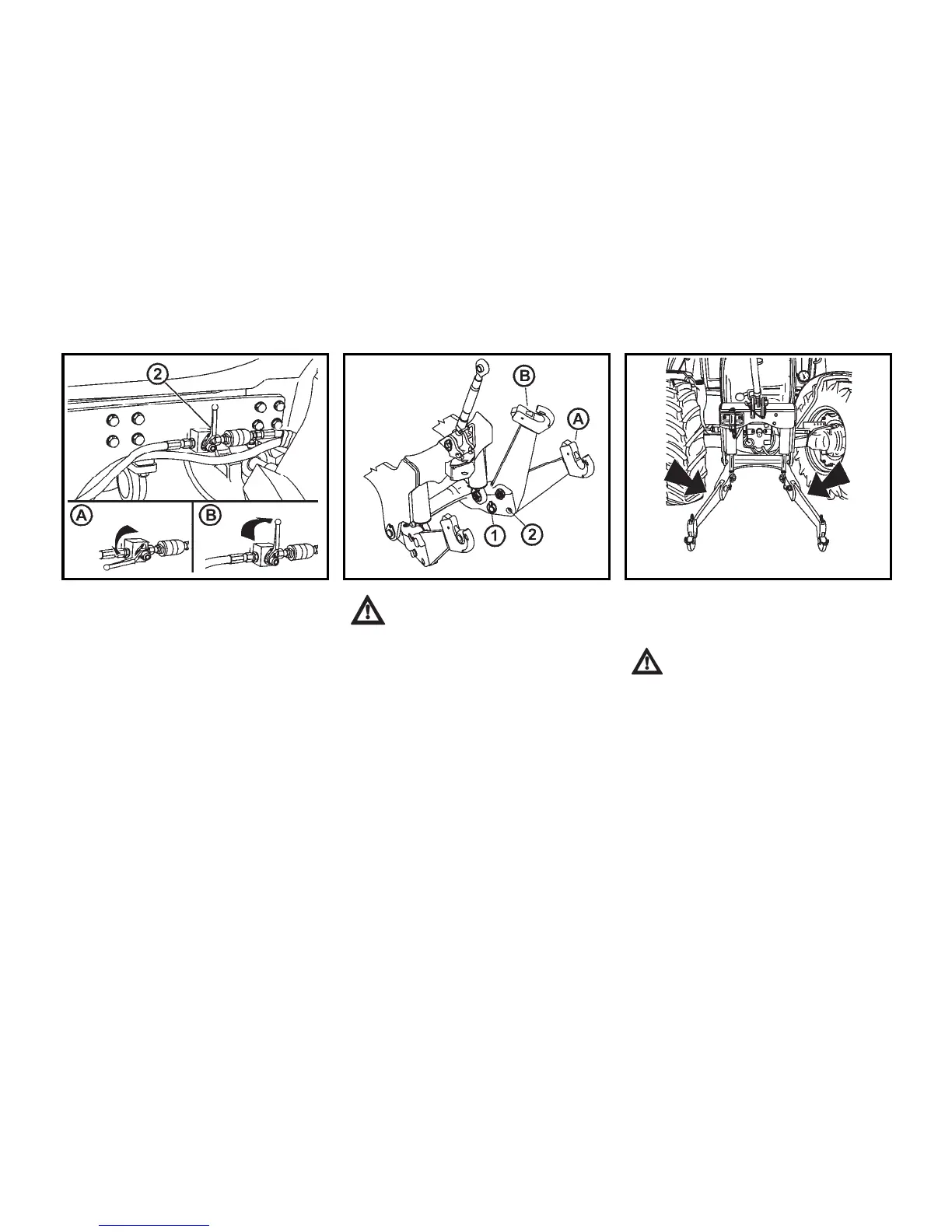

HYDRAULIC LOCK OF THE FRONT
THREE-POINT HITCH
Hydraulic locking of the front three-point
hitch is performed in any position of the
hydraulic cylinders with the ball valve in
the front part of the tractor (2).
A
Free position
Valve levers are in the horizontal
position
- The hitch can be controlled
from the cabin
B
Locked position
Valve levers are in the vertical
position
- The hitch is locked
WORKING AND TRANSPORT
POSITION OF THE FRONT
THREE-POINT HITCH
A
Working position of the front
three-point hitch
B
Transport position of the front
three-point hitch
Changing the position of the draw-bars
of the front three-point hitch:
1. Release and remove the pin (1) from
the opening.
2. Lift the arm from position (A) to posi-
tion (B).
3. Lock the arm by inserting the pin (2)
in the opening (2) and secure the pin.
Only insert the pin in the openings, never
check whether the opening is free with
your fingers!
DRIVING WITH AGRICULTURAL
MACHINES ATTACHED TO THE
FRONT THREE-POINT HITCH
The maximum permissible speed
of the tractor with agricultural
machines attached to the front
three-point hitch is 15 km/h.
If no implement or weight is at-
tached to the front three-point
hitch, we recommend you to lift
the lower lifting draw-bars to the
transport position.
