207
MAINTENANCE INSTRUCTIONS
C730 C731

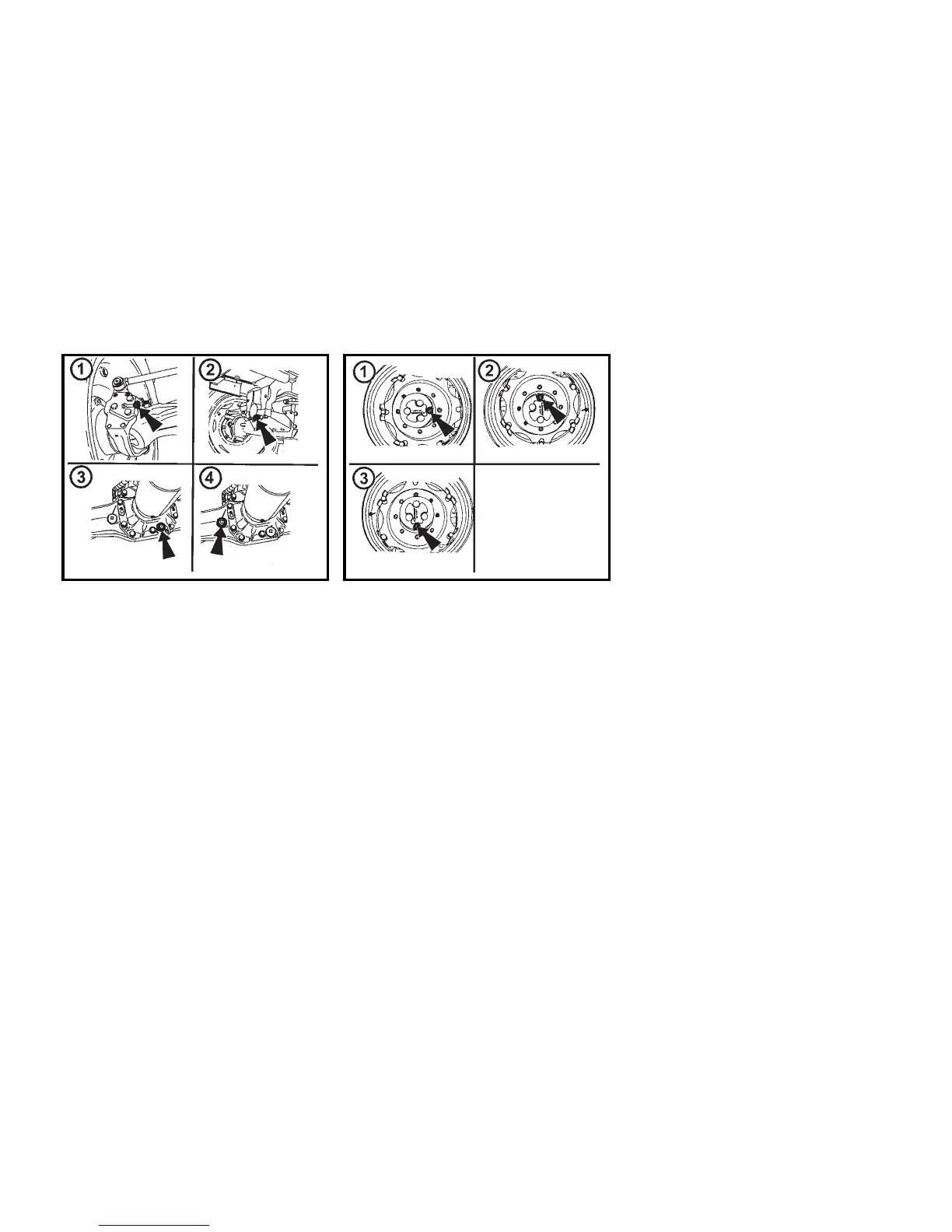

LUBRICATION AND FILLING POINTS
OF THE FRONT DRIVING AXLE
1. Lubricating nipple of the kingpin
2. Sliding bearings (2 pieces) of the
front driving axle
3. Drain opening of the final drive hous-
ing oil
4. Filling and inspection opening of final
drive housing oil (after removing of
the inspection screw the oil level
must reach the bottom edge of the
inspection opening)
FILLING, INSPECTION AND DRAIN
OPENING OF OIL OF THE FRONT
WHEEL REDUCERS
Oil is checked, filled and drained through
one opening after turning of the reducer
in accordance with the figure.
1. Checking the oil level - opening on
the horizontal axis of the reducer (af-
ter removing of the inspection screw
the oil level must reach the bottom
edge of the inspection opening)
2. Oil filling - opening at the top
3. Oil draining - opening at the bottom
