ABB MicroFlex e190 User Manual

Fault tracing 111

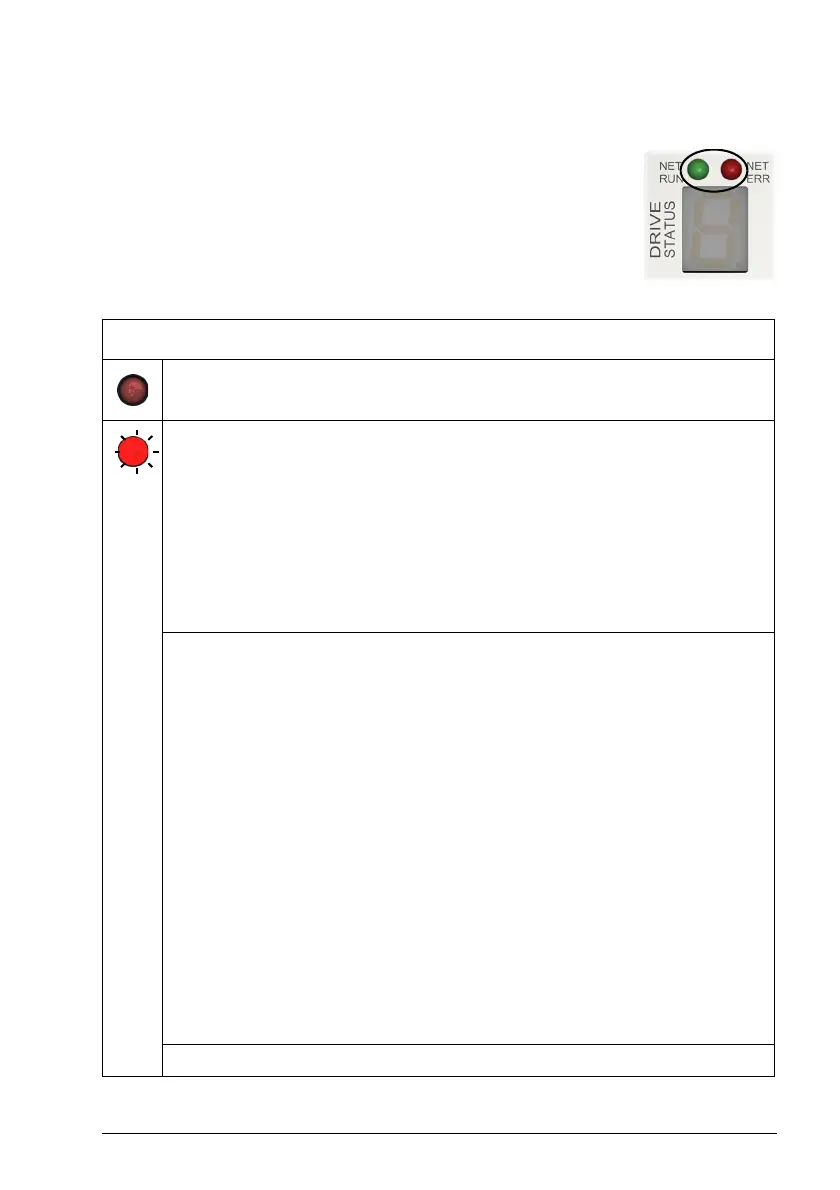

MicroFlex e190 indicators
 EtherCAT® mode
The Ethernet LEDs display the overall condition of the Ethernet
interface once the startup sequence has completed. The LED
codes conform to the EtherCAT Technology Group (ETG)
standard at the time of production.
NET ERR (Red)
Off:
No errors or not powered.
Blinking:
Invalid mailbox configuration in BOOT.
Invalid mailbox configuration in PREOP.
Invalid Sync manager configuration.
Invalid output configuration.
Invalid input configuration.
Invalid watchdog configuration.
Invalid DC Sync configuration.
Invalid DC latch configuration.
1 flash:
Unspecific error.
No memory.
Invalid request state change.
Unknown requested state.
Bootstrap not supported.
No valid firmware.
No valid inputs available.
No valid output.
Synchronization error.
Invalid Sync manager types.
Slave needs cold start.
Slave needs INIT.
Slave needs PREOP.
Slave needs SAFEOP.
Invalid input mapping.
Invalid output mapping.
Inconsistent settings.
FreeRun not supported.
SyncMode not supported.
FreeRun needs 3 buffer mode.
Background watchdog occurred.
No valid inputs and outputs.
Fatal sync error.
No sync error.
PLL error.
DC sync IO error.
DC sync time-out error.
Invalid DC Sync cycle time.
DC Sync0 cycle time.
DC Sync1 cycle time.
Message box EoE error.
Message box CoE error.
Message box FoE error.
Message box SoE error.
Message box VoE error.
EEPROM no access.
EEPROM error.
Slave restarted locally.
2 flashes: Sync manager watchdog.
