Operation principle and hardware description 31

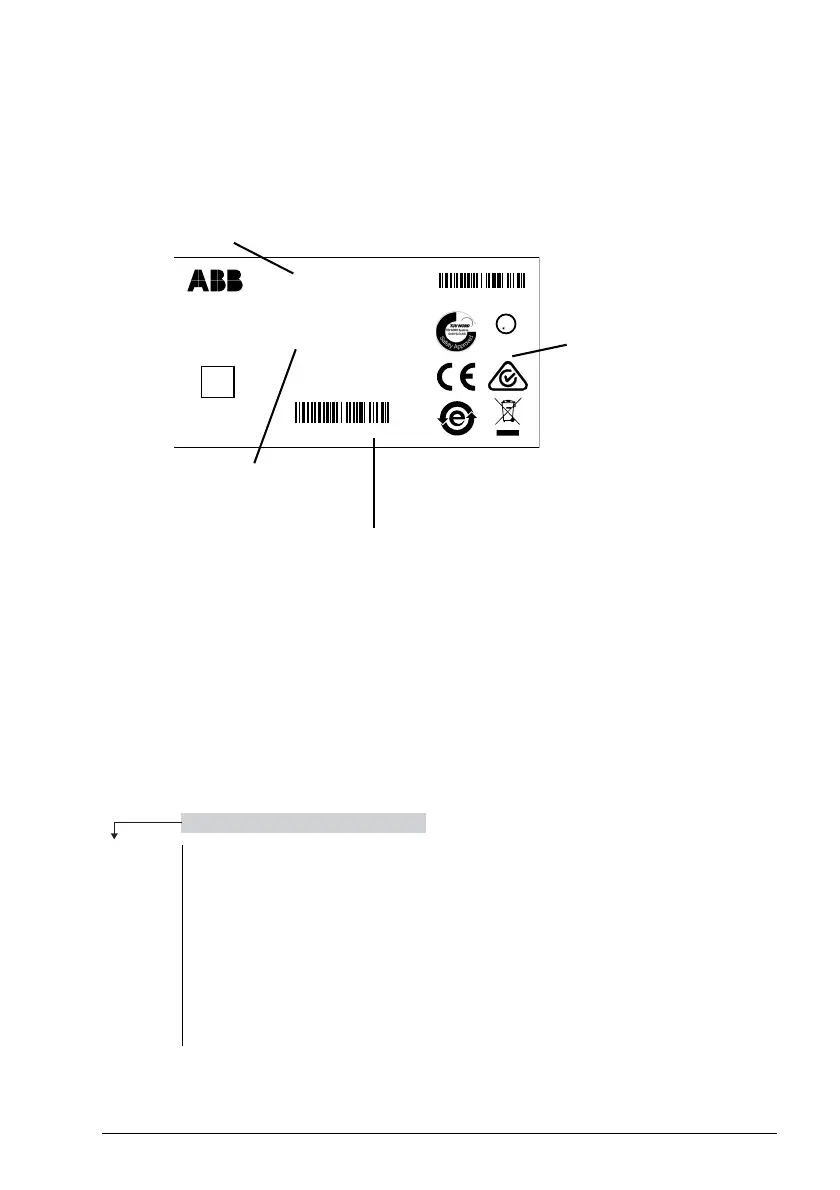

Type designation label
Before attempting installation and operation, check the information on the type
designation label to verify that the unit is of the correct type. The label is located on
the right-hand side of the drive.
$VVHPEOHGLQ&KLQD
IP20
UL open type
0)(83$1
Material code
,QSXW 8 a9$&
, $
I +]
2XWSXW 8 a8
, $
I +]
C
US
U
L
LISTED
IND. CONT. EQ.
E470302
*3AXD50000038570*
)UDPH
$
ABB Oy
Hiomotie 13
00380 Helsinki
Finland
61
Type code (see description below)
Serial number
Compliance markings
I1 = Input current
I2 = Output current
The first digit of the serial number refers to the manufacturing plant. The 2nd and 3rd
digits indicate the year of manufacture, while the 4th and 5th digits indicate the week.
Digits 6 to 10 are a running integer starting every week at 00001.
Type designation key
The type code contains information on the specifications and configuration of the
drive. The type code is explained in the following table. Not all selections are
necessarily available for all types; refer to MicroFlex e190 Ordering Information,
ava
ilable on request.
MFE190-04UP-03A0-2+N8020
MFE190
-2
MicroFlex e190
Drive module
Universal encoder
Programming: P = programmable, N = not programmable
Size: 01A6 = 1.6 A, 03A0 = 3 A, 06A0 = 6 A, 09A0 = 9 A. See page 148.
Input voltage: 2 =
200...240 V AC ±10%
Memory unit: MFE190-MU-OCU+N8020
