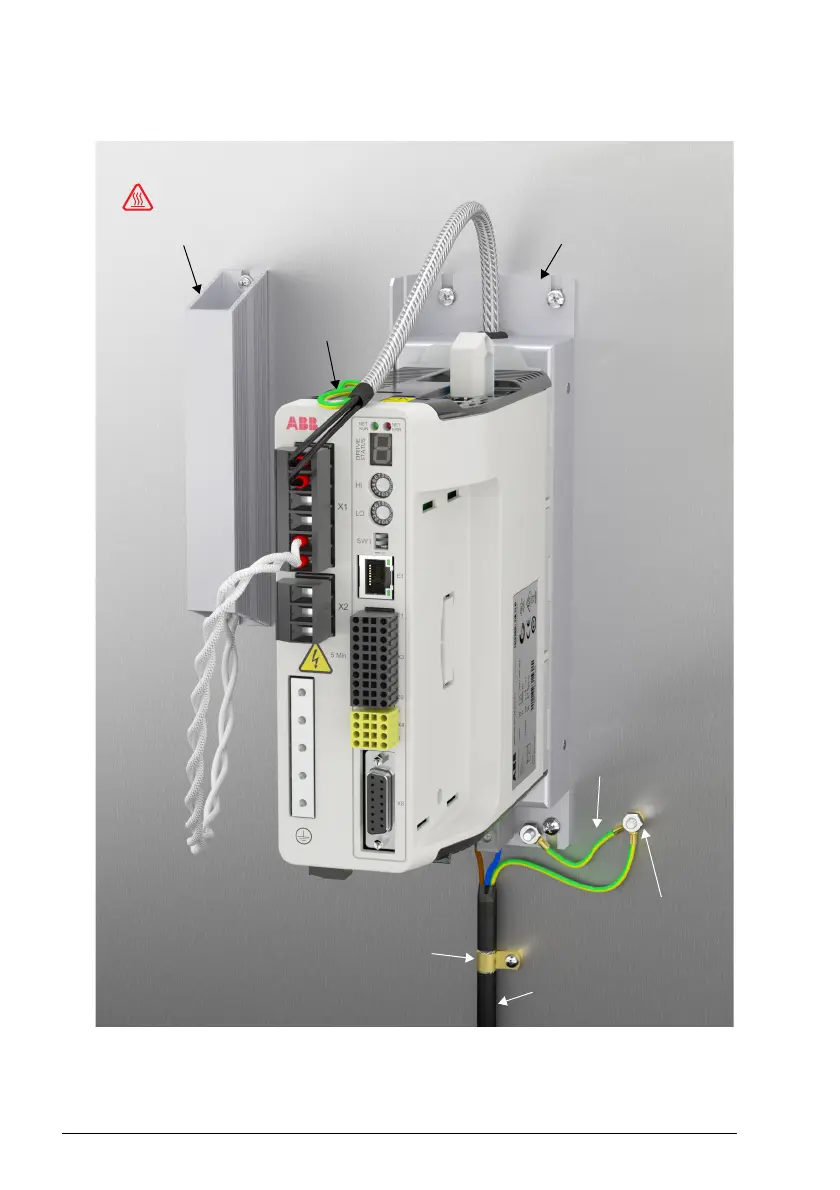

Footprint filter OFI-01
saves panel space.
The filter can be inverted
if the AC input is above
the drive.
AC power
from fuses
or reactor
Connect AC power cable shield to metal panel, using
conductive shield earth/ground clamps.
On painted panels, remove paint to expose bare metal.
AC power wires should be as short as possible, typically
less than 0.3 m (1 ft).
Longer wires must be shielded as shown.
Wire colors may vary according to region.
Protective
Earth
(PE)
DO NOT TOUCH!
Brake resistors can become
extremely hot! Locate away from
vulnerable components and wiring.
CAUTION
Drive earth wire
must be at least
10 mm
2
(7 AWG)
Installation
cabinet
‘star point’
