180 Accessories
Encoder breakout OPT
-MF-200

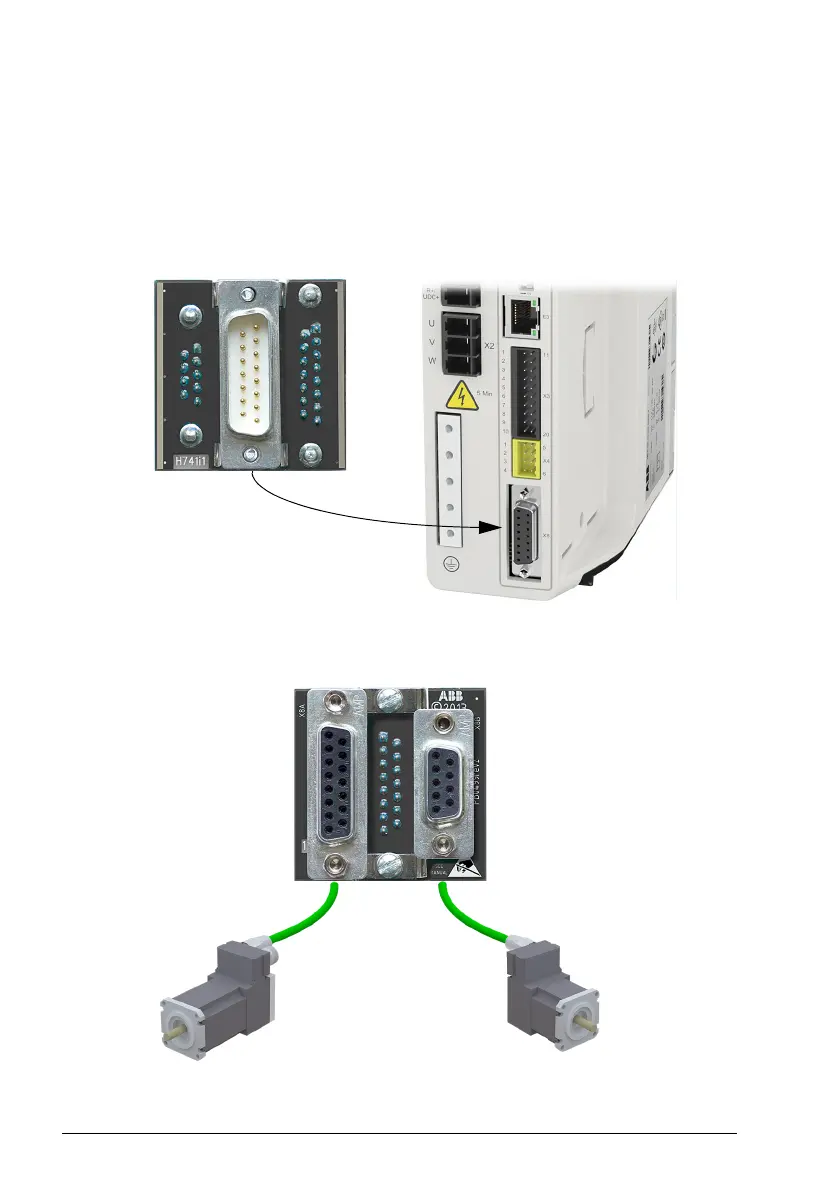

The encoder breakout (part OPT
-MF-200) can be used to connect motor feedback
and an extra incremental encoder (see page
76
).
Alternatively
, the connectors can be
used together to connect a single moto
r t
hat has sepa
rate cables for encoder and
Halls (e.g. a linear motor).
Motor feedback
MicroFlex e190
OPT-MF-200
OPT-MF-200
Incremental enco
der
179
181
