Resolver adapter OPT-MF-201

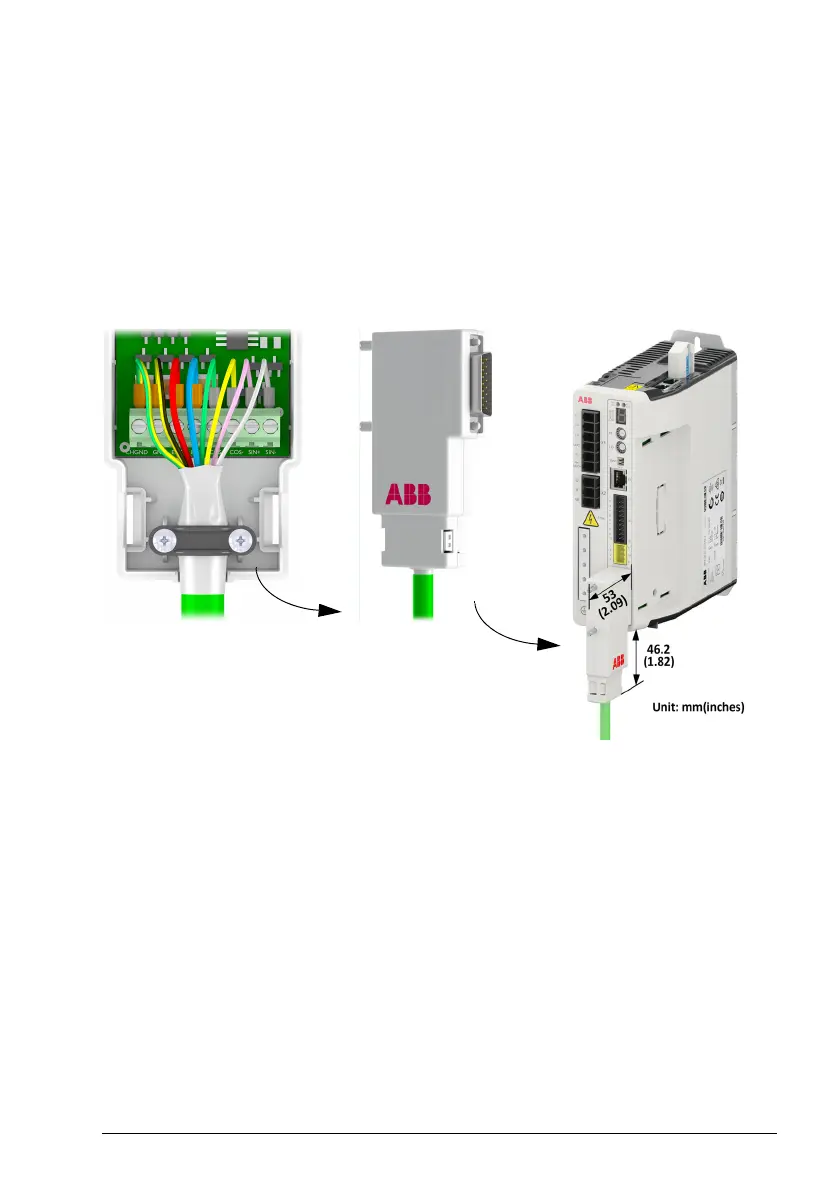

The resolver adapter (OPT-MF-201) allows a motor with resolver feedback to be
connected to the MicroFlex e190. The MicroFlex e190 must be power-cycled after
con
necting the resolver adapter. The resolver adapter sends an absolute position to
the MicroFlex e190 at startup, so a
phase search is not required. In Mint WorkBench,
select a resolver motor in the Drive Setup Wizard. The wizard’s Feedback page will
show the feedback type as Resolver Adapter. The resolver adapter can be used in
conjunction with the encoder breakout (OPT-MF-200).
Resolver adapter specifications
• Excitation frequency: 10 kHz
• Maximum input speed: 60000 rpm (2 pole resolver)
• Output resolution: 12-bit
• Accuracy: +/-11 arc minutes
Resolver requirements
• Transformation ratio: 0.5
• Excitation supply load: 100 mA maximum.
