ABB STT04 User Manual

PTH PRESSURE TRANSMITTER
CALIBRATION
D - 5
CALIBRATION
This section details the PTH pressure transmitter calibration functions
using an STT04 terminal. There are three types of calibration func-
tions:
• Bench calibration.
• Rezero.
• D-to-A adjust.
NOTES:
1. When calibrating, a field device must be connected to the
STT04 terminal.
2. To change calibration or configuration parameters of a field
device that is connected to an IMFBS01 module, the transmitter
must be taken off-line. This is done at the INFI 90 OPEN console.
Refer to Figure D-2 for an overview of the calibration functions.

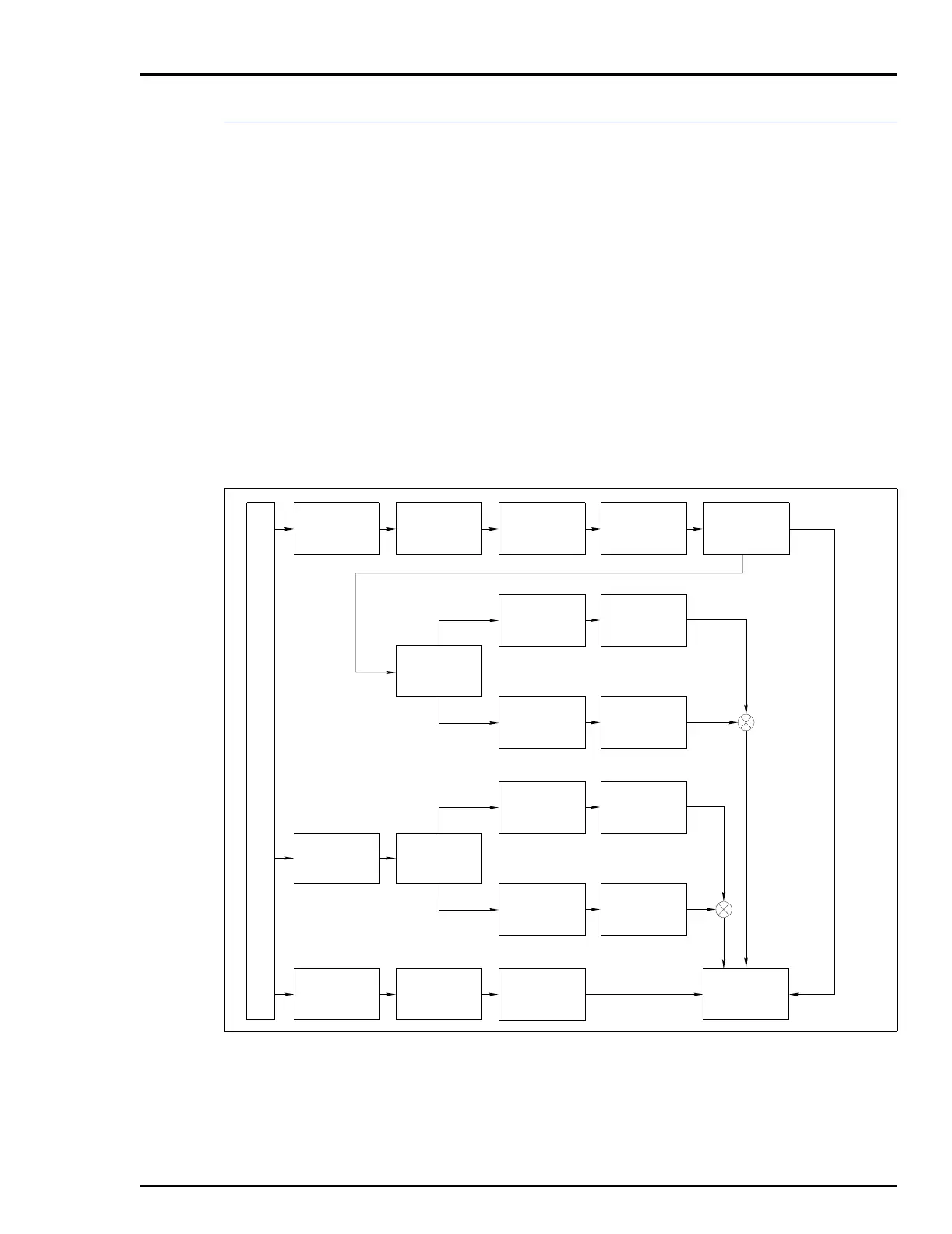

Figure D-2. Calibration Flowchart (PTH)
T01340A
DIGITAL
ANALOG
CALIBRATION
COMPLETE
BENCH
REZERO
ENTER LOW
CALIBRATION
PRESSURE
D-TO-A
CAL
METHOD
CAL
METHOD
ARROW
KEYS
ARROW
KEYS
METER VALUE
ENTRY
METER VALUE
ENTRY
ADJUST
OUTPUT
TO 4 mA
ADJUST
OUTPUT
TO 4 mA
ADJUST
OUTPUT
TO 20 mA
ADJUST
OUTPUT
TO 20 mA
4 mA
CALIBRATION
ENTER METER
VALUE 4.000
4 mA
CALIBRATION
ENTER METER
VALUE 4.000
20 mA
CALIBRATION
ENTER METER
VALUE 20.000
20 mA
CALIBRATION
ENTER METER
VALUE 20.000
EQUALIZE
PRESSURE
ENTER HIGH
CALIBRATION
PRESSURE
REZERO
COMPLETE
APPLY LOW
CALIBRATION
PRESSURE
C
A
L
I
B
R
A
T
E
APPLY HIGH
CALIBRATION
PRESSURE
