STT04 DESCRIPTION
1 - 1
SECTION 1 - INTRODUCTION
STT04 DESCRIPTION
The STT04 Smart Transmitter Terminal is a battery powered, portable
communication device that configures, calibrates, monitors, modifies,
troubleshoots, and verifies the operation of HART devices and ABB
smart devices from remote locations (Fig. 1-1).
The STT04 Smart Transmitter Terminal consists of an LCD display,
key pad (32 keys) and an RS-232-C port for personal computer com-
munications. The terminal comes with a clip lead cable, battery
charger and an optional carrying case.
The STT04 terminal can operate for approximately six days before
needing a charge. Each terminal includes a battery charger.
The STT04 terminal supports HART devices and ABB Digital FSK
devices. Refer to Table 1-1 for a list of devices.

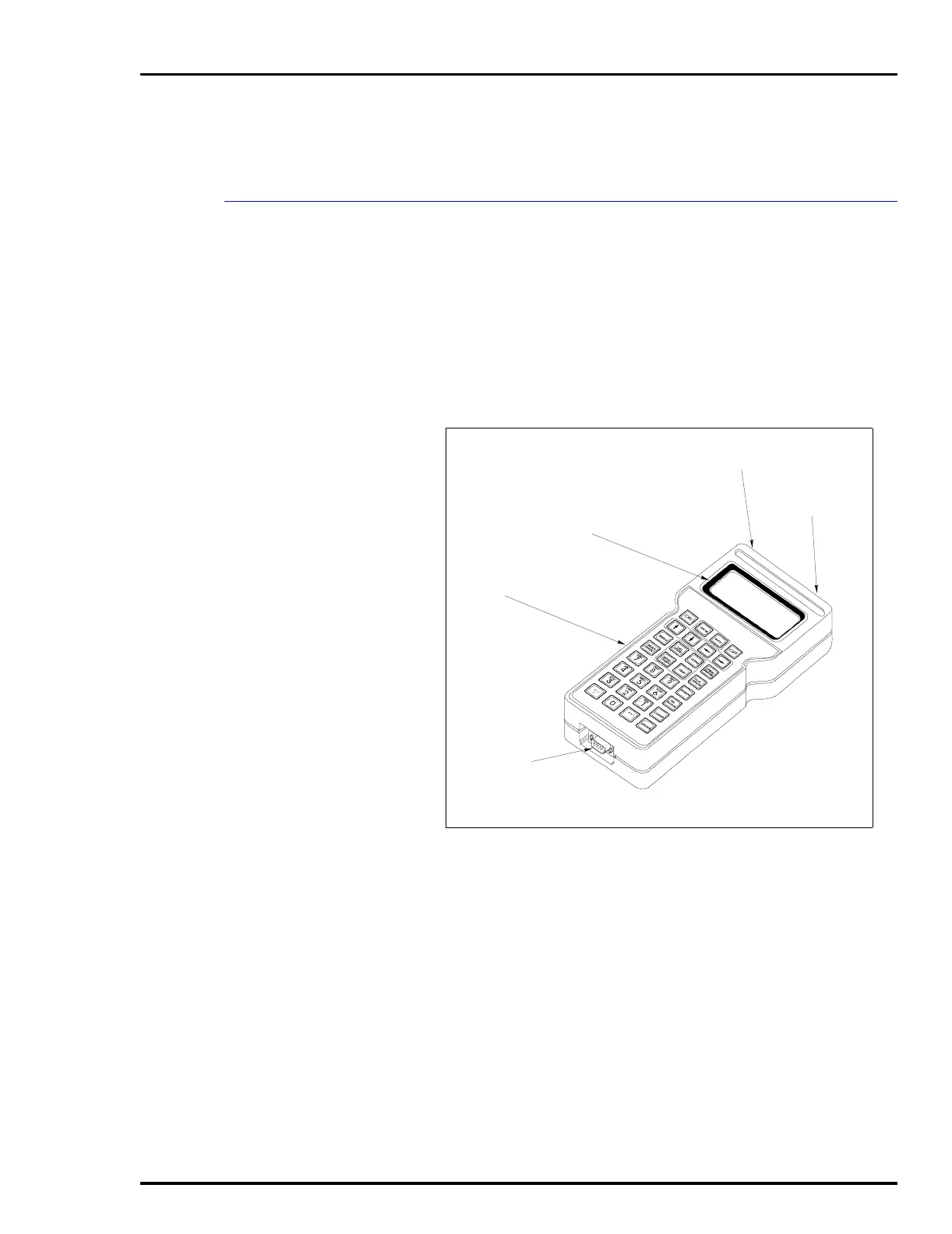

Figure 1-1. STT04 Smart Transmitter Terminal
LCD DISPLAY
BATTERY CHARGER
RECEPTACLE
KEY PAD
RS-232 PORT
COMMUNICATIONS
RECEPTACLE
T01540A
