STT04 DOWNLINK SOFTWARE
USING DOWNLINK SOFTWARE
O - 10
Click Select All to upload all configuration from the STT04 termi-
nal (Fig O-4).
NOTE: If a configuration already exists, DownLink software prompts
to replace the existing configuration and indicates if it has changed
in the field (Fig. O-5).
6. Click the arrow key to identify the configurations for transfer (Fig
O-4).
7. Make certain that the desired database has been selected. For
details refer to OPEN, located in this section.
8. Click Save (Fig O-4). The selected configurations will be saved to
the database on the personal computer.
DOWNLOAD TO STT04
Use this function to download configurations from the personal com-
puter to the STT04 terminal.
1. Connect the STT04 terminal to the personal computer.
a. Connect the female end of the RS-232-C (customer supplied)
cable to a vacant RS-232-C port (serial port) on the personal
computer.
b. Connect the male end of the RS-232-C cable to the STT04
terminal.
2. Start the DownLink software program. Refer to Start located in
this section.
TC00968A

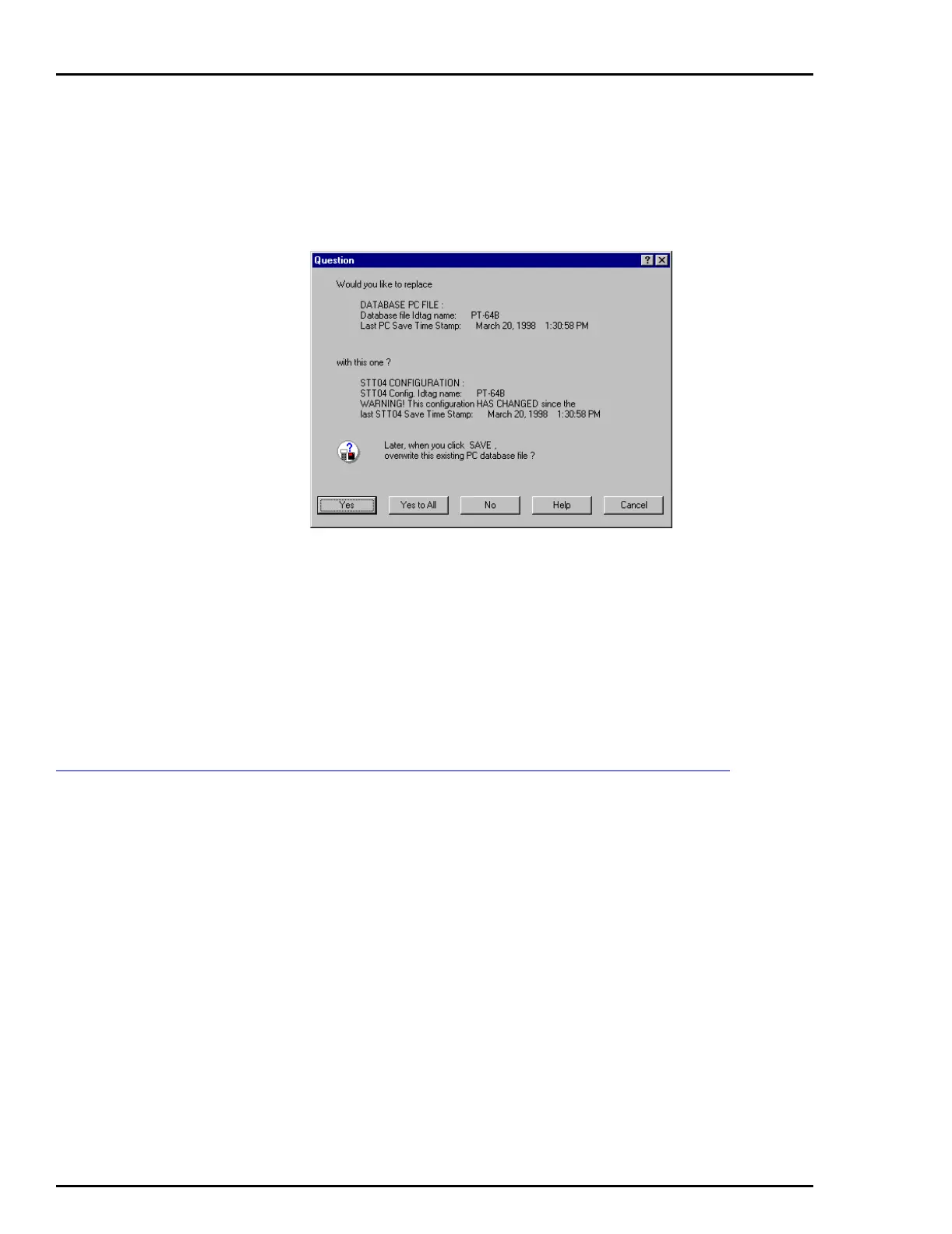

Figure O-5. Replace Configuration File Dialog
