There are four common cam profiles that can be used as position cam or time cam
profiles:
• Acceleration Cam Profile
• Run Cam Profile
• Deceleration Cam Profile
• Dwell Cam Profile
Cam profiles are configured for each required slave axis change of position, as
corresponds to specific master axis position or time positions.
See also
Acceleration Cam Profile on page 219
Run Cam Profile on page 220
Deceleration Cam Profile on page 220
Dwell Cam Profile on page 221

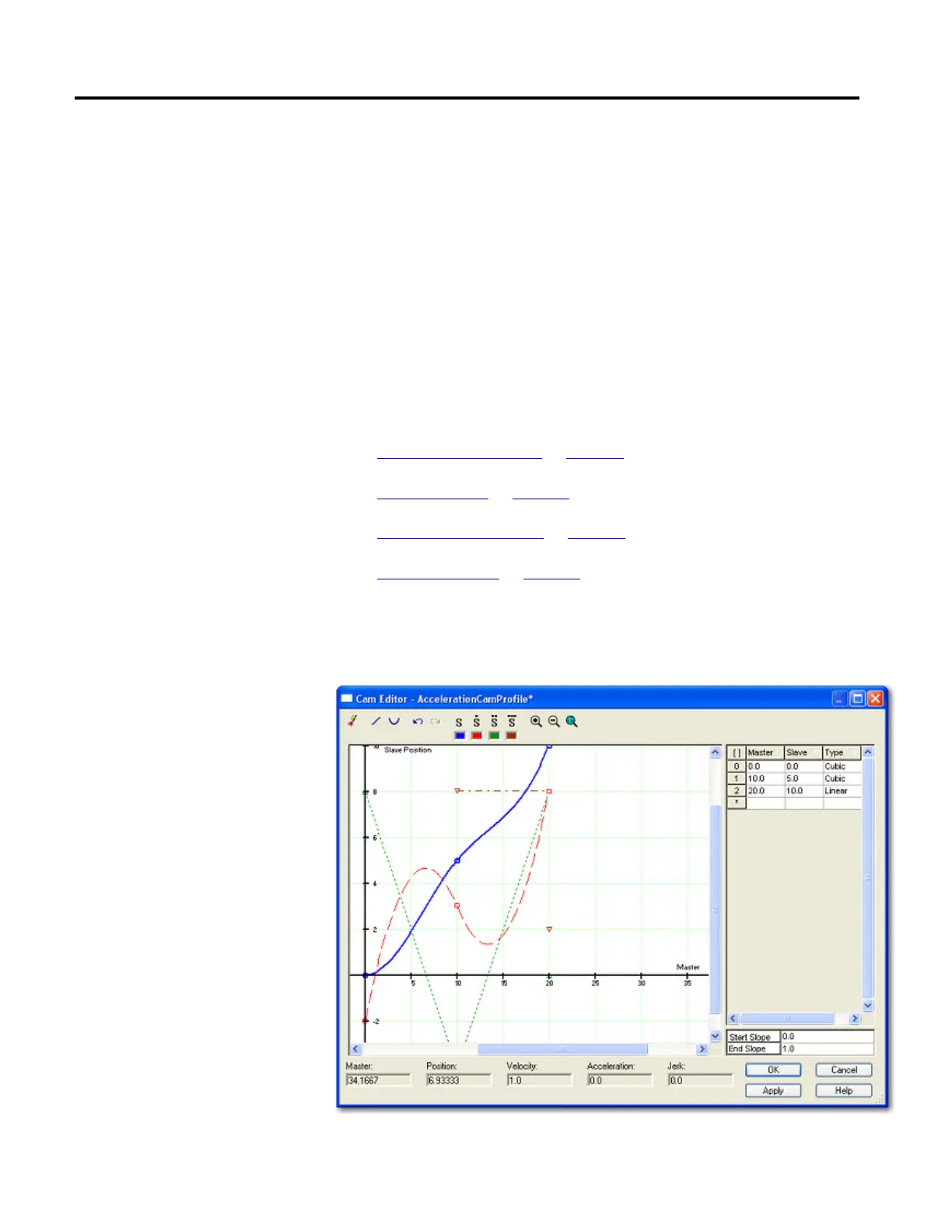

An acceleration cam profile determines a slave axis acceleration to a particular
position. This graphic illustrates a sample acceleration cam profile in the Logix
Designer programming software Cam Editor.
