Chapter 5 Using the LCD
5. Press the Up or Down key to select the different mode, Discrete in this
example. Press the OK key.

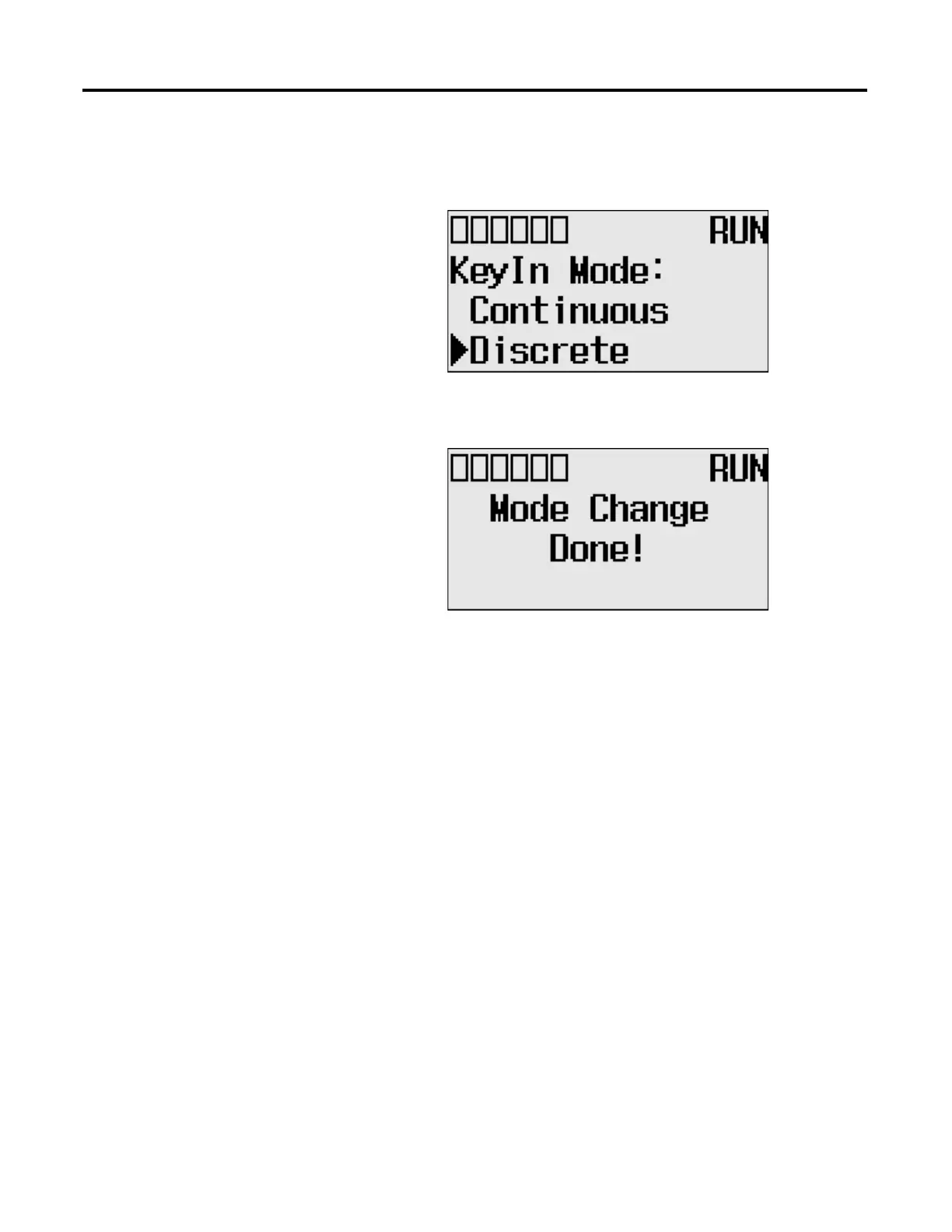

6. The Key In Mode Change Notification screen is displayed, as shown
below.
7. Press the ESC key to return to the Advanced Set Menu screen, as shown in
step 2.
Using Communications
Toggle Functionality
The MicroLogix 1400 provides the Communications Toggle Functionality,
which allows you to change from the user-defined communication configuration
to the default communications mode and back to the user defined
communication configuration on Channel 0. See Using the Communications
Toggle Functionality on page 60 for more information on this feature.
Ethernet Network
Configuration
Viewing Ethernet Status
The Ethernet configuration screen of the LCD displays the MAC and IP
addresses assigned to the controller.
Follow these steps to view the Ethernet configuration for your controller.
To Next Page
