Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 15

Install Your Controller Chapter 2

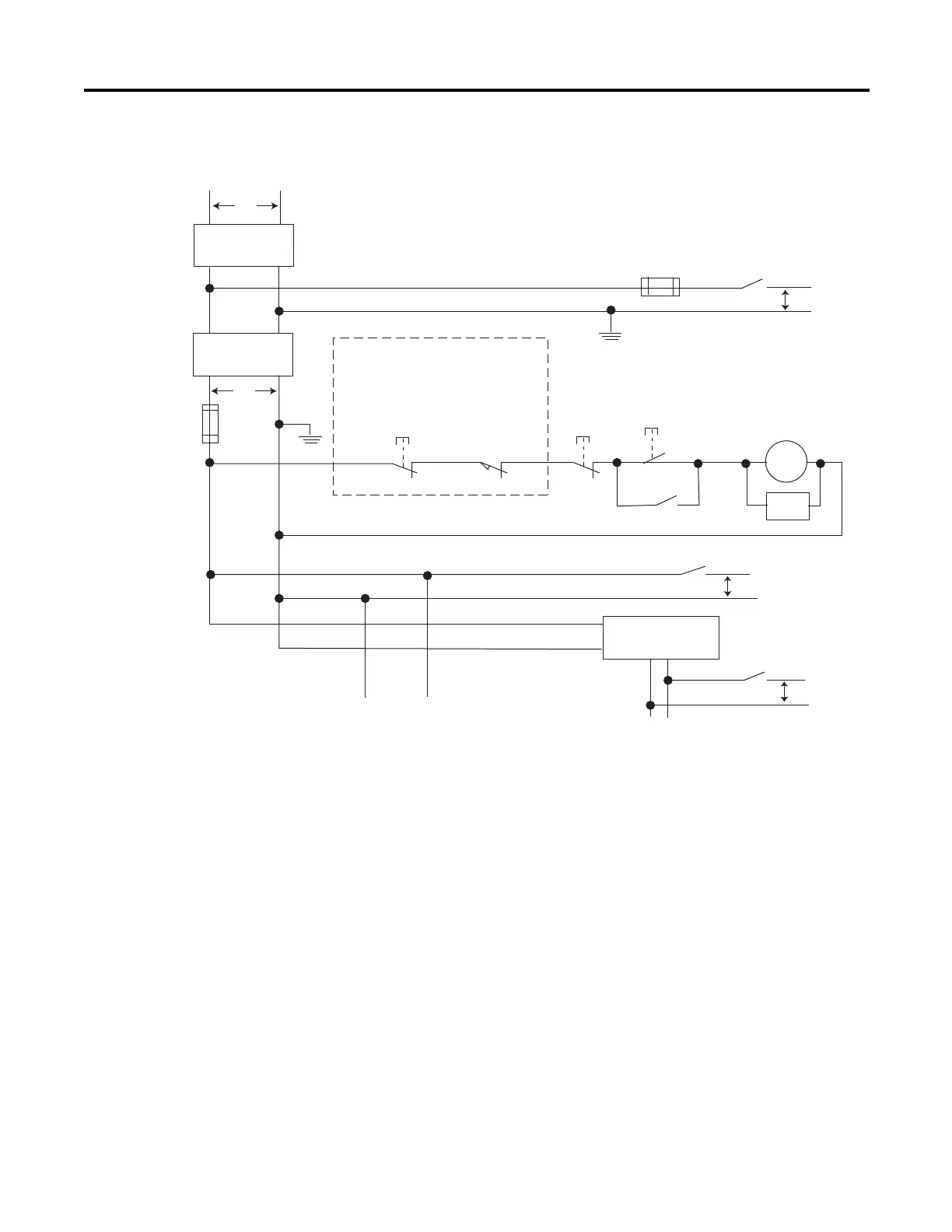

Schematic (Using IEC Symbols)

Disconnect

Isolation

Transformer

Emergency-Stop

Push Button

Fuse MCR

230V AC

I/O

Circuits

Operation of either of these contacts will

remove power from the external I/O

circuits, stopping machine motion.

Fuse

Overtravel

Limit Switch

MCR

Stop Start

Line Terminals: Connect to terminals of Power

Supply (1766-L32AWA, 1766-L32AWAA,

1766-L32BWA, 1766-L32BWAA).

115V AC or

230V AC

I/O Circuits

230V AC

Master Control Relay (MCR)

Cat. No. 700-PK400A1

Suppressor

Cat. No. 700-N24

MCR

Suppr.

24V DC

I/O

Circuits

(Lo)

(Hi)

DC Power Supply.

Use IEC 950/EN 60950

X1 X2

115V AC

or 230V AC

Line Terminals: Connect to 24V DC terminals of

Power Supply (1766-L32BXB, 1766-L32BXBA)

44564

Default Chapter3
- Firmware Revision History3
Summary of Changes3
