84 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015

Chapter 4 Communication Connections

Ethernet Connections

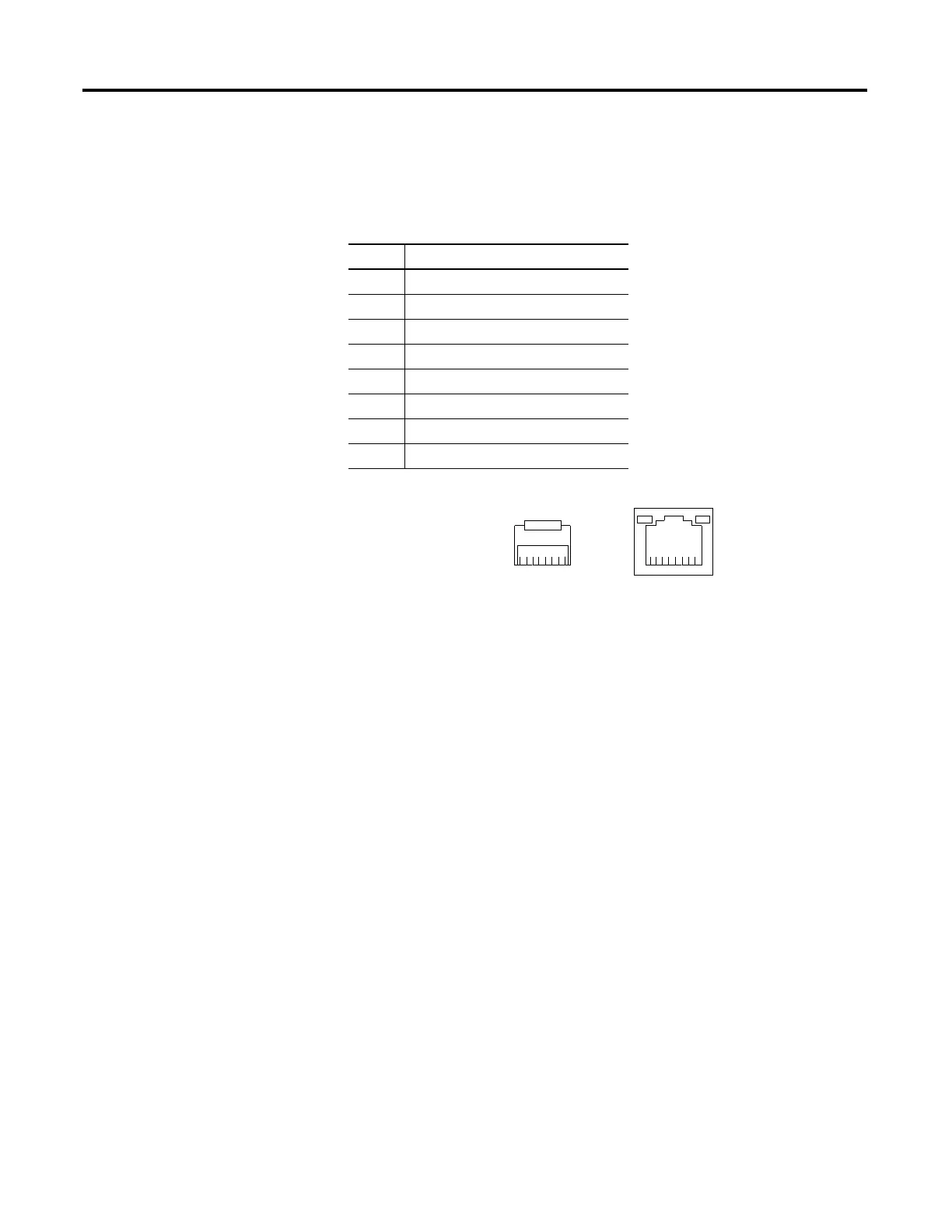

The Ethernet connector, Channel 1, is an RJ45, 10/100Base-T connector. The

pin-out for the connector is shown below.

Pin Pin Name

1Tx+

2Tx-

3Rx+

4 not used by 10/100Base-T

5 not used by 10/100Base-T

6Rx-

7 not used by 10/100Base-T

8 not used by 10/100Base-T

TIP

For more information on using ethernet cables with MicroLogix 1400,

see.

8 7 6 5 4 3 2 11 2 3 4 5 6 7 8

End view of RJ 45 Plug Looking into a RJ45 Jack
