228 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015
Appendix F MicroLogix 1400 Distributed Network Protocol (DNP3)

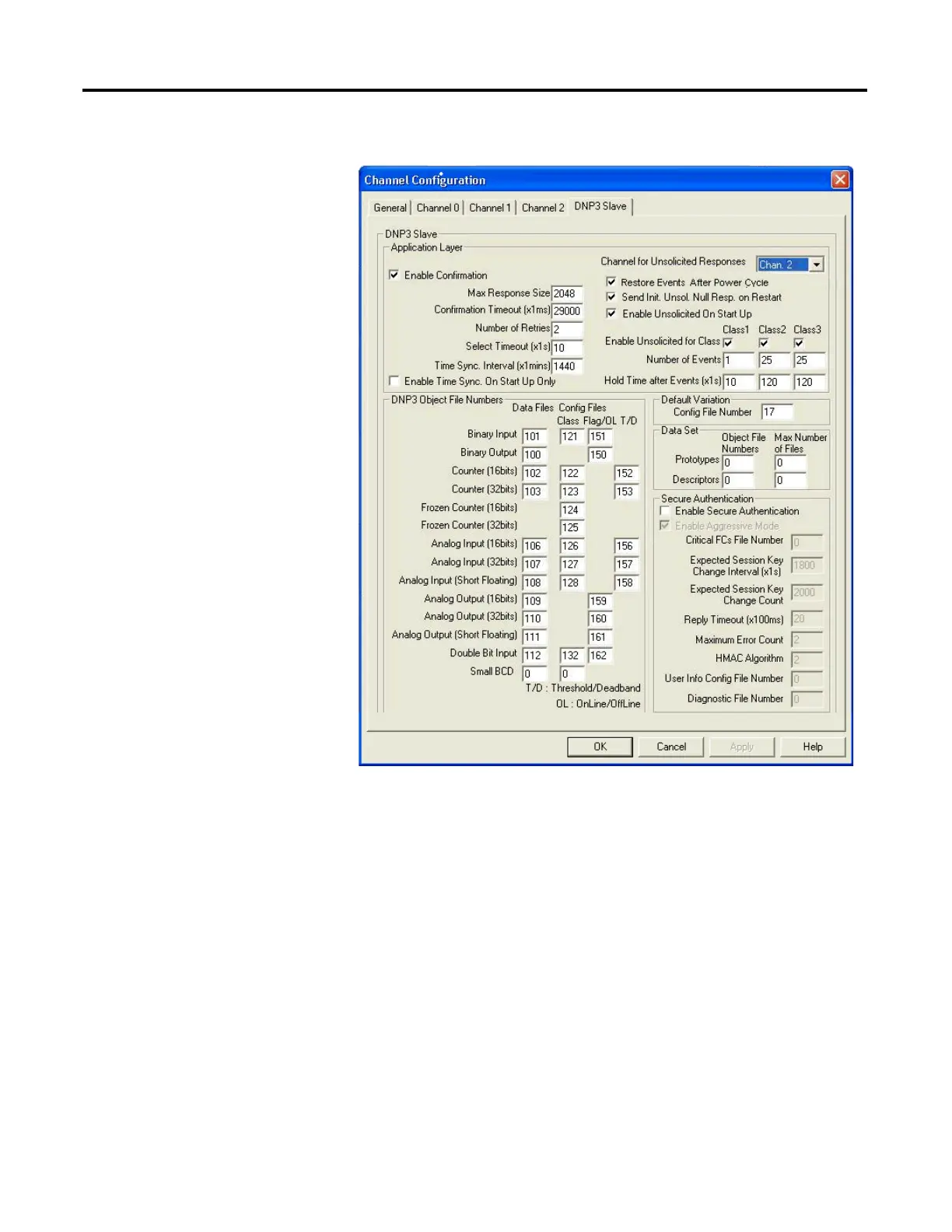

For the MicroLogix 1400 Series B controllers, you can see the following tabs.
DNP3 Slave configuration is shared by Channel 0, Channel 1 and Channel 2
ports if Channels 0, 1 and 2 are configured for DNP3 protocol. Any changes in
the DNP3 Slave configuration tab will affect all channels.
Channel 0 and Channel 2 Link Layer Configuration Parameters
Driver
This selection should be set to DNP3 Slave to communicate with DNP3
protocol.
