Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 77
Communication Connections Chapter 4

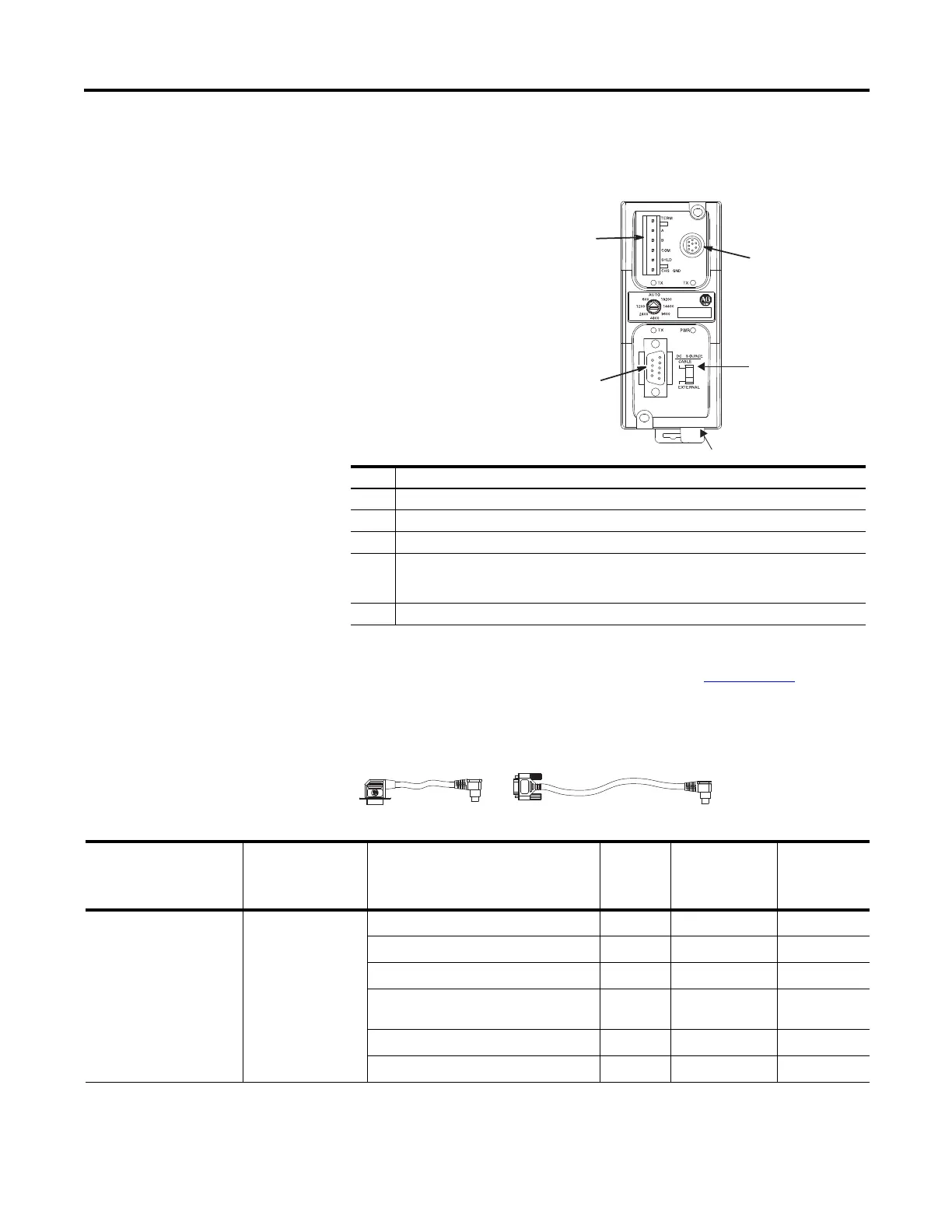

The following figure shows the external wiring connections and specifications of
the AIC+.
For additional information on connecting the AIC+, refer to the Advanced
Interface Converter (AIC+) User Manual, publication 1761-UM001
.
Cable Selection Guide
Item Description
1 Port 1 - DB-9 RS-232, DTE
2 Port 2 - mini-DIN 8 RS-232 DTE
3 Port 3 - RS-485 Phoenix plug
4 DC Power Source selector switch
(cable = port 2 power source,
external = external power source connected to item 5)
5 Terminals for external 24V DC power supply and chassis ground
AIC+ Advanced Interface Converter
(1761-NET-AIC)
3
2
4
5
1
1761-CBL-PM02
(2)
1761-CBL-AP00
(2)
44600
Cable Length Connections from to AIC+ External Power
Supply
Required
(1)
Power
Selection
Switch
Setting
(1)
1761-CBL-AP00
(2)
1761-CBL-PM02
(2)
45 cm (17.7 in.)
2 m (6.5 ft)
SLC 5/03 or SLC 5/04 processors, ch 0 port 2 yes external
MicroLogix 1000, 1200, or 1500 ch 0 port 1 yes external
MicroLogix 1400 ch 2 port 2 yes external
PanelView 550 through NULL modem
adapter
port 2 yes external
DTAM Plus / DTAM Micro port 2 yes external
PC COM port port 2 yes external
(1)
External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
(2)
Series C or later cables are required.
