352 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015
Appendix G Connecting to Networks via Ethernet Interface

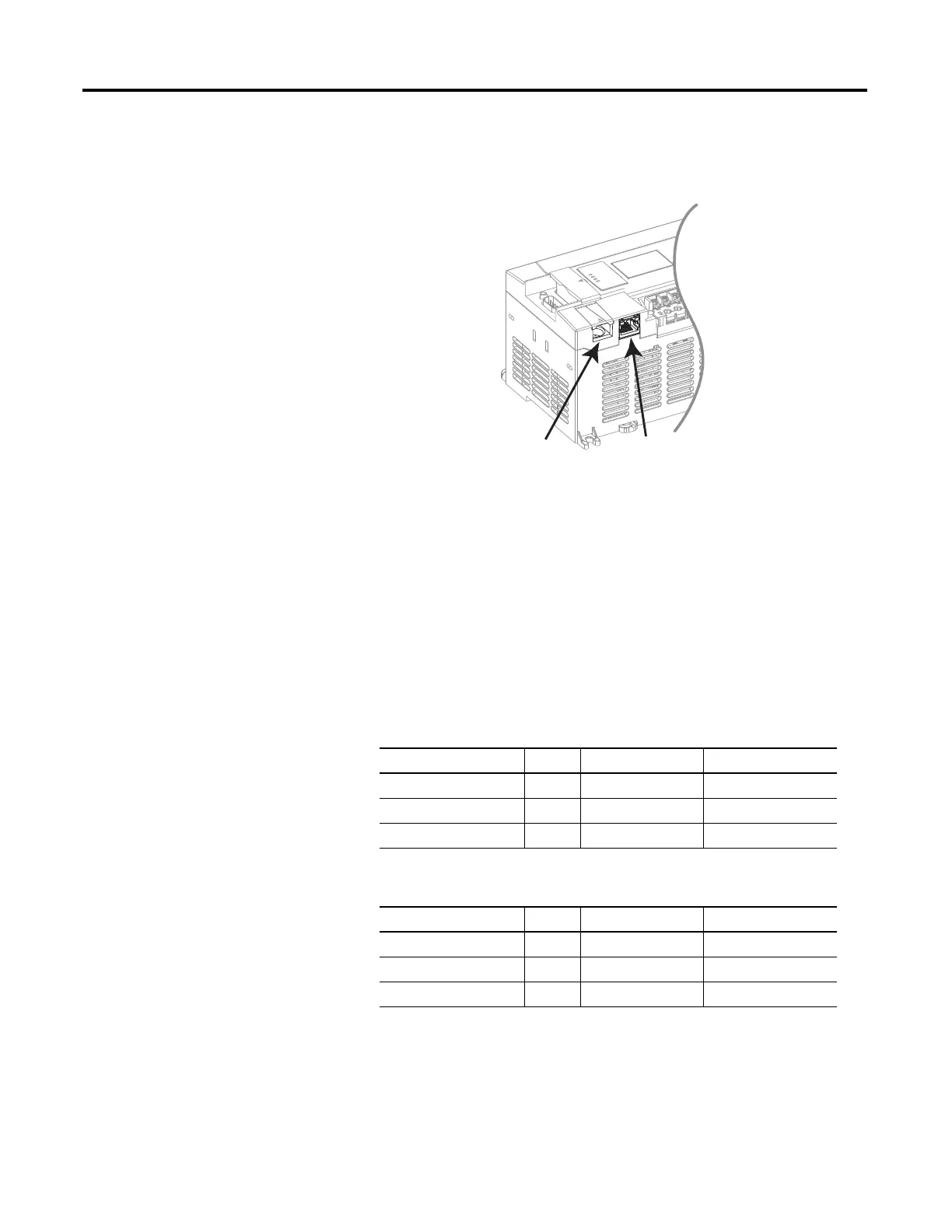

The MicroLogix 1400 supports Ethernet communication via the Ethernet
communication channel 1 shown in the drawing below.
MicroLogix 1400
Performance
Considerations
Actual performance of an MicroLogix 1400 controller varies according to:
• size of Ethernet messages.
• frequency of Ethernet messages.
• network loading.
• the implementation of and performance of your processor application
program.
Channel 1
Ethernet
(10/100Base-T)
Channel 0
RS-232/485
(DH485, DF1, or ASCII)
44606
Optimal Performance: Micrologix 1400 controller to Micrologix 1100 Series B
OS FRN 4 controller (2-node Ethernet network)
Operation Words MSG per Second Words per Second
Single Typed Read 120 20
Single Typed Reads 20 20 400
Single Typed Reads 100 20 2000
Optimal Performance: MicroLogix 1400 controller to RSLinx
Operation Words MSG per Second Words per Second
Single Typed Read 125 25
Single Typed Reads 20 25 500
Single Typed Reads 100 25 2,500
