13. Specifications

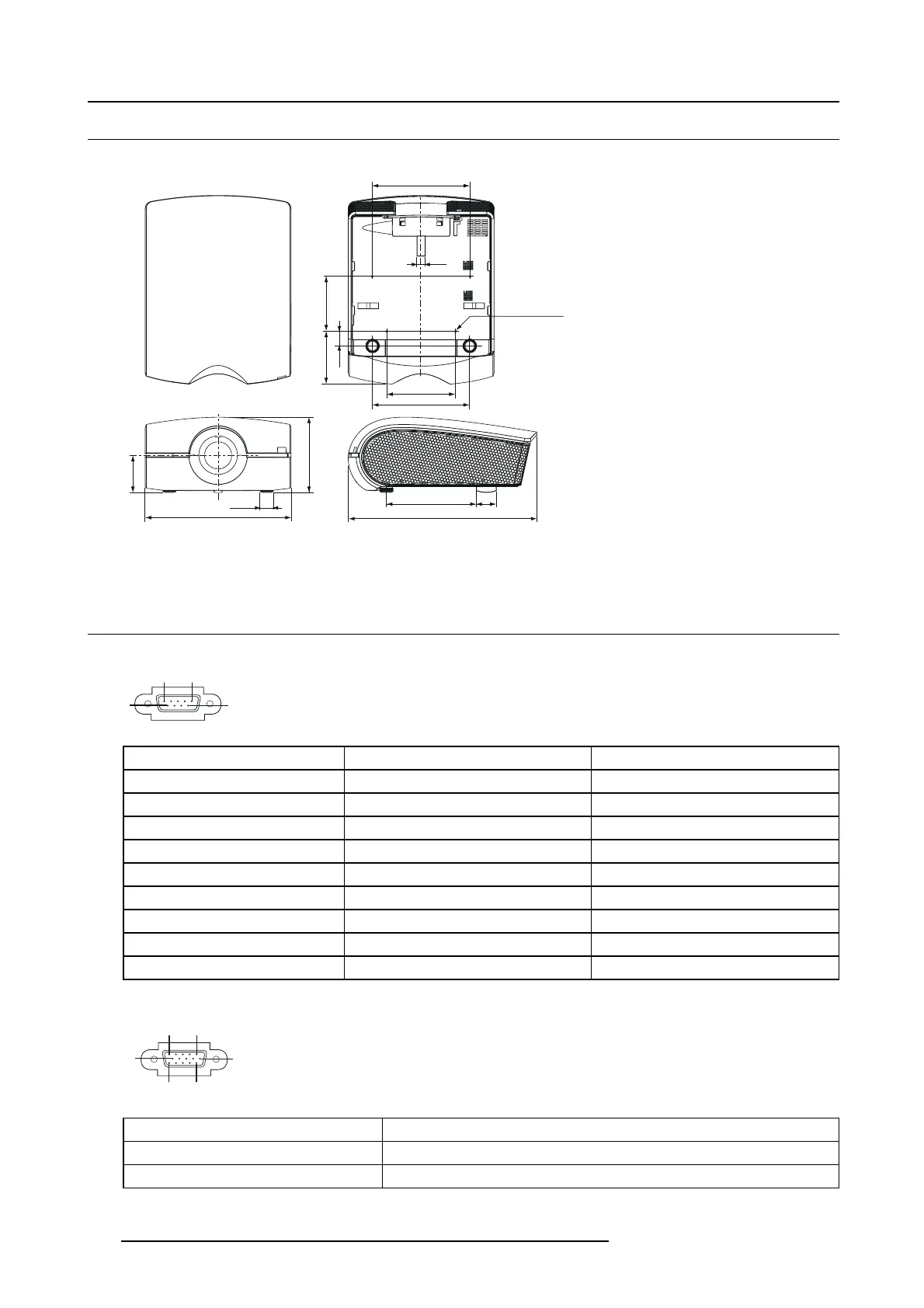

13.8 Dimensions
Overview
510
263
119 *
660
342
169
51
240
340
Holes for hanger
(M4 Depth 10 : 4 places)
192
Ø46.6
30
314 70
Image 13-1
* = factory defaults
13.9 Connectors
SERIAL IN/OUT (D-SUB 9-pin) 5 1
15
6
9
Image 13-2
Pin No. Nam e
I/O
1
--
2TXD IN
3RXD
OUT
4
--
5
GND
-
6
--
7
--
8
--
9
--
COMPUTER/COMPONENT VIDEO IN-1 (Mini D-SUB 15-pin)
15
11
6
10
15
Image 13-3
Pin No.
Spec
1
R(RED)/PR/CR
2
G(GREEN)/Ye
116 R5905597 PHXX SERIES 20/05/2014

Barco PHWU-81B Specifications

General

Matrix size	0.67 \
Matrix type	DMD
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Projector brightness (economic mode)	5450 ANSI lumens
Focal length range	- mm
Lamp power	350 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
I/O ports	SDI
Noise level	44 dB
Noise level (economic mode)	39 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	910 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	690 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 90 %

Weight and Dimensions

Depth	660 mm
Width	510 mm
Height	263 mm
Weight	21000 g
Package depth	840 mm
Package width	650 mm
Package height	415 mm
Package weight	26500 g
