Barco PHWU-81B User Manual

B. Optional lens H LENS 1.3-1.8
B. OPTIONAL LENS H LENS 1.3-1.8
CAUTION: Lens m ounting must be performed by service personnel.
B.1 Lens mounting procedure
Preparation
Be s ure to turn off the projector and unplug the pow er cord from the wa ll outlet before moun ting the
option lens.
When you have any inquiries, contact your dealer.
How to mount
1. Remove the lens cover.
M3 x 8
W
O
O
L
C

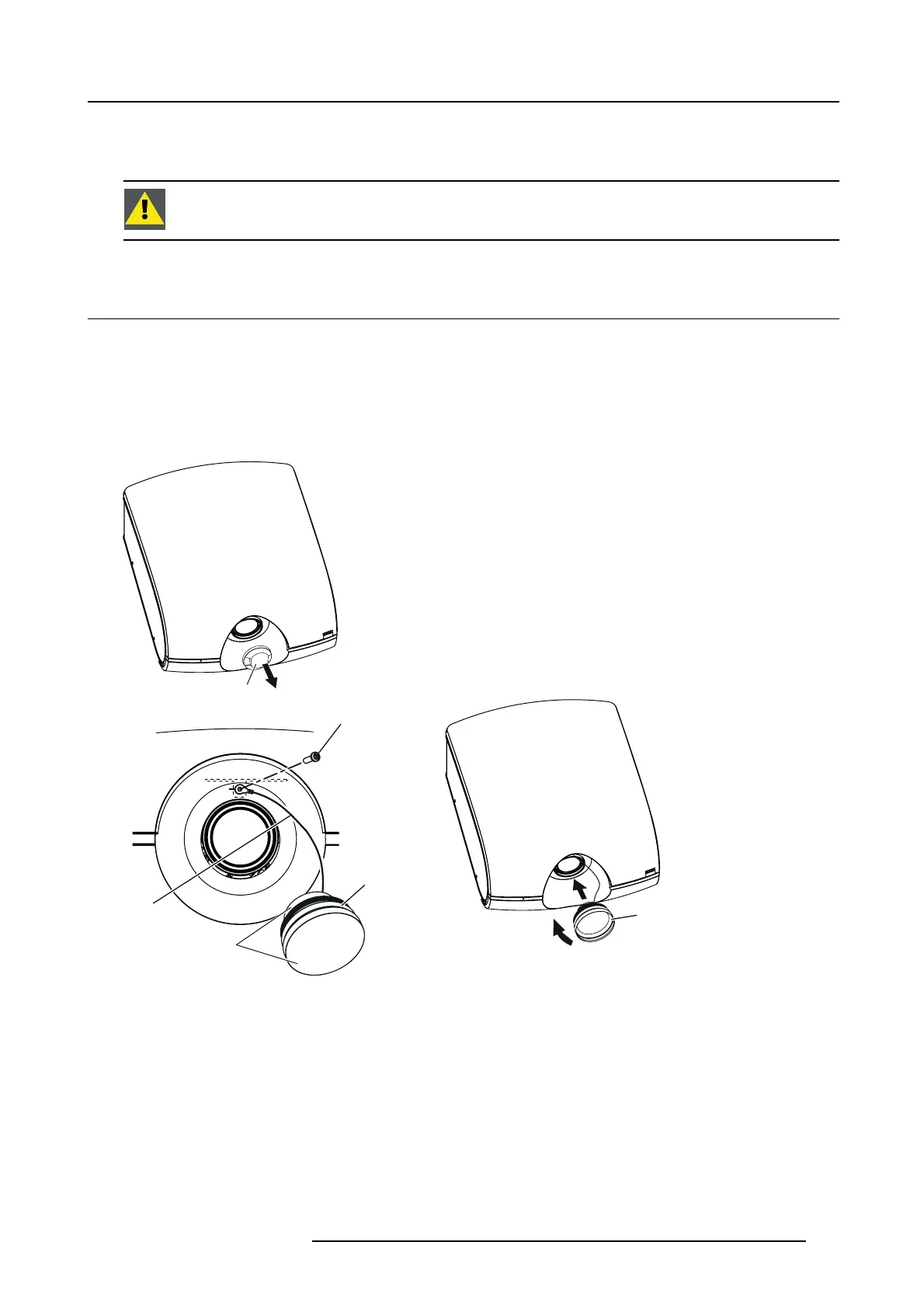

Image B-1
L Lens cover
W Wire and eyelet
C Lens caps
O option lens
2. Fit the wire and ey elet of the option lens to the projector using the attached s crew.
This prevents the option lens from dropping.
3. Remove the lens caps of the option lens.
4. Mount the option lens to the standard lens turning it cloc kwise.
Note: Protect your eyes and face from the s winging wire w hen mo unting the option lens.
R5905597 PHXX SERIES 20/05/2014
127

Barco PHWU-81B Specifications

General

Matrix size	0.67 \
Matrix type	DMD
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Projector brightness (economic mode)	5450 ANSI lumens
Focal length range	- mm
Lamp power	350 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
I/O ports	SDI
Noise level	44 dB
Noise level (economic mode)	39 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	910 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	690 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 90 %

Weight and Dimensions

Depth	660 mm
Width	510 mm
Height	263 mm
Weight	21000 g
Package depth	840 mm
Package width	650 mm
Package height	415 mm
Package weight	26500 g
