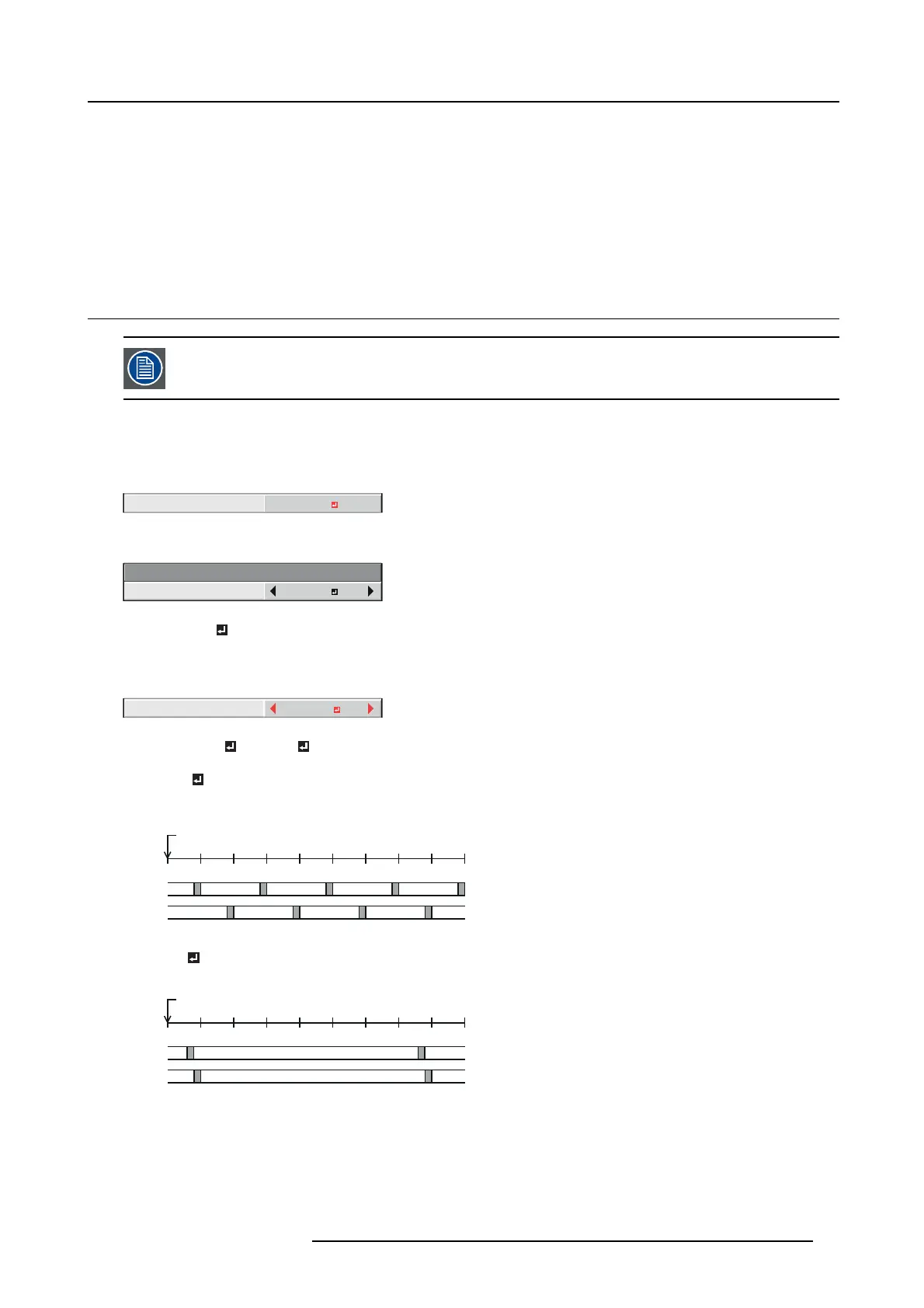

8. Lamp relay
8. LAMP RE LAY
Overview
Using the lamp relay function, you can project images continuously. The lamp relay function automatically rests or switches the
lamps. The lamp relay is performed when LAMP SELECT in the INSTA LLAT ION 1 menu is set to DUAL or S INGLE in the AD -
VANCED menu of the OSD Lite menu.
8.1 Setting the lamp relay interval, LAM P SELECT is set to DUAL
Either of the lam ps is autom atically put to rest.
How to set
1. Display the INSTALLATION 1 menu.
2. Select LAMP SELECT by pressing the ▲ or ▼ key.
LAMP SELECT
DUAL
Image 8-1
3. Press the ENTER key.
LAMP SELECT
LAMP SELECT
DUAL
Image 8-2
4. Select DUAL by pressing the ◄ or ► key.
5. Press the ENTER key.
6. Select LAMP RELAY by pressing the ▲ or ▼ ke y.
LAMP RELAY
1H/24H
Image 8-3
7. Select 1H/24H or 2H/1W by pressing the ◄ or ► ke y.
1H/24H
Select this se tting whe n the lamp is operated at a specified time of the day. During the continuous
projection, LAMP 1 or LAMP 2 is automatically turned o ff for 1 hour in 24 hours. After the interval is set,
the lamps are turned off for 1 hour alternately at the specified interval.
Illuminating
O
LAMP 1
LAMP 2
1
2 3 4 5 6 7 8 (days)
At the time of power-on or menu setting
Image 8-4
2H/1W
During the con tinuous projection, LA MP 1 or LA MP 2 is automatically turned off for 2 hours in a week.
After the interval is s et, the lam ps are turned off for 2 hours alternately at the specified interval.
Illuminating
O
LAMP 1
LAMP 2
1
2 3 4 5 6 7 8 (days)
At the time of power-on or menu setting
Image 8-5
8. Press the ENTER key.
R5905597 PHXX SERIES 20/05/2014
81
