5. Advanced menu
5.4 Installation 1 m enu
Overview
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
LAMP MODE
LAMP SELECT
STANDARD
1H/24H
LOW
OFF
STANDARD
DUAL
LAMP RELAY
HIGH ALTITUDE MODE
STANDBY MODE
IMAGE REVERSE
LENS LOCK
ENTER
GEOMETRY
ENTER
TEST PATTERN
ENTER
SPLIT
ENTER
AUTO POSITION
ENTER
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
LENS LOCK
LENS SHIFT LOCK
ZOOM/FOCUS LOCK
LENS SHIFT RESET
OFF
OFF
OK

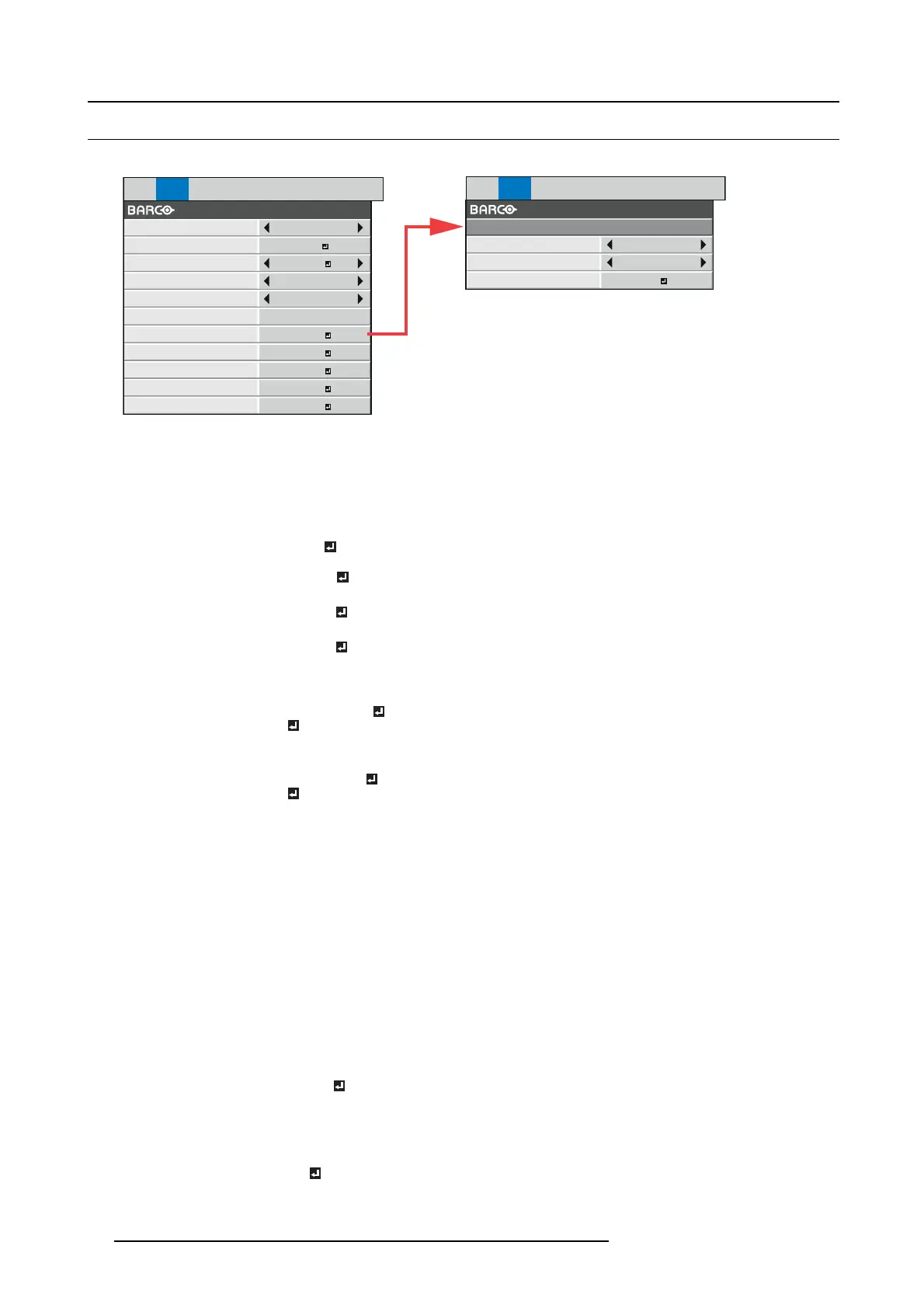

Image 5-14
Item
Setting
Function
LAMP MODE STAN DARD Select to optimize the settings automatically dep ending o n the input
signal. (Select this option for normal use.)
LOW Select to moderate the intensity of the lamp. The operating sound is
reduced and the lamp lifetime becomes longer.
LAMP SELECT
DUAL
LAMP 1 and LAMP 2 illuminate.
SINGLE
The lamp with shorter op eration time is automatically selected at
power‑on.
LAMP 1
LAMP 1 illuminates. (When it is broken or dead, LAM P 2 illuminates
automatically.)
LAMP 2
LAMP 2 illuminates. (When it is broken or dead, LAM P 1 illuminates
automatically.)
LAMP RELAY DUAL: O FF The LAM P RELAY doesn’t work.
DUAL: 1H/24H
/2H/1W
Use to set the lamp relay interval.
SINGLE: O FF
The LAMP R E LAY doesn’t w ork.
SINGLE: 24H
/1WEEK
Use to set the lamp relay interval.
STANDB Y MODE STAND ARD Select this option when you control the projector via the LAN,
REMOTE 1 IN, and SERIAL OU T termina
l during power standby.
LOW Select this option when you don’t control the projector via the LAN,
REMOTE 1 IN, and SERIAL OUT term i
nal during power standby. This
option disables the LAN, R EM OTE 1 IN, an d S ER IAL OU T terminal
and r educes the power consumption during the power standby.
IMAGE R EVERS E OFF Select w hen viewing images from the front with the projector installed
on the floor.
MIRROR Select w hen viewing images projected from the behind of the s creen
with the projector installed on the floor.
INVERT Select when viewing ima ges projected from the behind of the s creen
with the projector installed on the c e iling.
MIRROR INVERT Select w hen viewing image s from the front with the projector installed
on the ceiling.
HIGH ALTITUDE MODE STAN DARD This projector does not support this function.
LENS LO CK
ENTER
The LENS LOCK menu is displayed for the following settings.
ZOOM/FOCUS LOCK ON / OF F Use to enable o r cancel the FOCUS LOCK and ZOO M LOCK .
LENS SHIFT LOC K ON / OFF Use to enable or canc el the LENS SHIFT LO CK.
LENS SHIFT R ES E
T
OK
Usetoresetthe
position of the lens to the factory setting.
44
R5905597 PHXX SERIES 20/05/2014

Barco PHWU-81B Specifications

General

Matrix size	0.67 \
Matrix type	DMD
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Projector brightness (economic mode)	5450 ANSI lumens
Focal length range	- mm
Lamp power	350 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
I/O ports	SDI
Noise level	44 dB
Noise level (economic mode)	39 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	910 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	690 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 90 %

Weight and Dimensions

Depth	660 mm
Width	510 mm
Height	263 mm
Weight	21000 g
Package depth	840 mm
Package width	650 mm
Package height	415 mm
Package weight	26500 g
