Barco PHWU-81B User Manual

9. Advanced features
Command
Description
Remark (Parameter)
LAMP?
Inquiry about the lamp state
1st value (1 to 5 digits): C umulative LA MP 1 operating time (This item
shows a lamp operating time (hour) calculated based on that LAMP
MODE is STANDARD.)
2nd value: 0 = Lam p off, 1 = Lamp on
3rd value (1 to 5 digits): Cumulative LAMP 2 operating time (This item
shows a lamp operating time (hour) calculated based on that LAMP
MODE is STANDARD.)
4th value: 0 = Lamp off, 1 = Lamp on
INST?
Inquiry about the available
inputs
The following value is returned. “11 12 21 22 31 32 33”
NAME? Inquiry about the projector
name
The projector name set on the NETW OR K m enu is returned.
INF1? Inquiry about the manufacturer
name
“BARCO” is returned.
INF2?
Inquiry about the model nam e
“PHWU-81B”, “PHWX-81B”, or “PHXG -91B” is returned.
INF0? Inquiry abou t other information No other information is available. No parameter is returned.
CLSS?
Inquiry about the c lass
information
“1” is returned.
This projector is fully c ompliant to the specifications of J BM IA PJLink™ Class 1. It supports all the commands defined by PJLink™
Class 1, and the compliance has been verified with the PJLink™ standard specifi cations Version 1.0.
9.5 Monitoring and control using SERIAL terminal
Overview
Using the SERIAL terminal, you can monitor and control multiple projectors collectively or individually.
For details, contact your dealer.
B
C D
D
D
AA
A
C
C

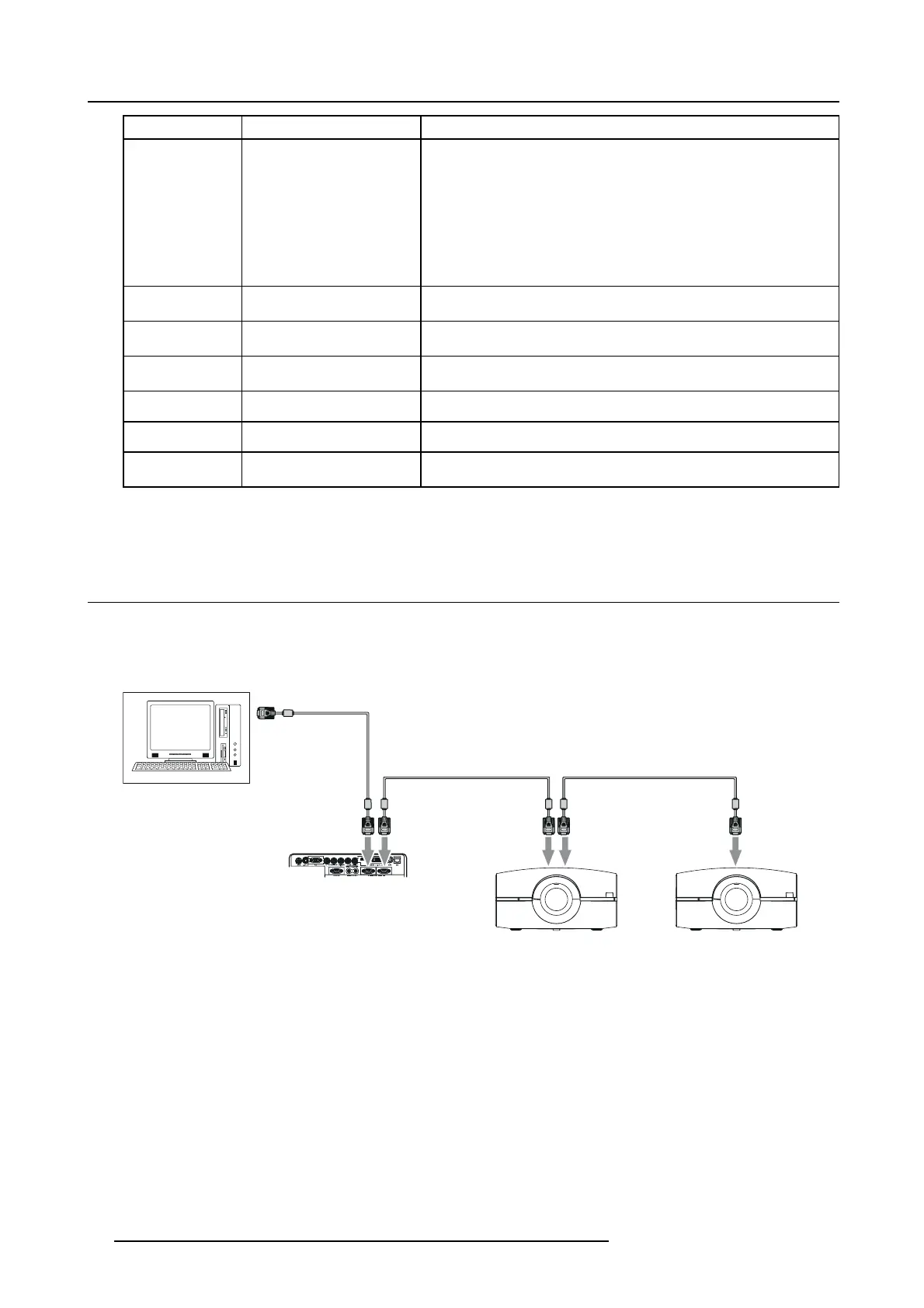

Image 9-7
A RS-232C cable (option)
B To RS-232C terminal
C ToSERIALIN
D ToSERIALOUT
See also the instruction m anuals of the devices to be connected.
Connection
Make sure t hat the power supplies of the projector and the computer are off.
1. Connect one end of a c omm ercially available R S-232C cable to the SE RIAL IN terminal on the projector to be connected to the
computer.
2. Connect the other e nd of the RS-232C cable to the serial port on the com puter.
3. Connect one end of an RS -232C cable to the SERIAL OUT terminal on the projector that is connected t o t he computer.
4. Connect the other end of the RS-232C cable to the SERIAL IN terminal on the second pro jector.
For the connection o f the second and later projectors, connect their SERIAL OU T terminals and the SE RIAL IN terminals u sing
RS-232C cables.
90
R5905597 PHXX SERIES 20/05/2014

Barco PHWU-81B Specifications

General

Matrix size	0.67 \
Matrix type	DMD
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Projector brightness (economic mode)	5450 ANSI lumens
Focal length range	- mm
Lamp power	350 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
I/O ports	SDI
Noise level	44 dB
Noise level (economic mode)	39 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	910 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	690 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 90 %

Weight and Dimensions

Depth	660 mm
Width	510 mm
Height	263 mm
Weight	21000 g
Package depth	840 mm
Package width	650 mm
Package height	415 mm
Package weight	26500 g
